Power Brake Booster Vacuum Pipe Replacement (2.0 LHU - Engine Side)

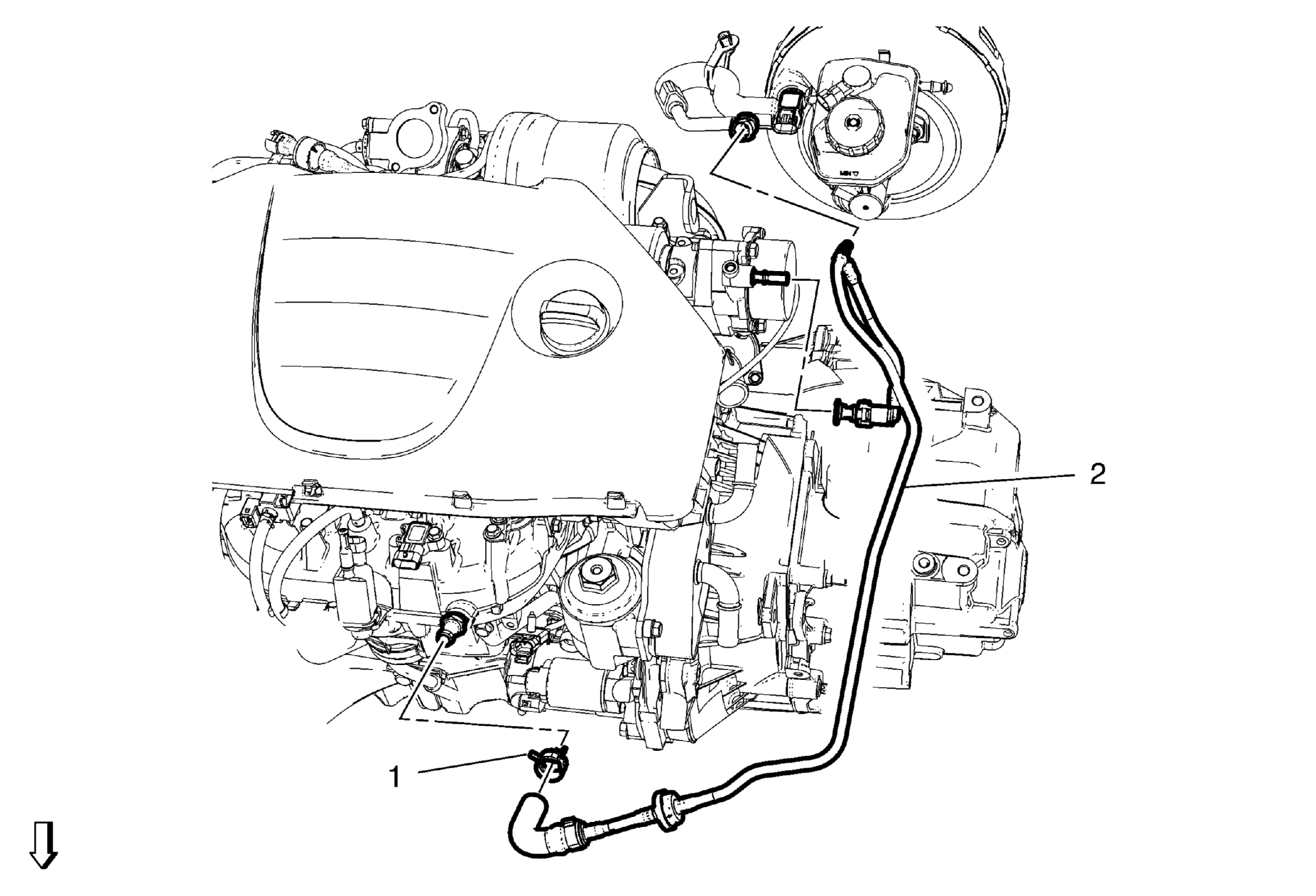

Fig 1: Power Brake Booster Vacuum Pipe (2.0 LHU - Engine Side)

GM2743766

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

1

Power Brake Booster Vacuum Hose Clamp

2

Power Brake Booster Vacuum Hose

Procedure

For connection and disconnection of the quick fittings, refer to Plastic Collar Quick Connect Fitting Service .
Disconnect the hose from the power brake booster vacuum hose - booster side.
Disconnect the hose from the power brake booster vacuum pump.
Detach the vacuum hose from intake manifold connector.
