Removal Procedure

  1. Remove the transfer case from the vehicle. Refer to Transfer Case Replacement .

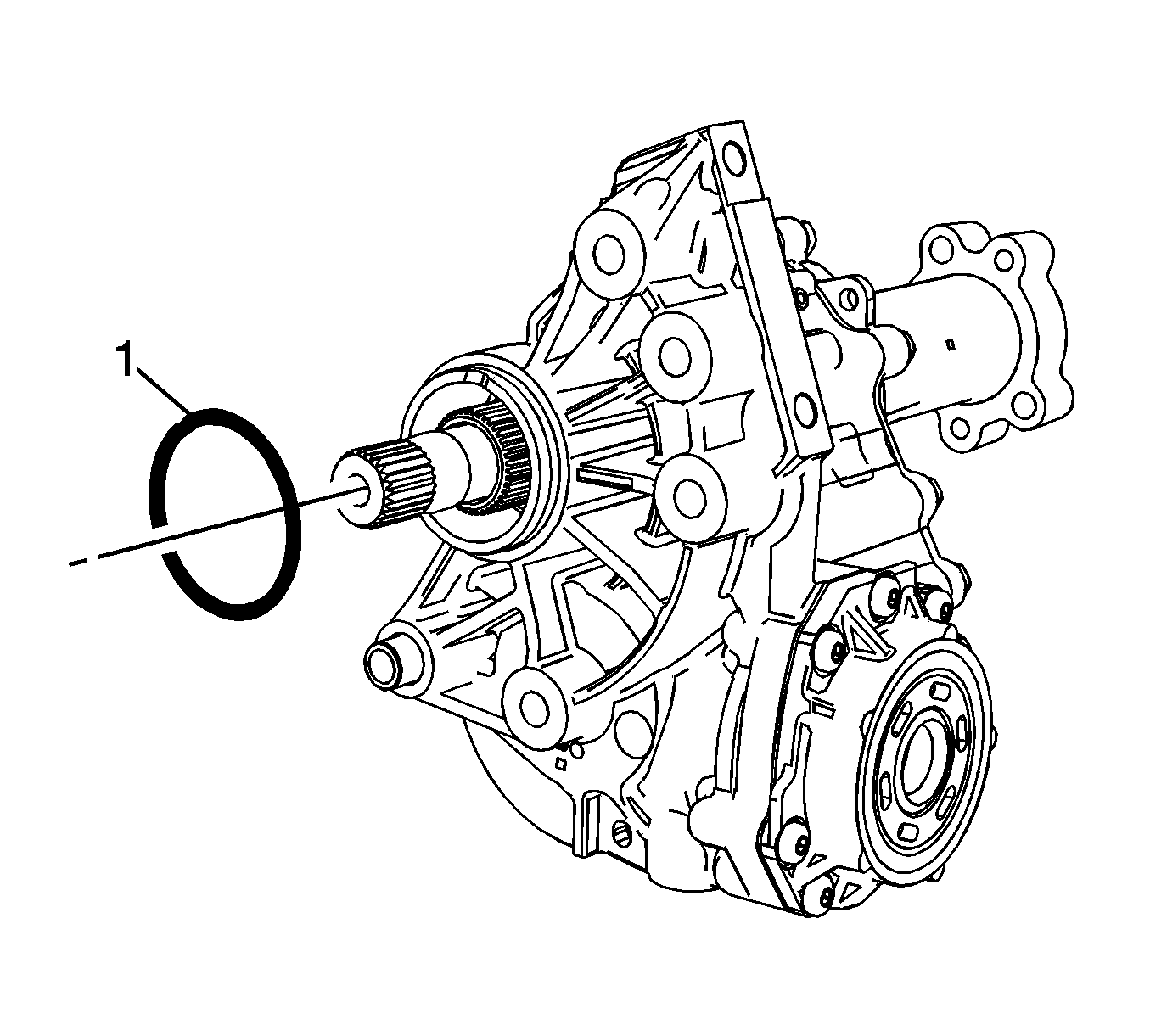

    2. Fig 1: Transfer Case-To-Transmission O-Ring
    GM2422748Courtesy of GENERAL MOTORS COMPANY
  2. Remove and DISCARD the transfer case-to-transmission seal (1).
