Removal Procedure

  1. Remove the transfer case from the vehicle. Refer to Transfer Case Replacement .

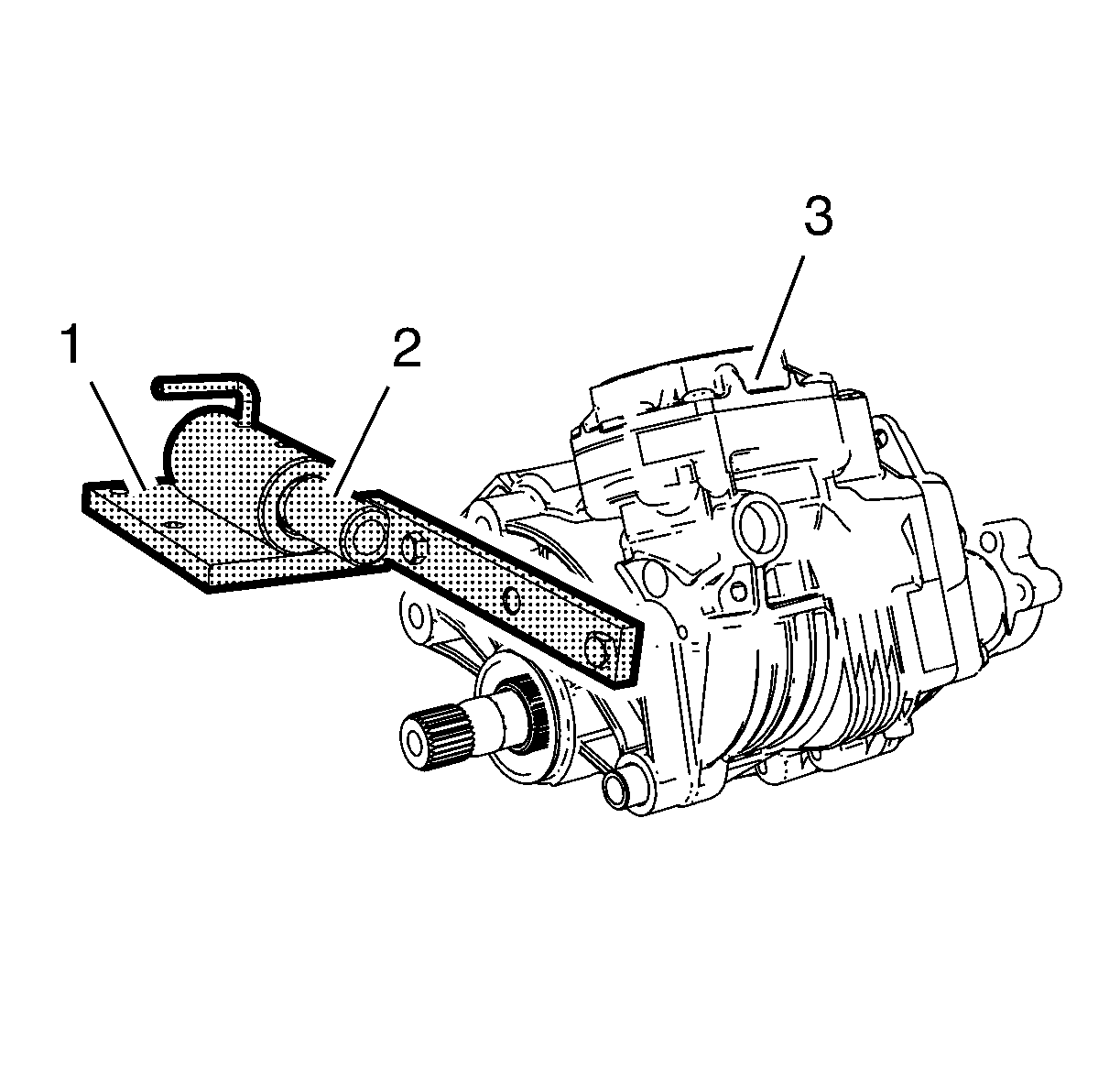

    2. Fig 1: Transmission Bracket, Transfer Case And Holder
    GM2372719Courtesy of GENERAL MOTORS COMPANY
  2. Secure the transfer case (3) in DT-113-2-A  holder (1), using the DT-622-A  bracket (2).

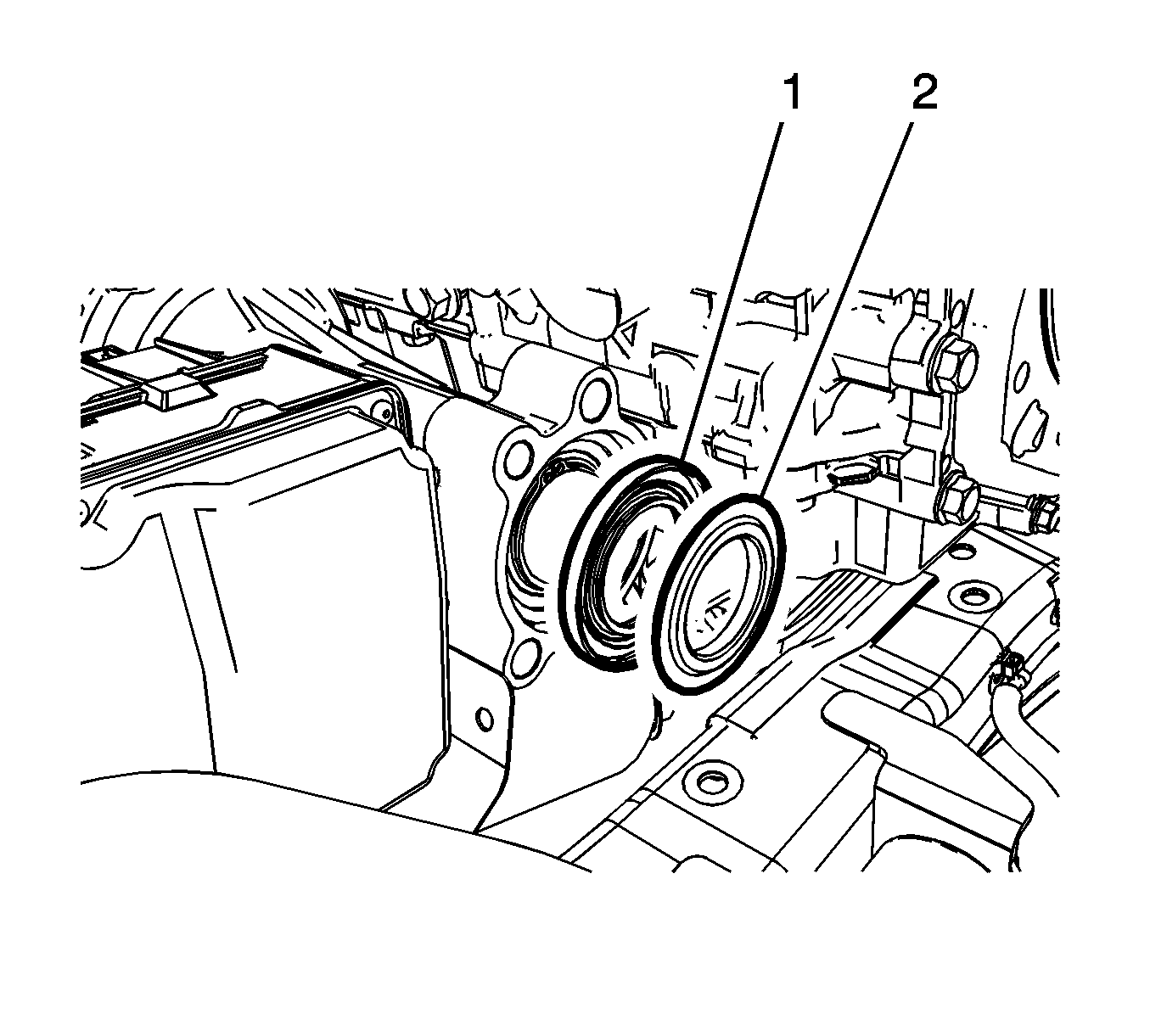

    3. Fig 2: Wheel Drive Shaft Seal And Dust Deflector
    GM3458381Courtesy of GENERAL MOTORS COMPANY
  3. Remove the dust deflector (1) first using a prying type tool and then remove the seal (2) by installing a sheet metal screw into surface and removing with suitable pliers.
  4. Discard the seal assembly (1, 2).

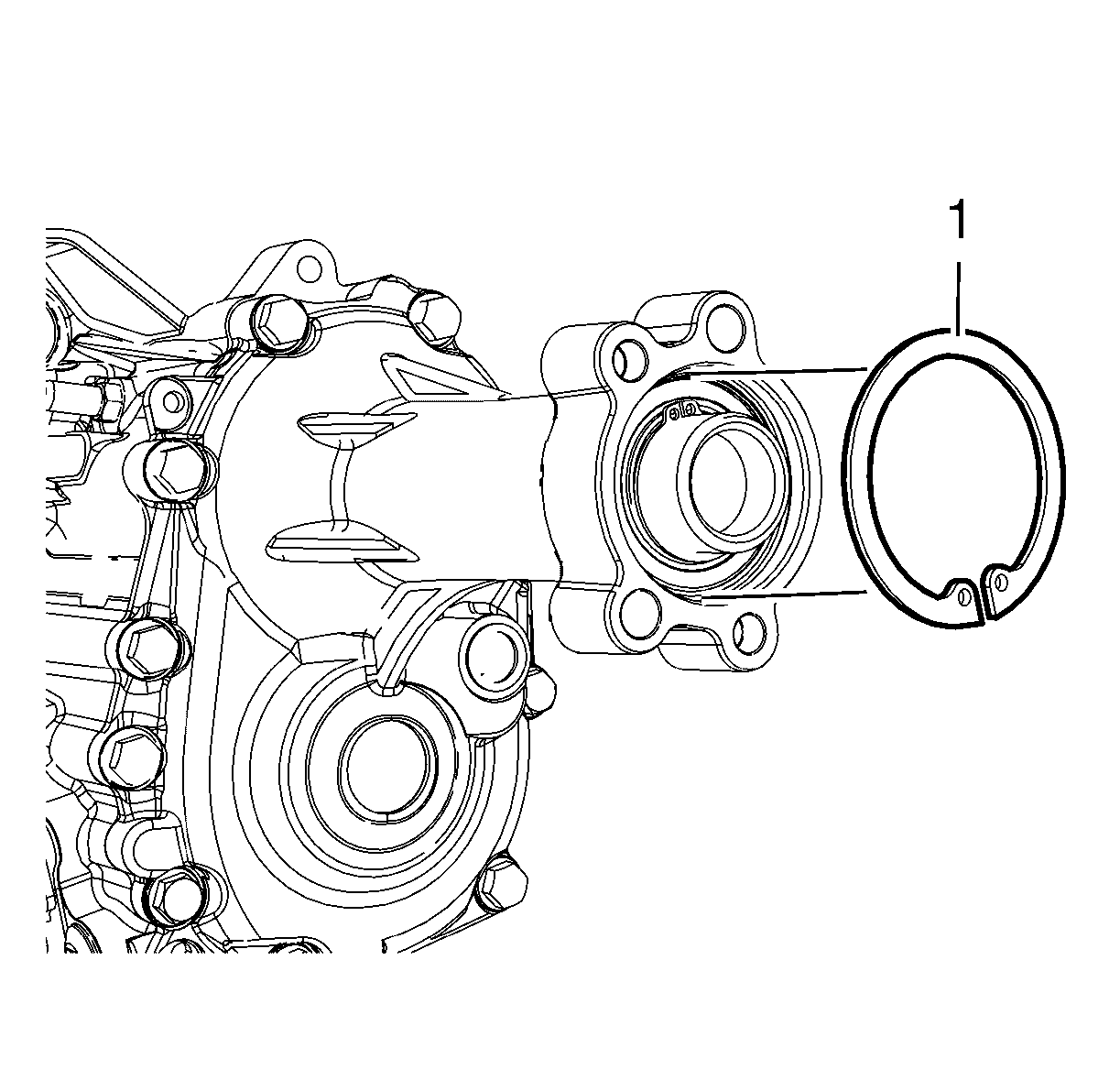

    5. Fig 3: Intermediate Shaft Retaining Ring
    GM2192245Courtesy of GENERAL MOTORS COMPANY
  5. Remove the transfer case intermediate shaft retaining ring (1), using suitable snap ring pliers.

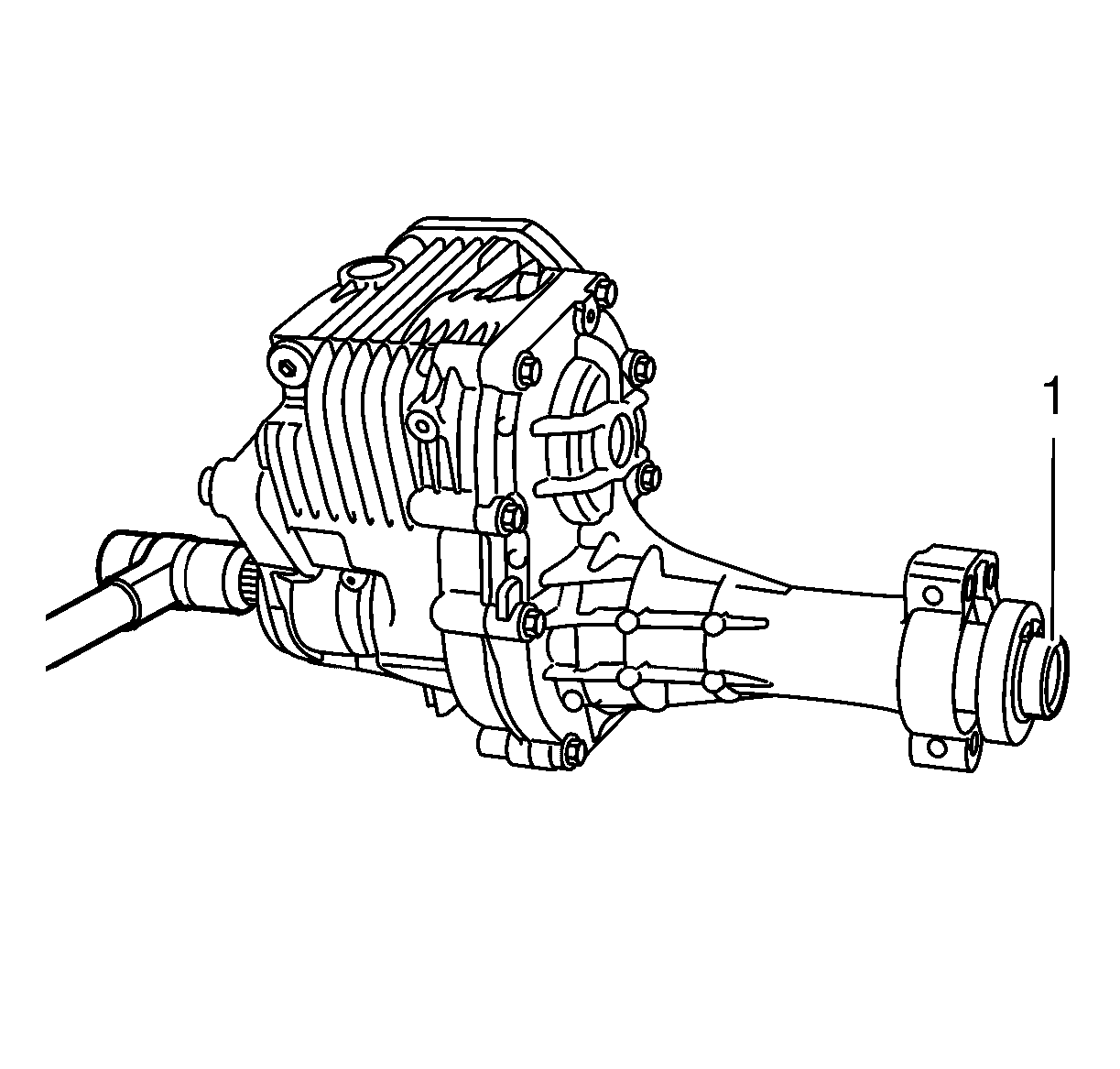

    6. Fig 4: Transfer Case Intermediate Shaft
    GM2371578Courtesy of GENERAL MOTORS COMPANY
  6. Remove the transfer case intermediate shaft (1), with bearing, using a rubber mallet.
  7. Remove the bearing, if necessary. Refer to front wheel drive intermediate shaft in Transfer Case Disassemble .
