Installation Procedure

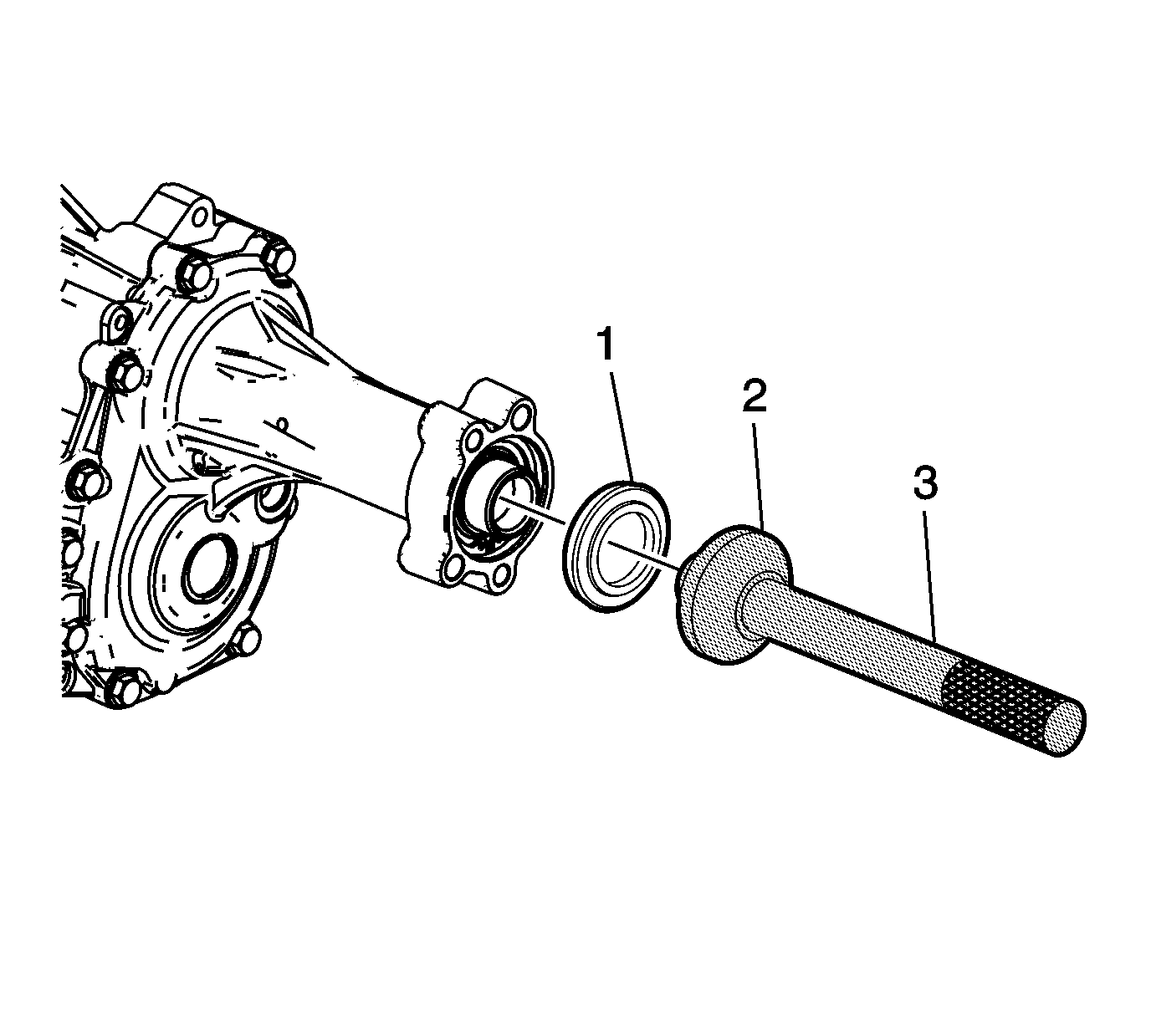

    Fig 1: Seal And Special Installer Tool
    GM2736231Courtesy of GENERAL MOTORS COMPANY
  1. Install the New seal assembly (1) using the DT-50768  seal installer (2) and J-8092  driver handle (3).
  2. Install the right wheel drive shaft. Refer to Front Wheel Drive Shaft Replacement - Right Side .
