Rear Extension Housing Removal

    Fig 1: Locating Transfer Case Rear Extension Housing Bolts
    GM2190814Courtesy of GENERAL MOTORS COMPANY
  1. Remove the transfer case rear extension housing bolts (1) from the rear extension housing (2).

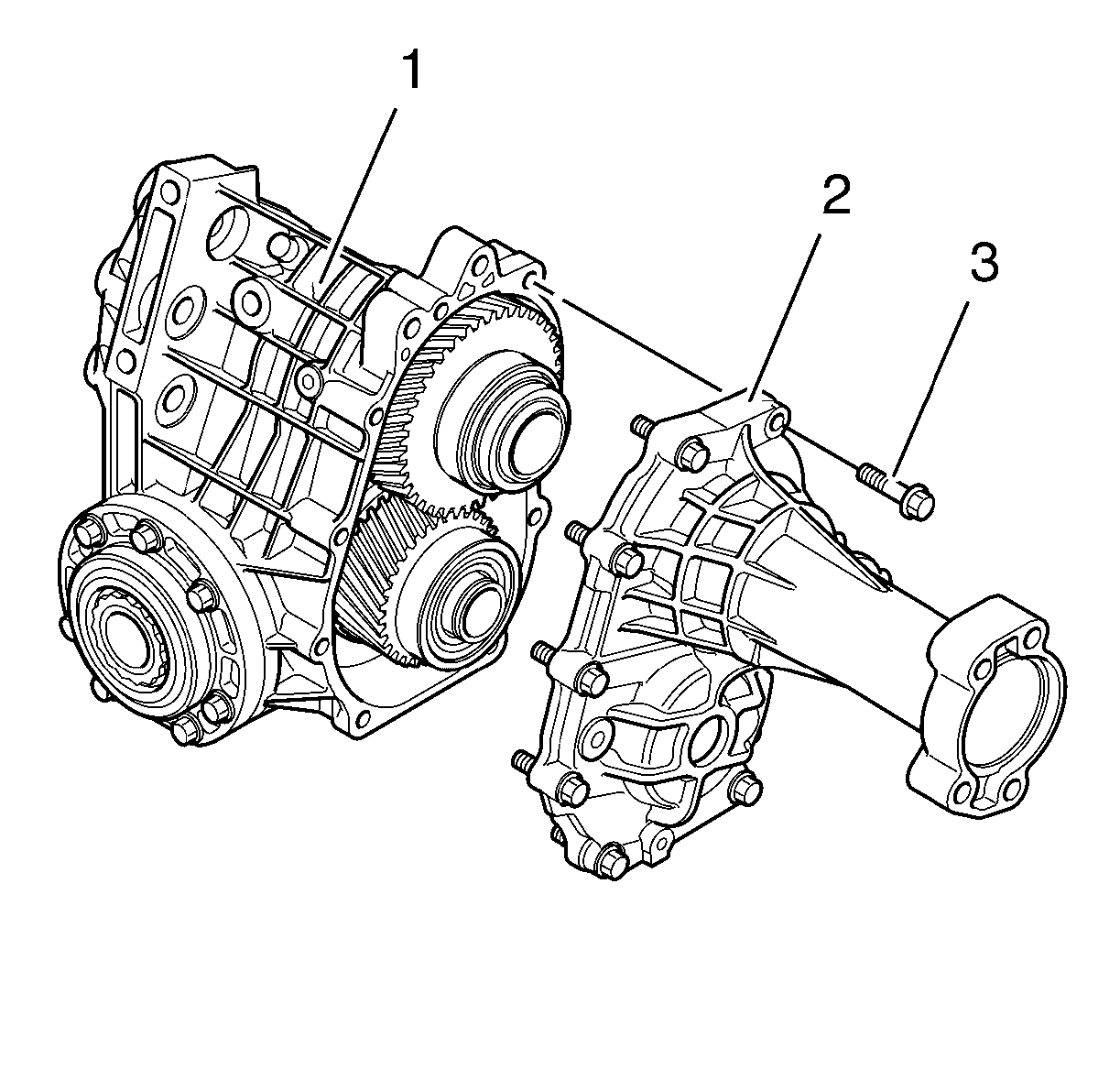

    2. Fig 2: View Of Transfer Case Housing & Rear Extension Housing
    GM2191014Courtesy of GENERAL MOTORS COMPANY
  2. Remove the rear extension housing (2) and bolts (3).
    3. Fig 3: Rear Extension Housing-To-Transfer Case Seal
    GM2534694Courtesy of GENERAL MOTORS COMPANY
  3. Remove and discard the rear extension housing-to-transfer case seal (1).
