Input Shaft and Idler Shaft Removal

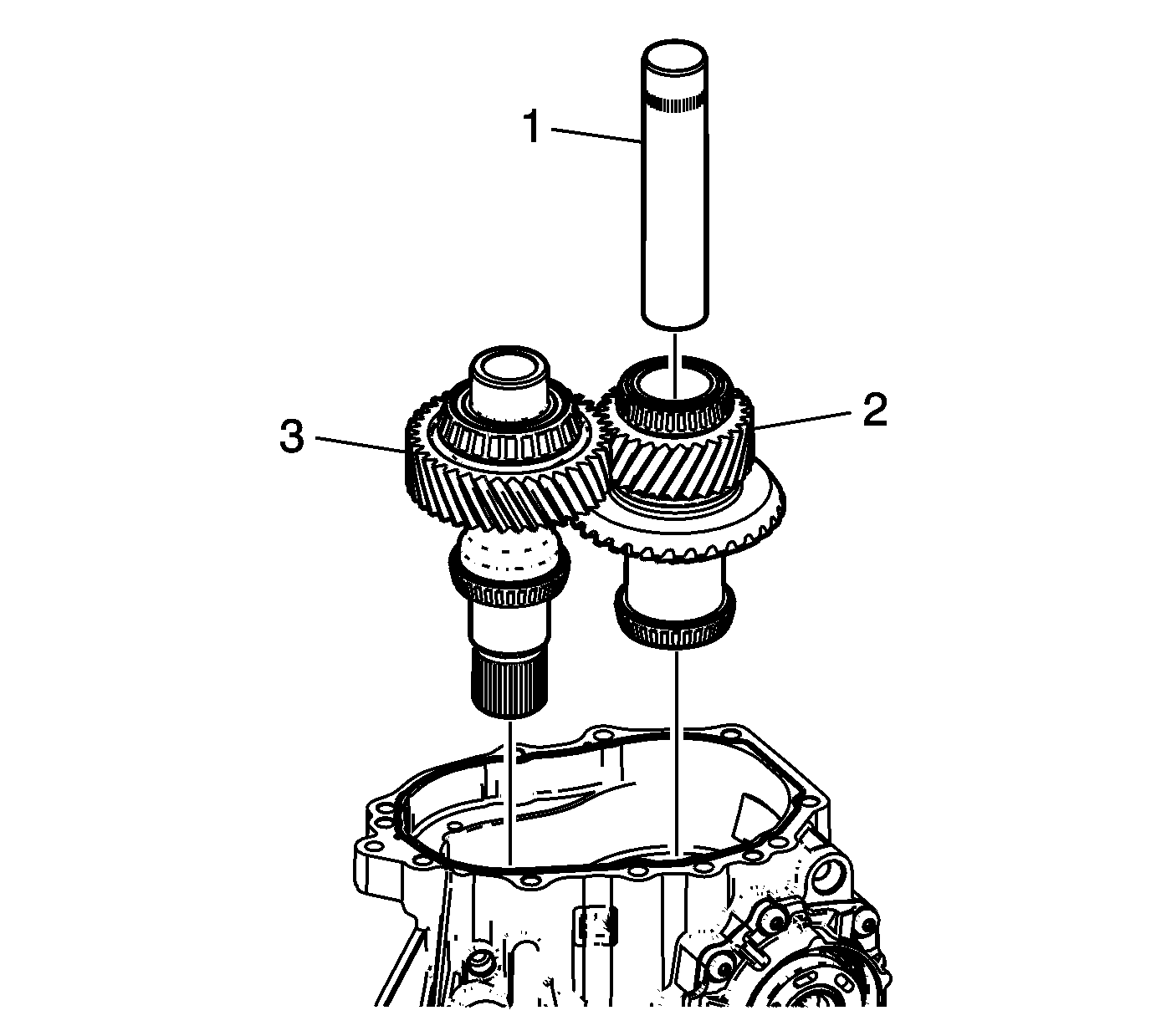

    Fig 1: Identifying Idler Gear Shaft, Input Shaft & Idler Gear
    GM2372601Courtesy of GENERAL MOTORS COMPANY
  1. Remove the input shaft (3)
  2. Remove the idler gear (2).
  3. Remove the idler gear shaft (1) - Model Dependent.
