Input Shaft Bearing Retainer Rear Seal Removal

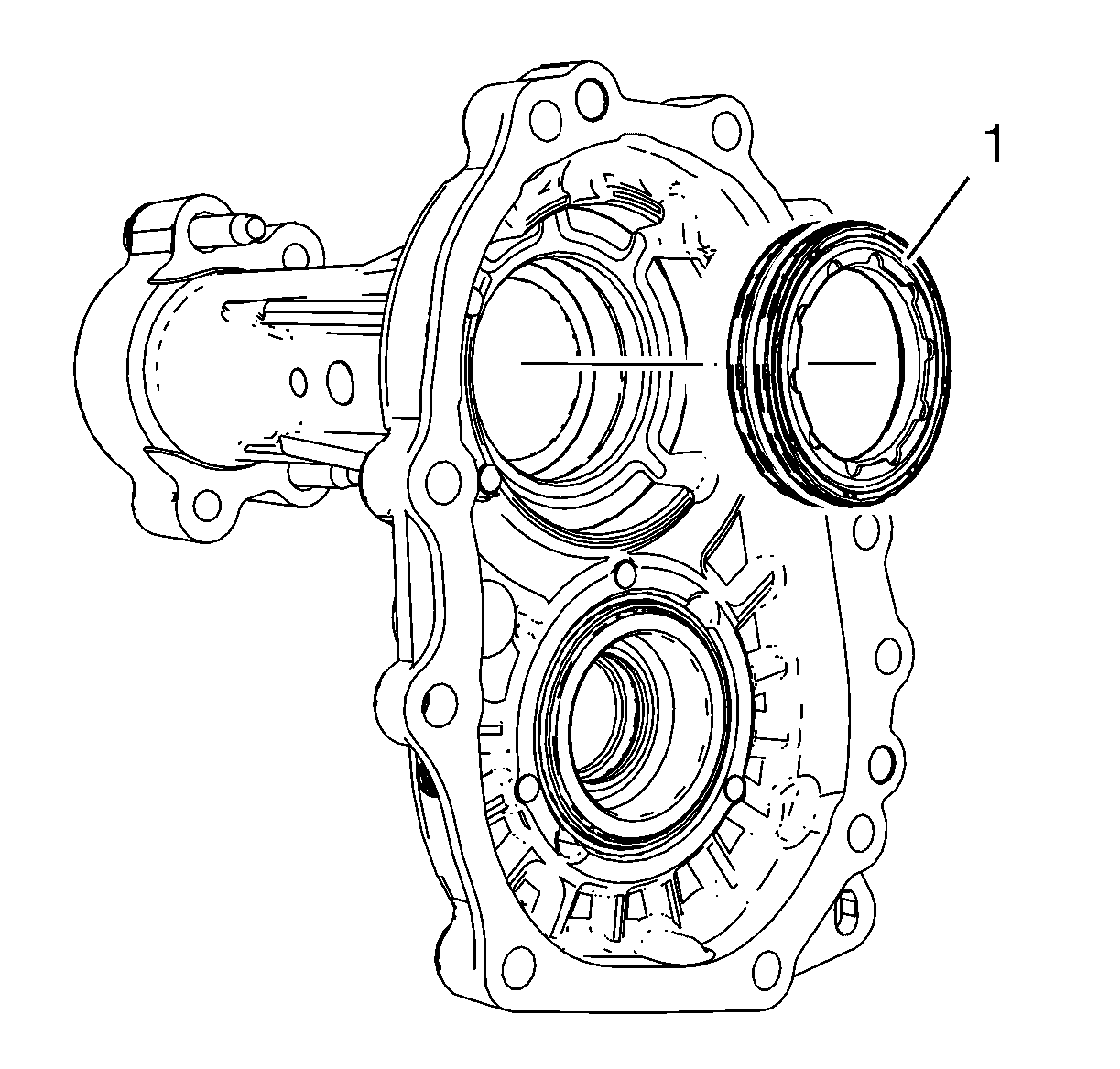

Fig 1: Identifying Transfer Case Input Shaft Rear Seal

Courtesy of GENERAL MOTORS COMPANY

NOTE:

To avoid damage to the housing, use a brass punch to remove the seal.

Remove the transfer case input shaft rear seal (1) from the rear extension housing.
