Input Shaft Bearing Retainer Front Seals Removal

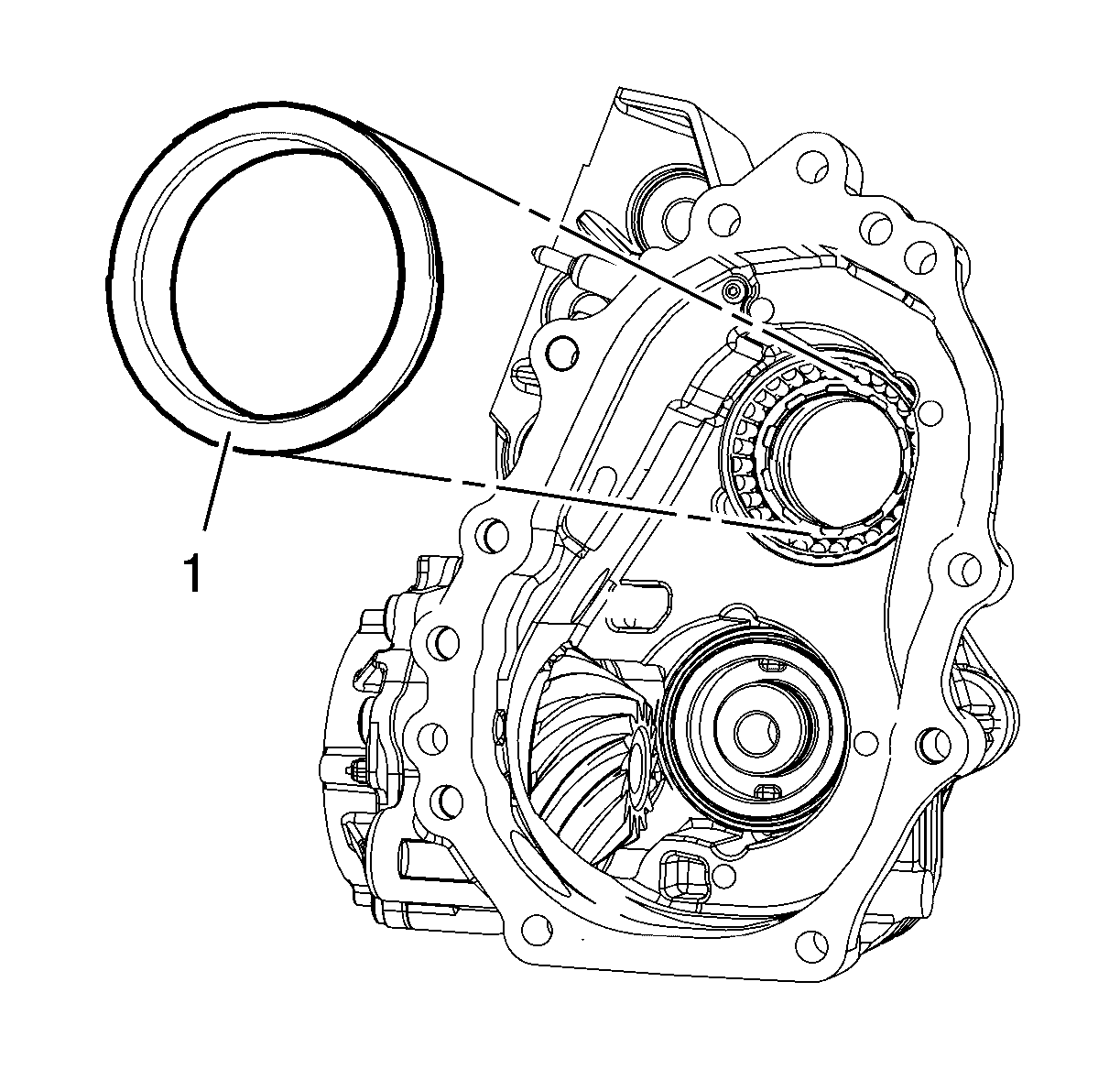

    Fig 1: Transfer Case Input Shaft Rear Seal
    GM2192263Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    There are two input shaft front seals located in the transfer case housing.

  1. Remove the transfer case input shaft front (inner) seal (1) using a suitable screw driver.

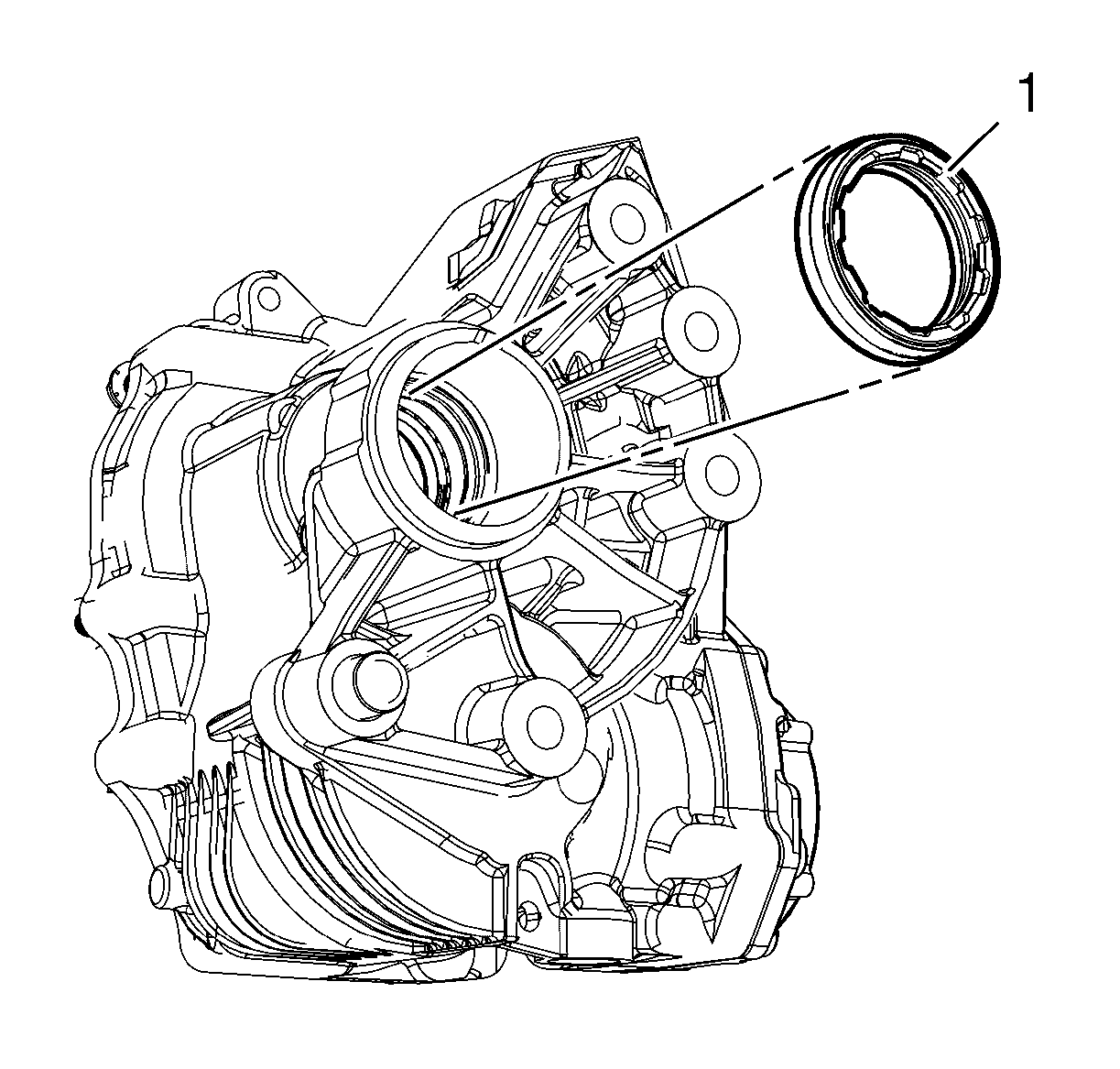

    2. Fig 2: Identifying Input Shaft Front Seal
    GM2192270Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    There are two input shaft front seals located in the transfer case housing.

  2. Remove the transfer case input shaft front (outer) seal (1) using a suitable screw driver.
