Front Wheel Drive Intermediate Shaft Seal Removal

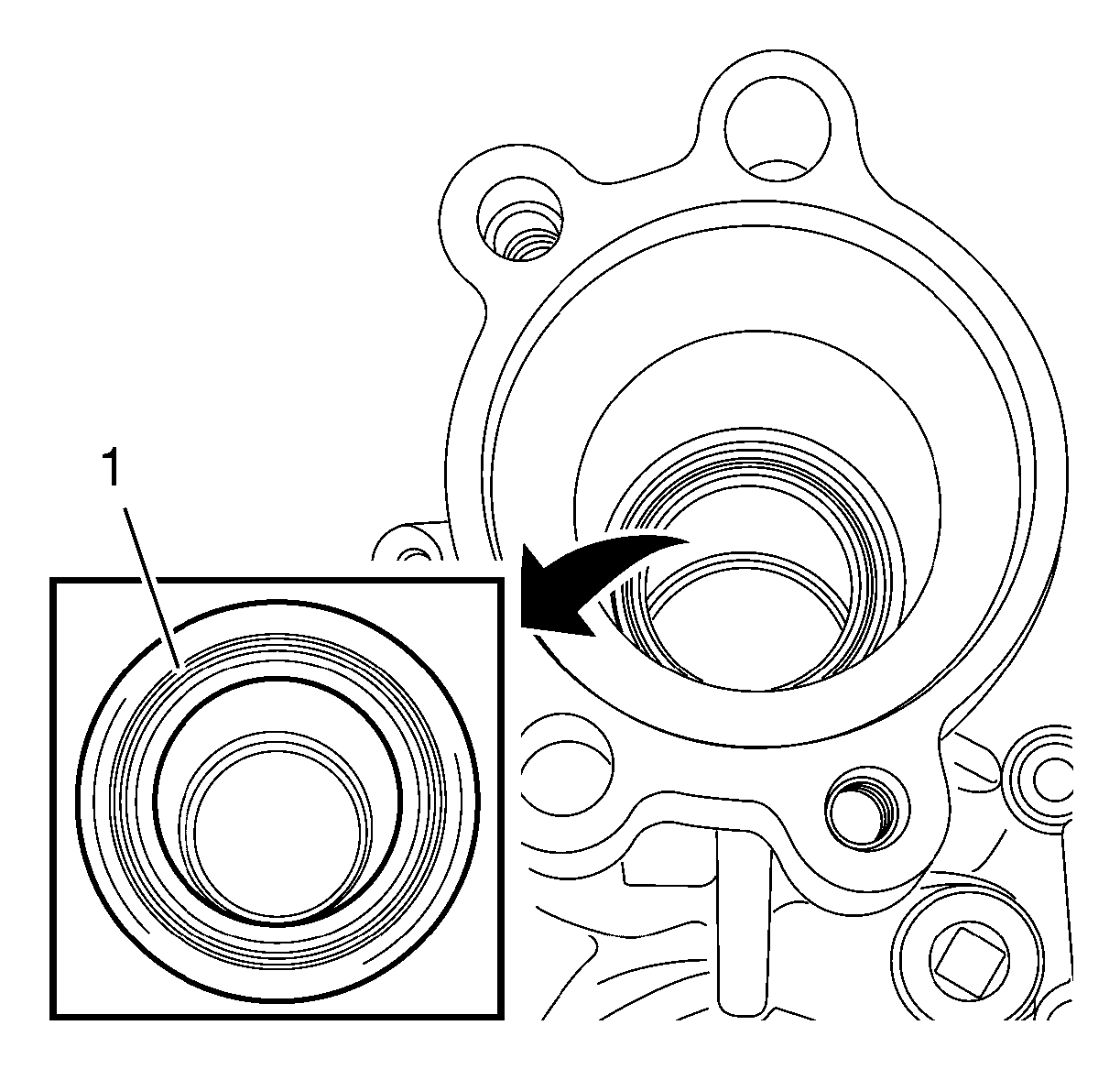

Fig 1: Identifying Front Wheel Drive Intermediate Shaft Seal

Courtesy of GENERAL MOTORS COMPANY

Remove the intermediate shaft seal (1) from the rear extension housing using a suitable screw driver.
