Front Wheel Drive Intermediate Shaft Removal

Special Tools

• DT-113-2-A  Holder
• DT-622-A  Transmission Bracket

For equivalent regional tools, refer to Special Tools .

Fig 1: Transmission Bracket, Transfer Case And Holder
Courtesy of GENERAL MOTORS COMPANY
1. Secure the transfer case (3) in DT-113-2-A  holder (1) , using the DT-622-A  bracket (2).

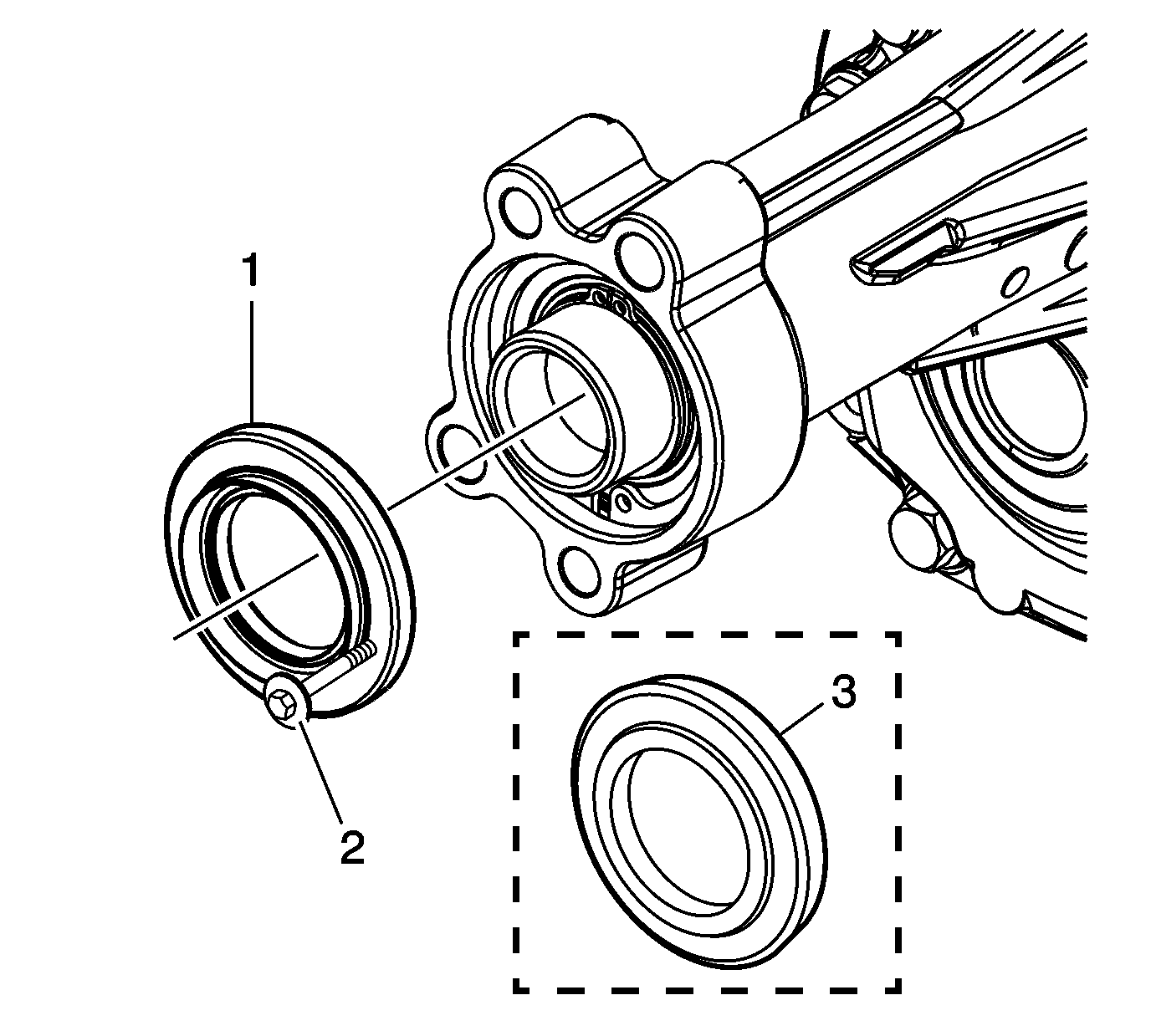

Fig 2: View Of Shaft Dirt Deflector & Grease Seal Assembly
Courtesy of GENERAL MOTORS COMPANY
2. Remove the first design dirt deflector (1). Install a sheet metal screw (2) into the outer surface of the dirt deflector and remove with suitable pliers.
3. Remove the second design dirt deflector (3). Remove the inner metal portion first using a prying type tool and then remove the outer portion by installing a sheet metal screw into surface and removing with suitable pliers.
4. Discard the seal assembly (1).
Fig 3: Intermediate Shaft Retaining Ring
Courtesy of GENERAL MOTORS COMPANY
5. Remove the transfer case intermediate shaft retaining ring (1), using suitable snap ring pliers.
Fig 4: Transfer Case Intermediate Shaft
Courtesy of GENERAL MOTORS COMPANY
6. Remove the transfer case intermediate shaft (1), with bearing, using a rubber mallet.
