Front Wheel Drive Intermediate Shaft Bearing Removal

Special Tools

DT-307-B  Remover Plate

For equivalent regional tools, refer to Special Tools .

Fig 1: Identifying Intermediate Shaft Bearing Retaining Ring
Courtesy of GENERAL MOTORS COMPANY
1. Remove the transfer case intermediate shaft bearing retaining ring (2) from intermediate shaft (1), using suitable pliers.

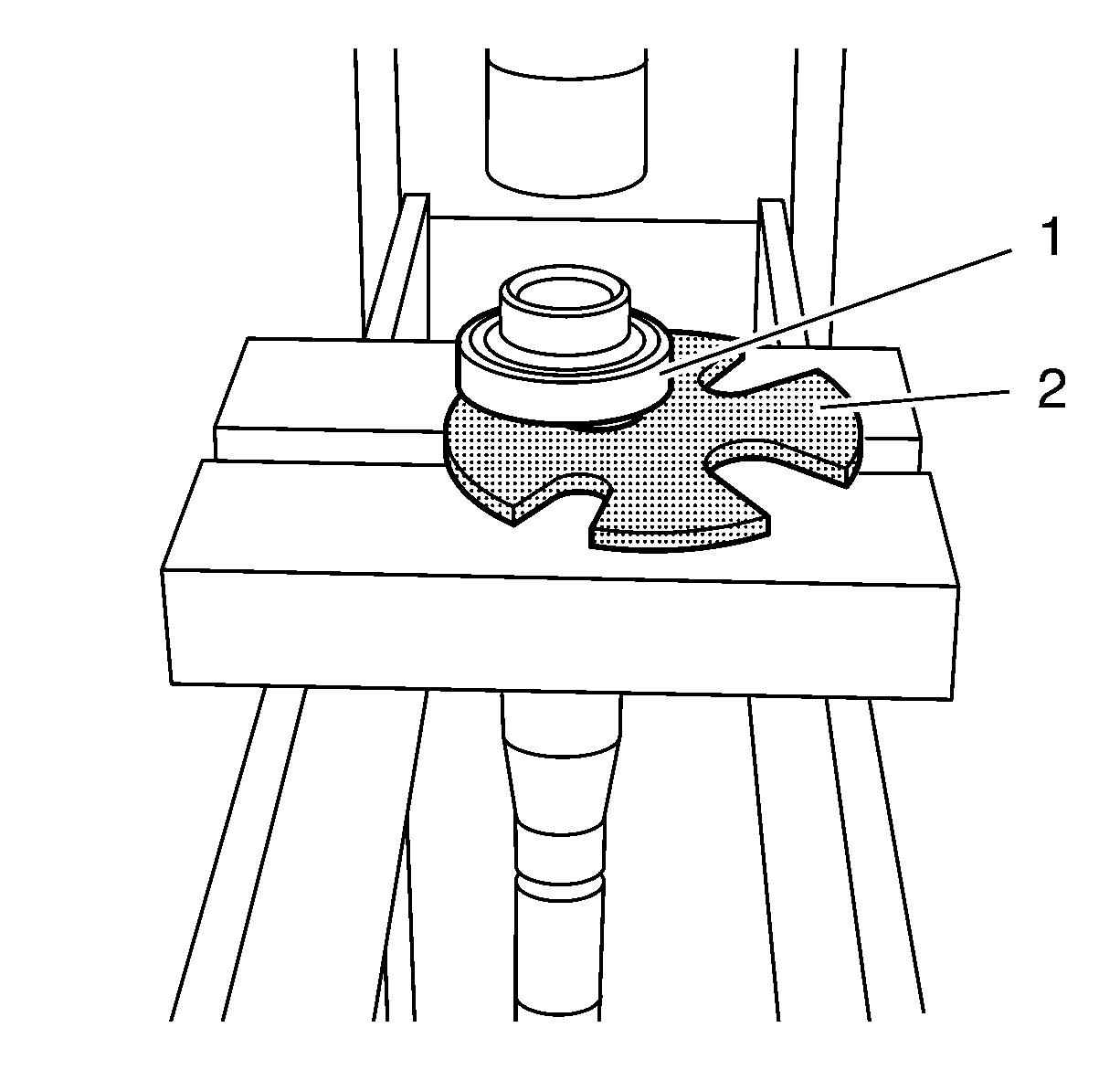

Fig 2: Transfer Case Intermediate Shaft Bearing
Courtesy of GENERAL MOTORS COMPANY
2. Remove the transfer case intermediate shaft bearing (1), using the DT-307-B  remover plate and a hydraulic press.
Fig 3: Intermediate Shaft O-Ring (Second Design)
Courtesy of GENERAL MOTORS COMPANY
3. Remove the intermediate shaft O-ring (3), as required.
