Transfer Case Housing
- Clean the front case half in cleaning solvent and air dry.

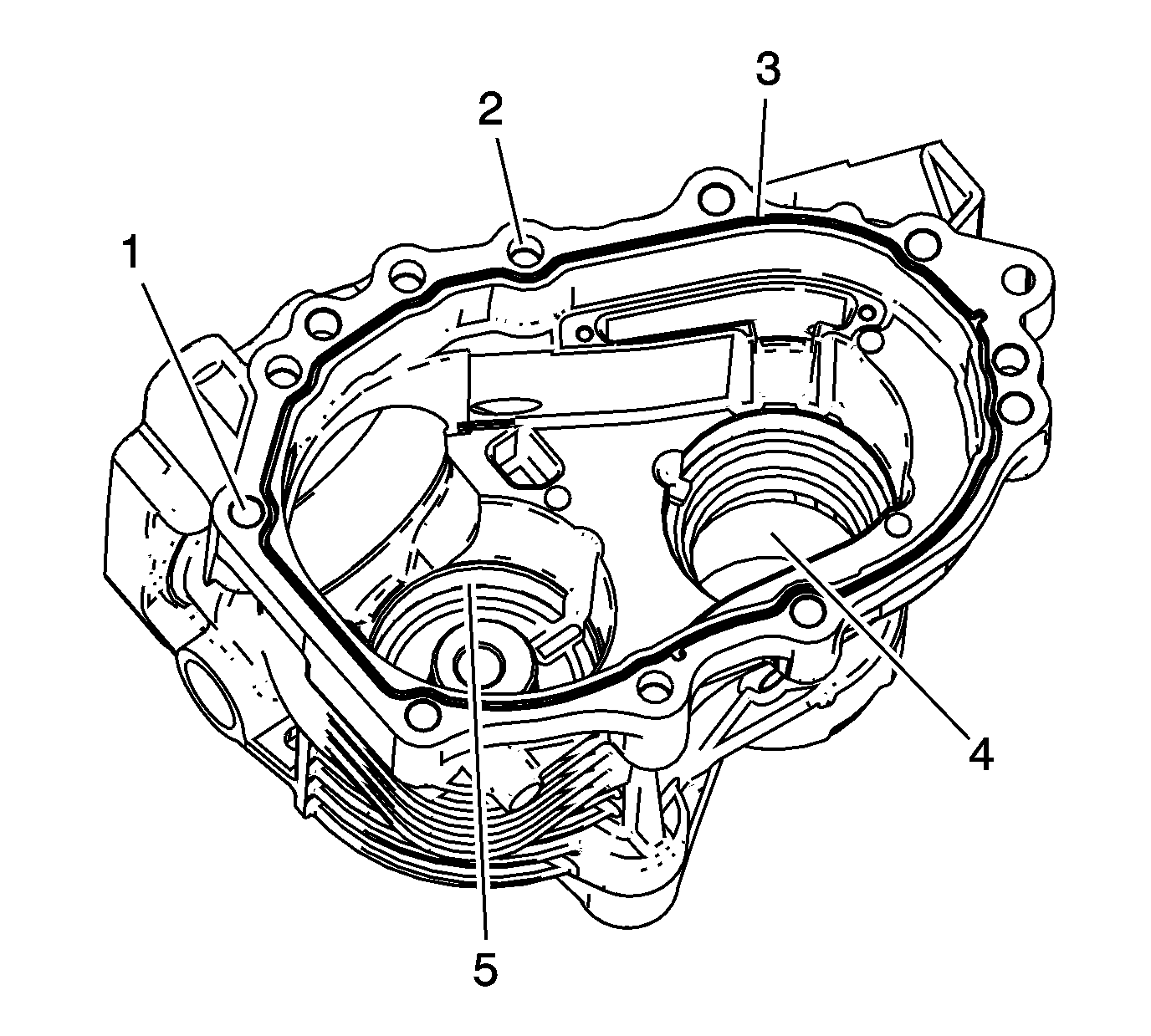

- Inspect the housing for the following:
- Damage to threaded bolt holes (1 and 2)
- Damaged sealing surfaces (3)
- Bearing races (5) with wear or pitting
- Porosity
- External Damage
NOTE:
The bearings, shafts, gears, and housings are not serviceable components. If damage to any of those components is present, the transfer case must be replaced as an assembly.
