Transfer Case Vent Installation

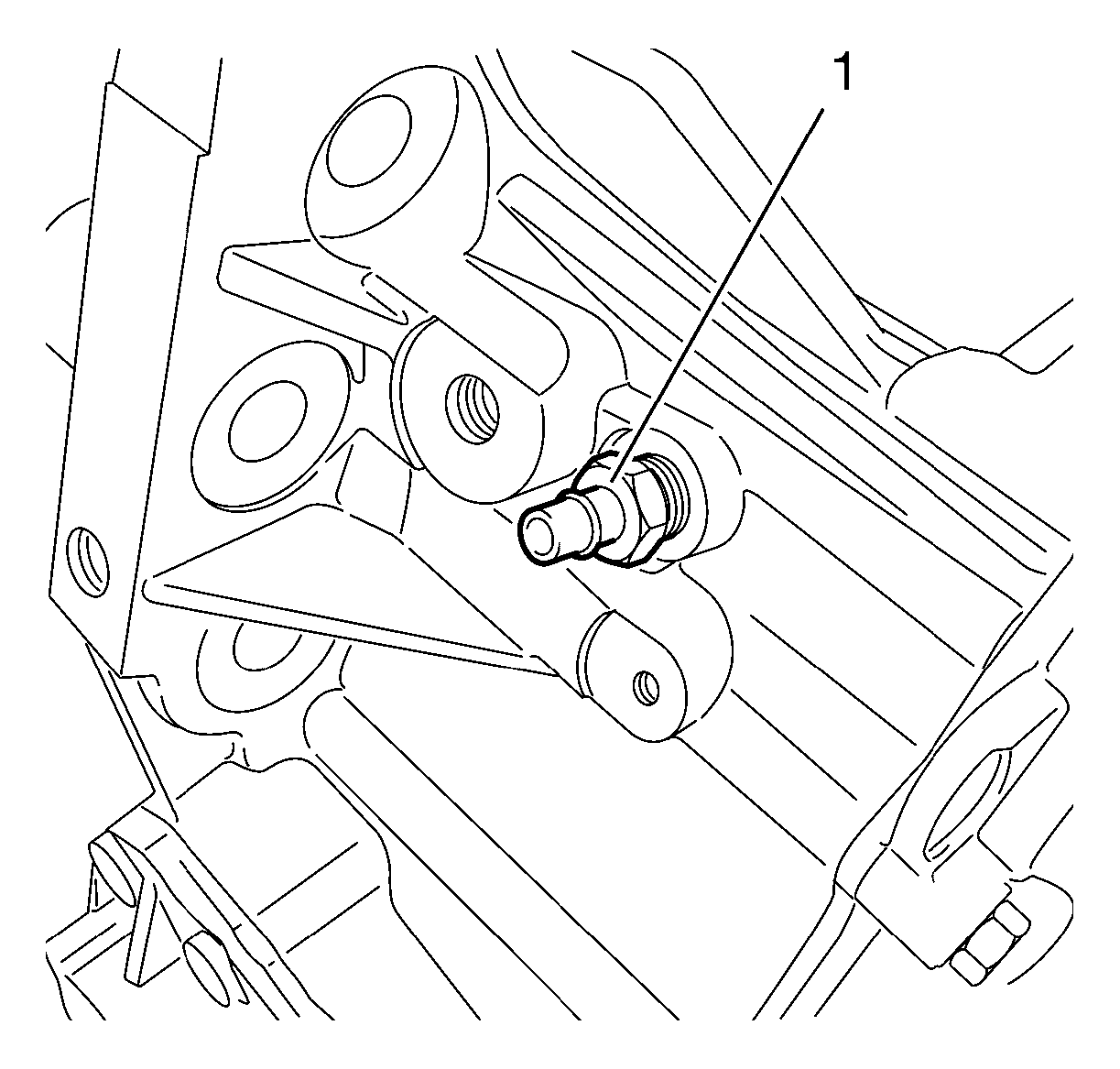

    Fig 1: View Of Transfer Case Vent
    GM2190810Courtesy of GENERAL MOTORS COMPANY
  1. Apply sealant to the threads of the vent hose connector. Refer to Adhesives, Fluids, Lubricants, and Sealers .
  2. Install the transfer case vent hose connector (1) and tighten to 25 N.m (18 lb ft).
