Rear Extension Housing Installation - Model Dependent

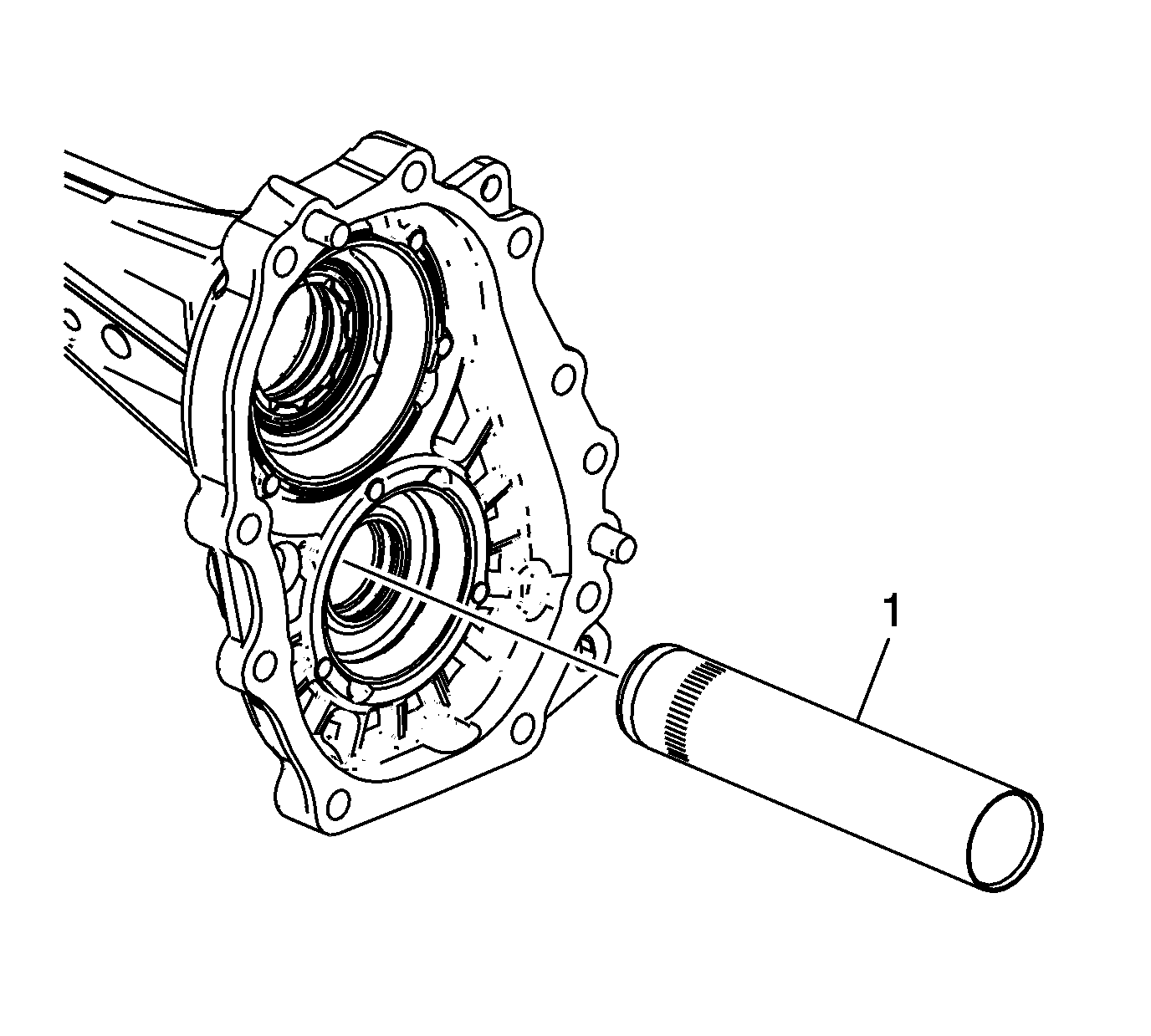

Fig 1: Idler Gear Shaft

Courtesy of GENERAL MOTORS COMPANY

1. Install the idler gear shaft (1) to the rear extension housing - Model Dependent.

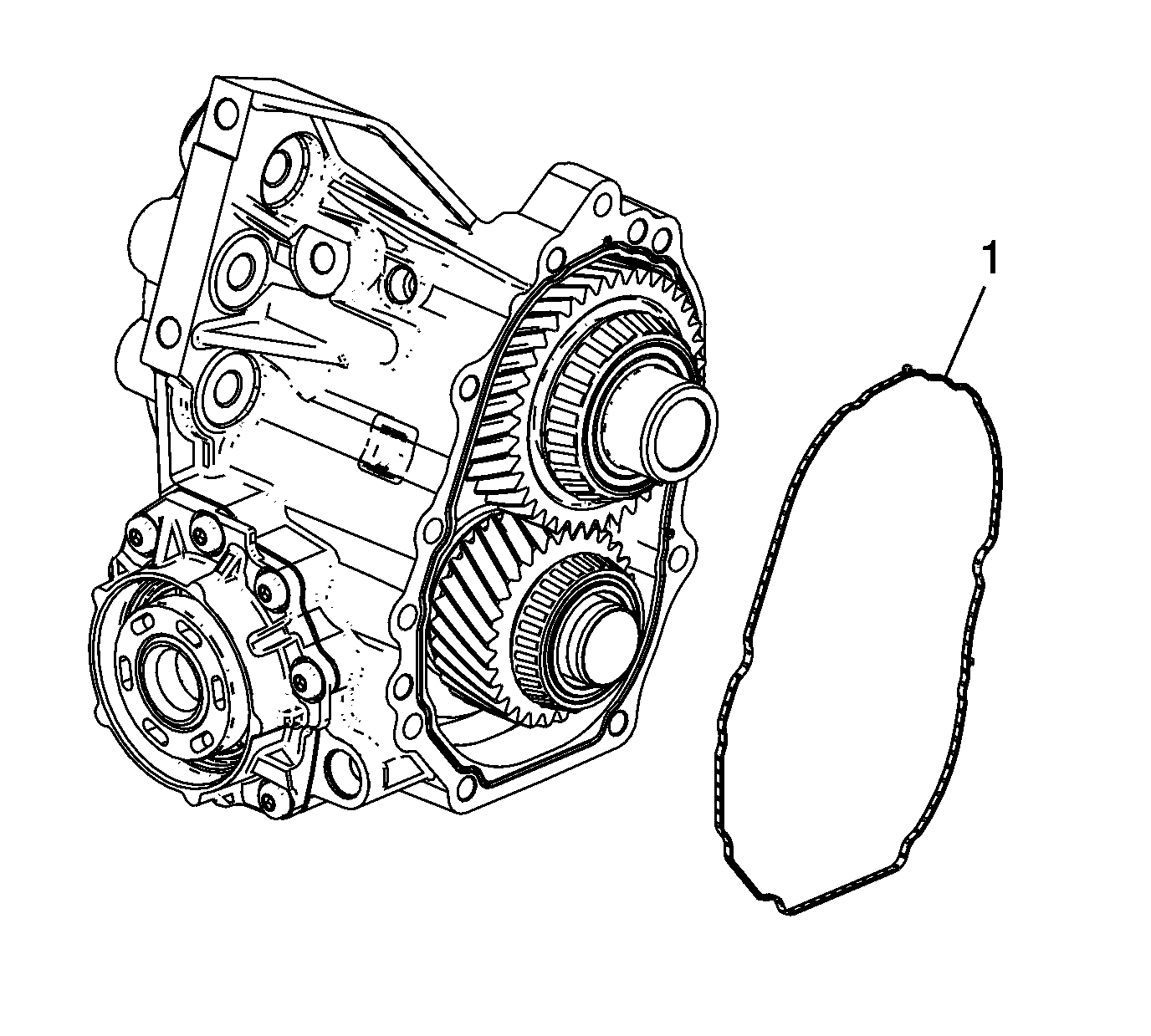

Fig 2: Rear Extension Housing-To-Transfer Case Seal
Courtesy of GENERAL MOTORS COMPANY
2. Install a NEW rear extension housing-to-transfer case seal (1).

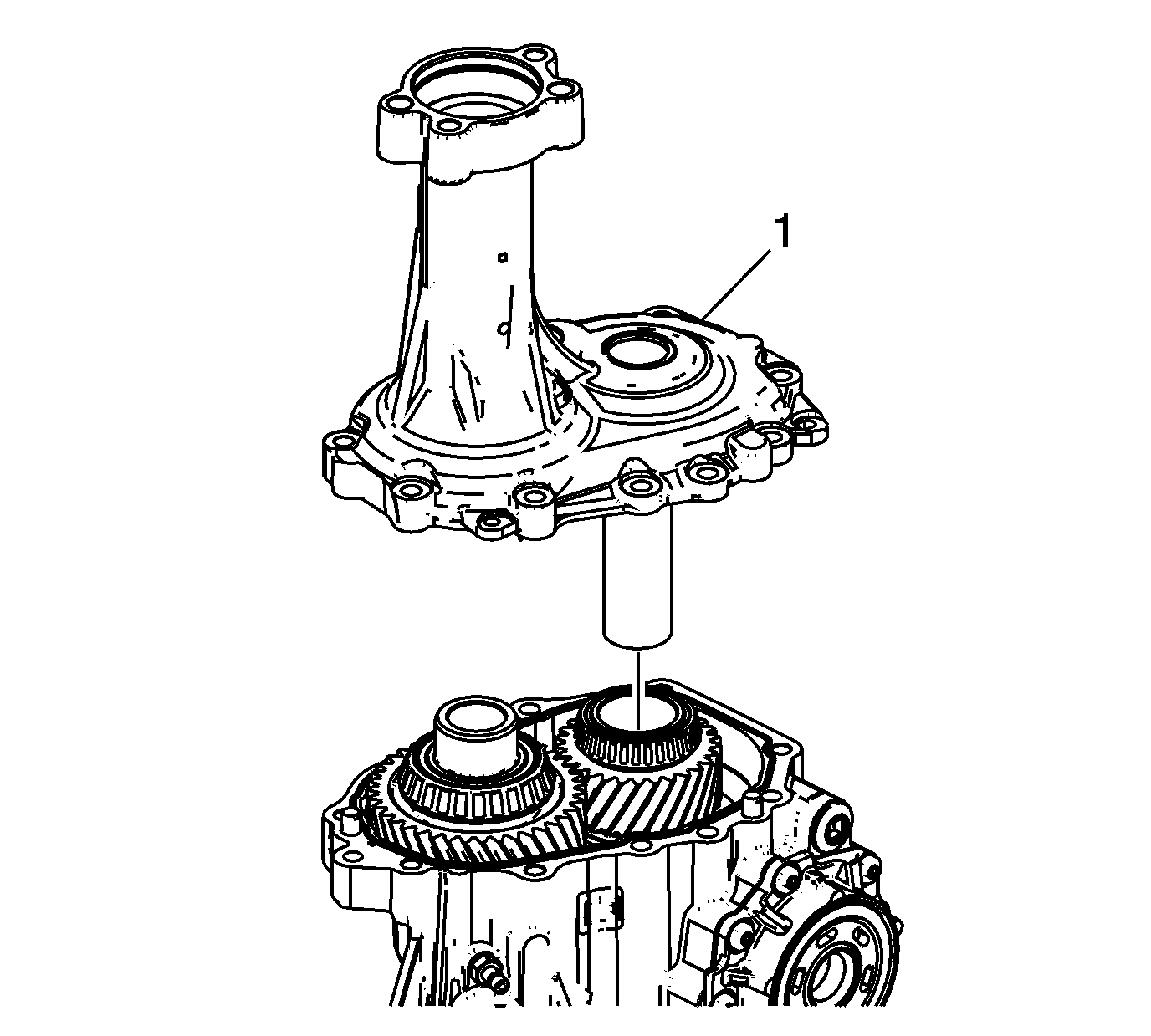

Fig 3: Transfer Case Rear Extension Housing
Courtesy of GENERAL MOTORS COMPANY
3. Install the rear extension housing (1) and idler gear shaft to the transfer case housing. Position the idler gear shaft into the center opening of the idler gear.

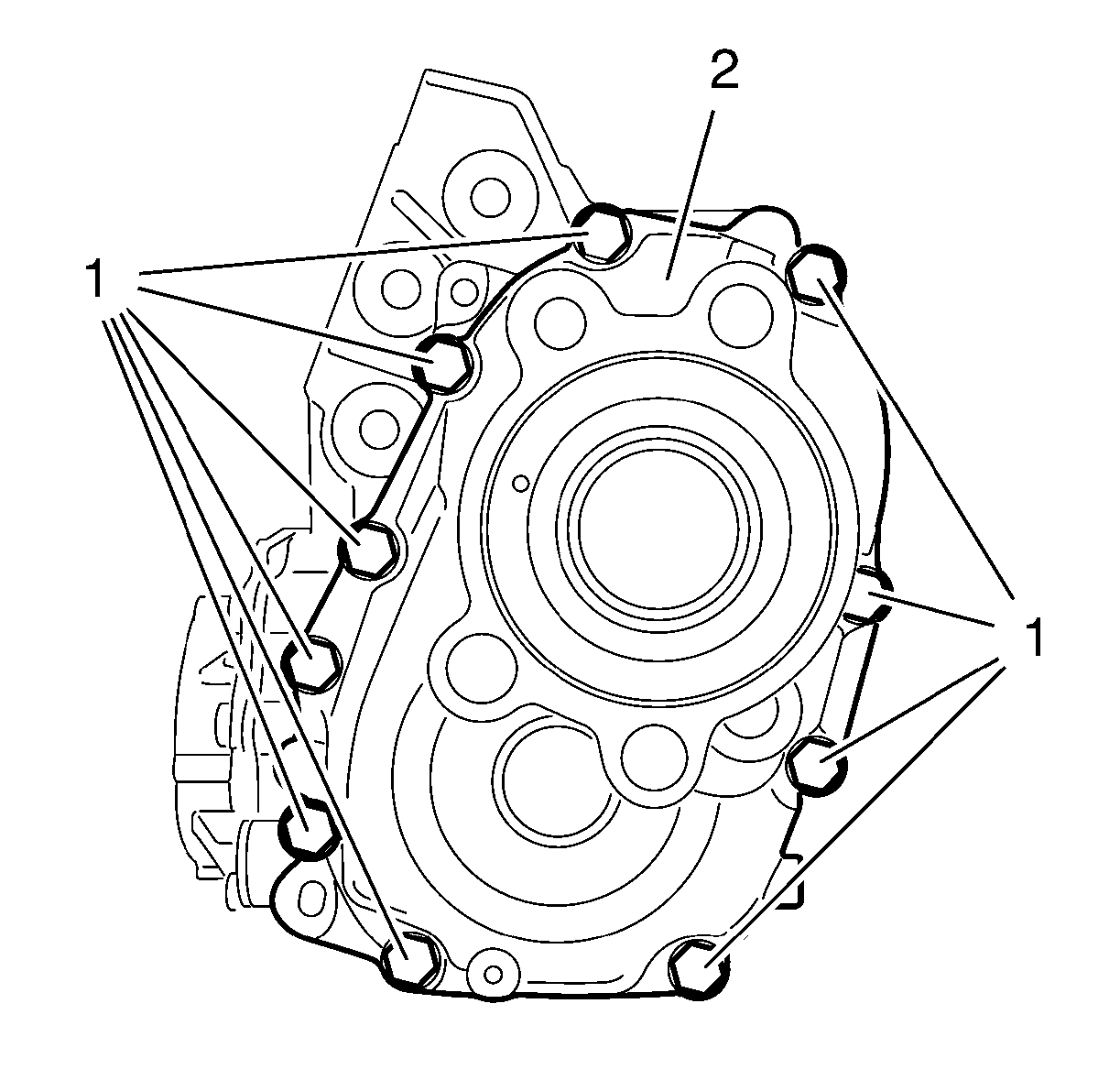

Fig 4: Locating Transfer Case Rear Extension Housing Bolts
Courtesy of GENERAL MOTORS COMPANY
CAUTION:

Refer to Fastener Caution .

4. Apply threadlock to the threads of the NEW transfer case-to-rear extension housing bolts (1). Refer to Adhesives, Fluids, Lubricants, and Sealers .
5. Install the NEW transfer case-to-rear extension housing bolts (1).
   1. Tighten the 10 transfer case-to-rear extension housing bolts (1) a first pass to 25 N.m (18 lb ft).
   2. Tighten the 10 transfer case-to-rear extension housing bolts (1) a second pass 130 degrees.
