Locating Bushing Installation

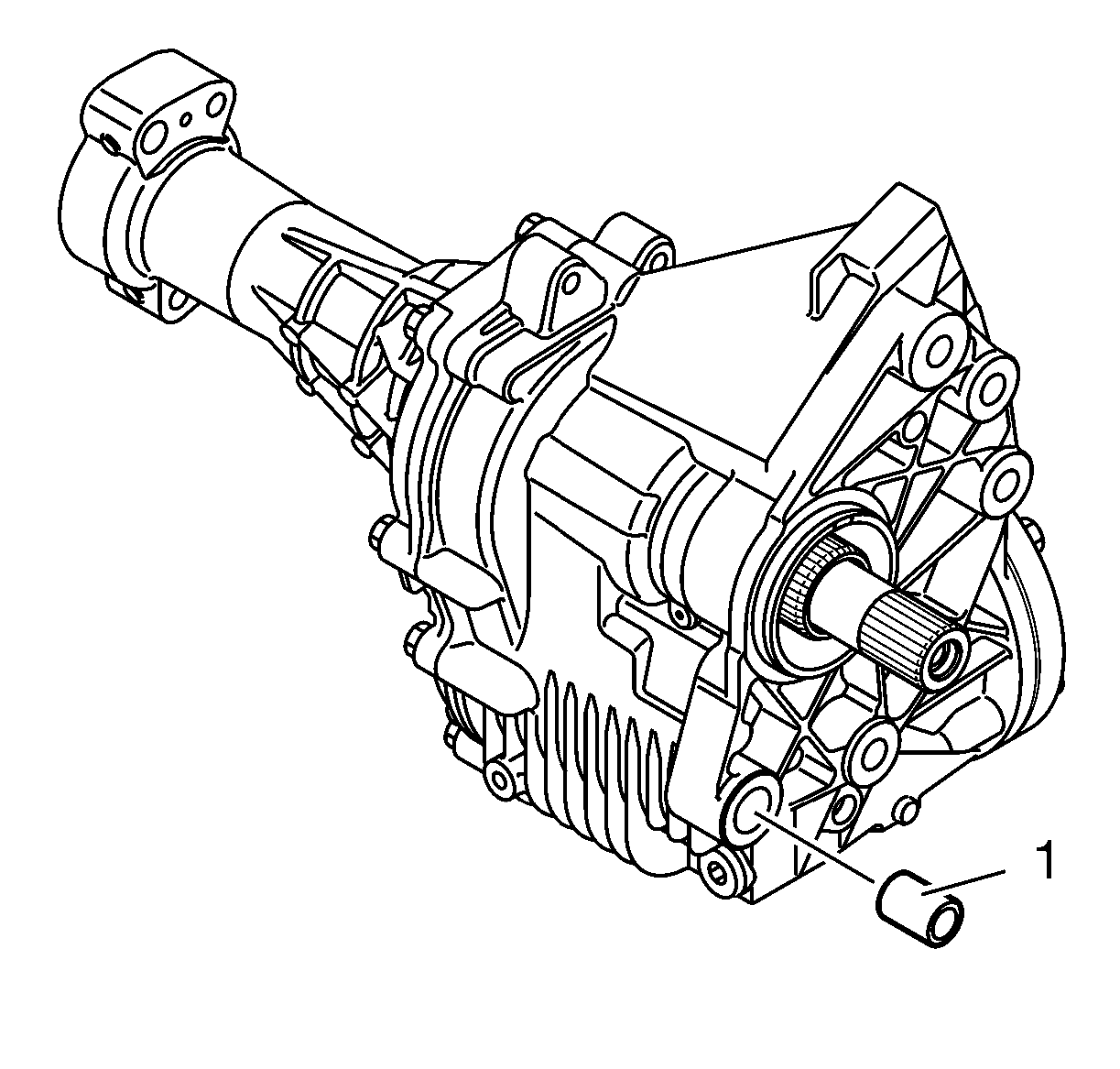

Fig 1: View Of Transfer Case Location Bushing
GM2026661Courtesy of GENERAL MOTORS COMPANY

Install the transfer case locating bushing (1) as required using a rubber mallet - Model Dependent.
