Input Shaft and Idler Gear Installation

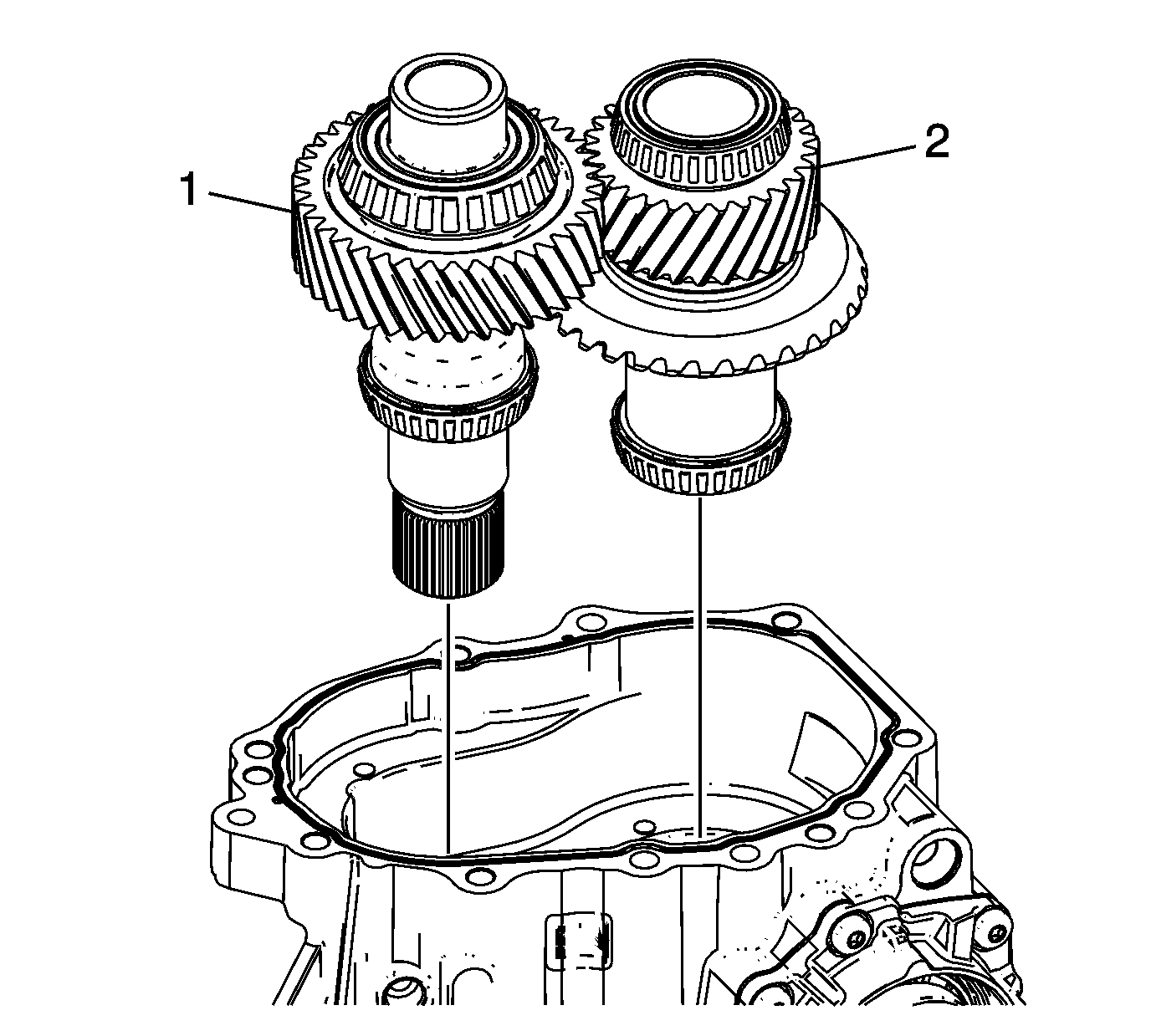

Fig 1: Input Shaft And Idler Gear
GM2534692Courtesy of GENERAL MOTORS COMPANY
CAUTION:

Cover the splines of the input shaft to prevent damage to the input shaft oil seals during installation.

Install input shaft (1) and idler gear (2).
