Idler Gear Shaft Rear Seal Installation

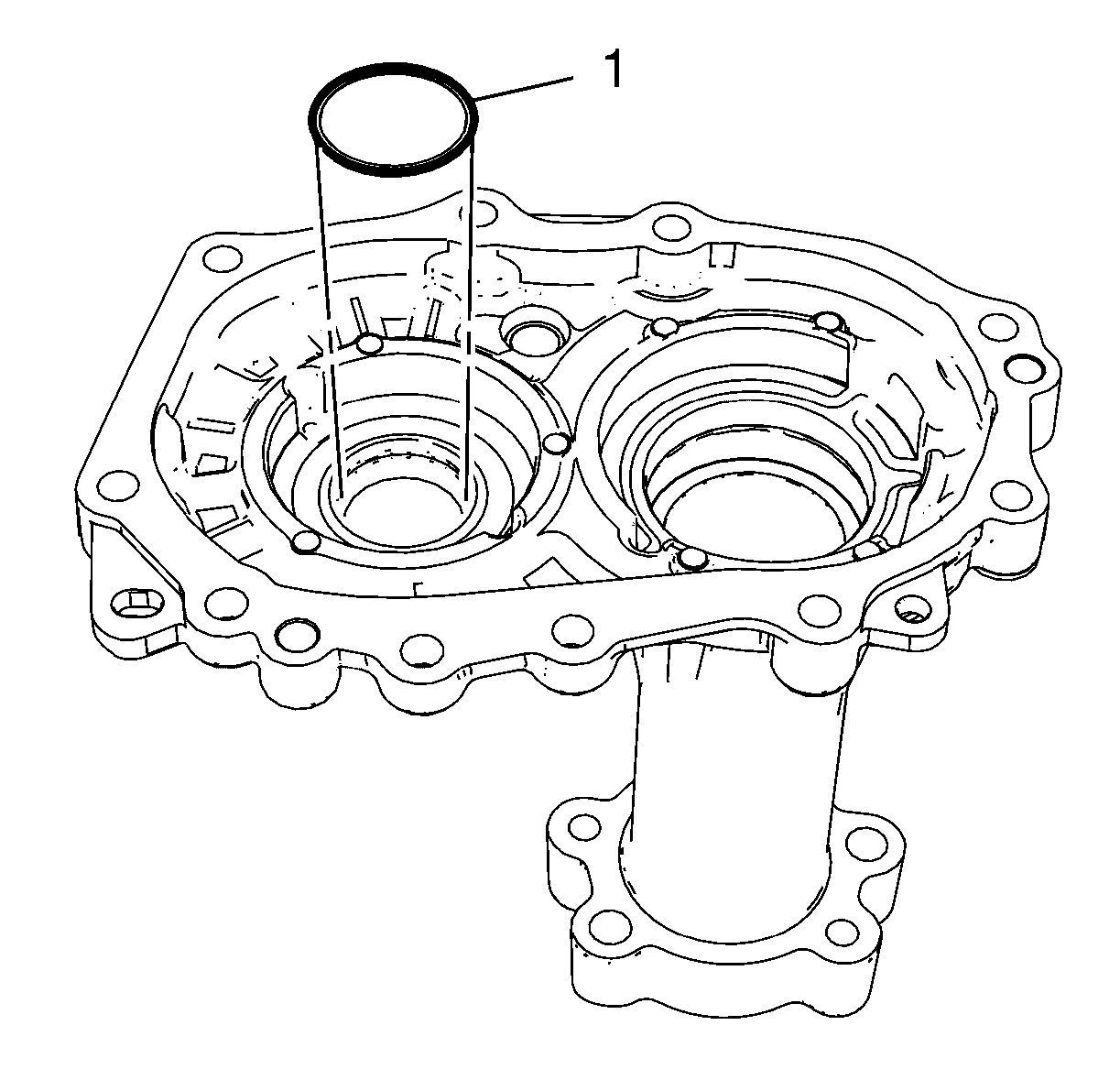

Fig 1: Identifying Idler Gear Shaft Rear Seal
GM2190868Courtesy of GENERAL MOTORS COMPANY

Install a NEW idler gear shaft rear seal (1) to the rear extension housing - Model Dependent.
