Front Wheel Drive Intermediate Shaft Seal Installation

Special Tools

• DT-305-1/KM-305-1  Remover/Installer
• DT-49953  Seal Installer

For equivalent regional tools, refer to Special Tools .

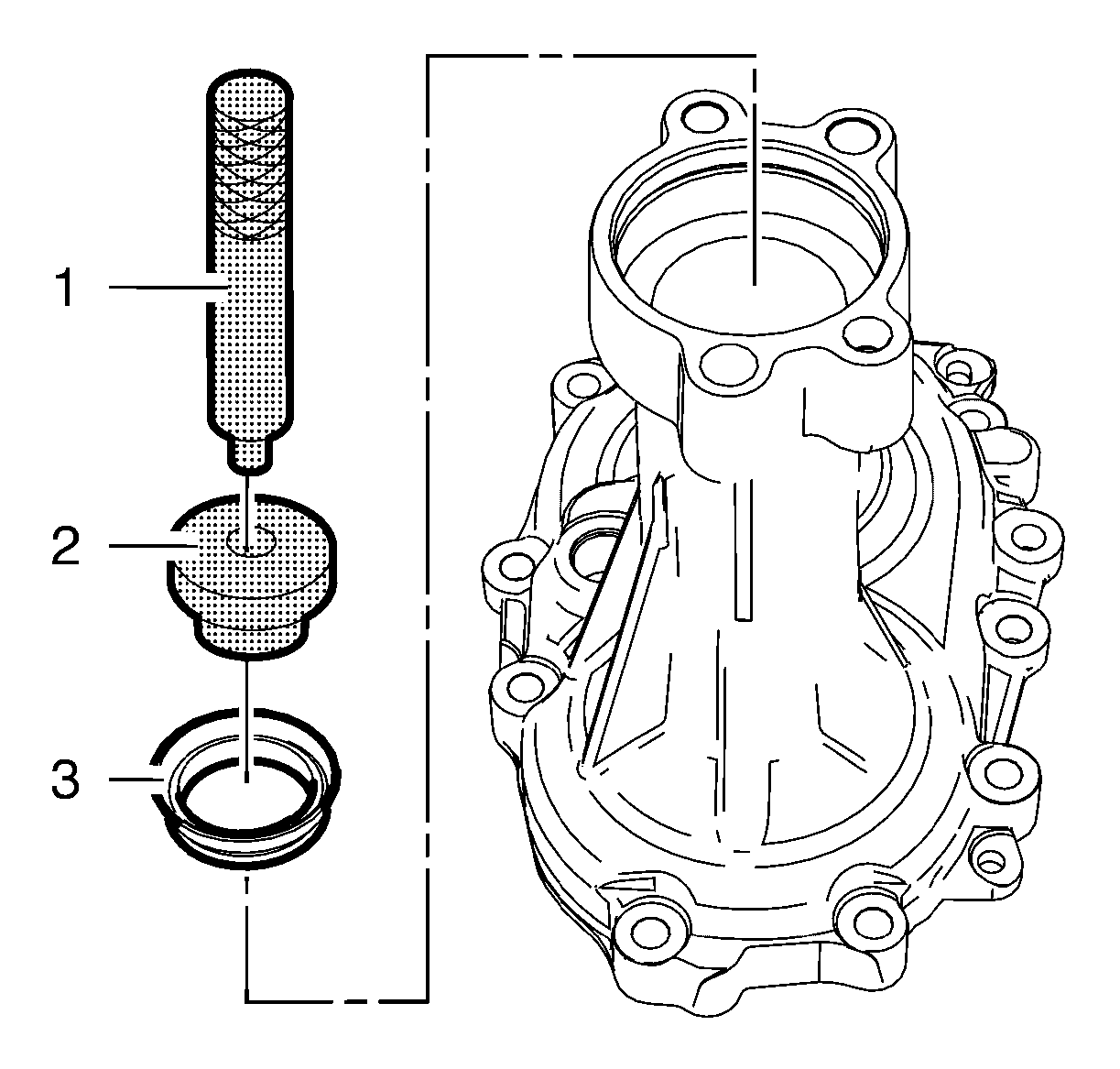

Fig 1: Intermediate Shaft Seal Installer

Courtesy of GENERAL MOTORS COMPANY

Install the intermediate shaft seal (3), to the rear extension housing using the DT-49953  installer (2) with DT-305-1/KM-305-1  remover/installer (1).
