Front Wheel Drive Intermediate Shaft Bearing Installation

Special Tools

DT-48076  Bearing Installer

For equivalent regional tools, refer to Special Tools .

Fig 1: View Of Special Installation Tool
Courtesy of GENERAL MOTORS COMPANY
1. Press on the intermediate shaft bearing (2) onto the intermediate shaft (3), using DT-48076  installer (1) and a hydraulic press.
Fig 2: Identifying Intermediate Shaft Bearing Retaining Ring
Courtesy of GENERAL MOTORS COMPANY
2. Install the transfer case intermediate shaft bearing retaining ring (2) to intermediate shaft (1), using suitable pliers.

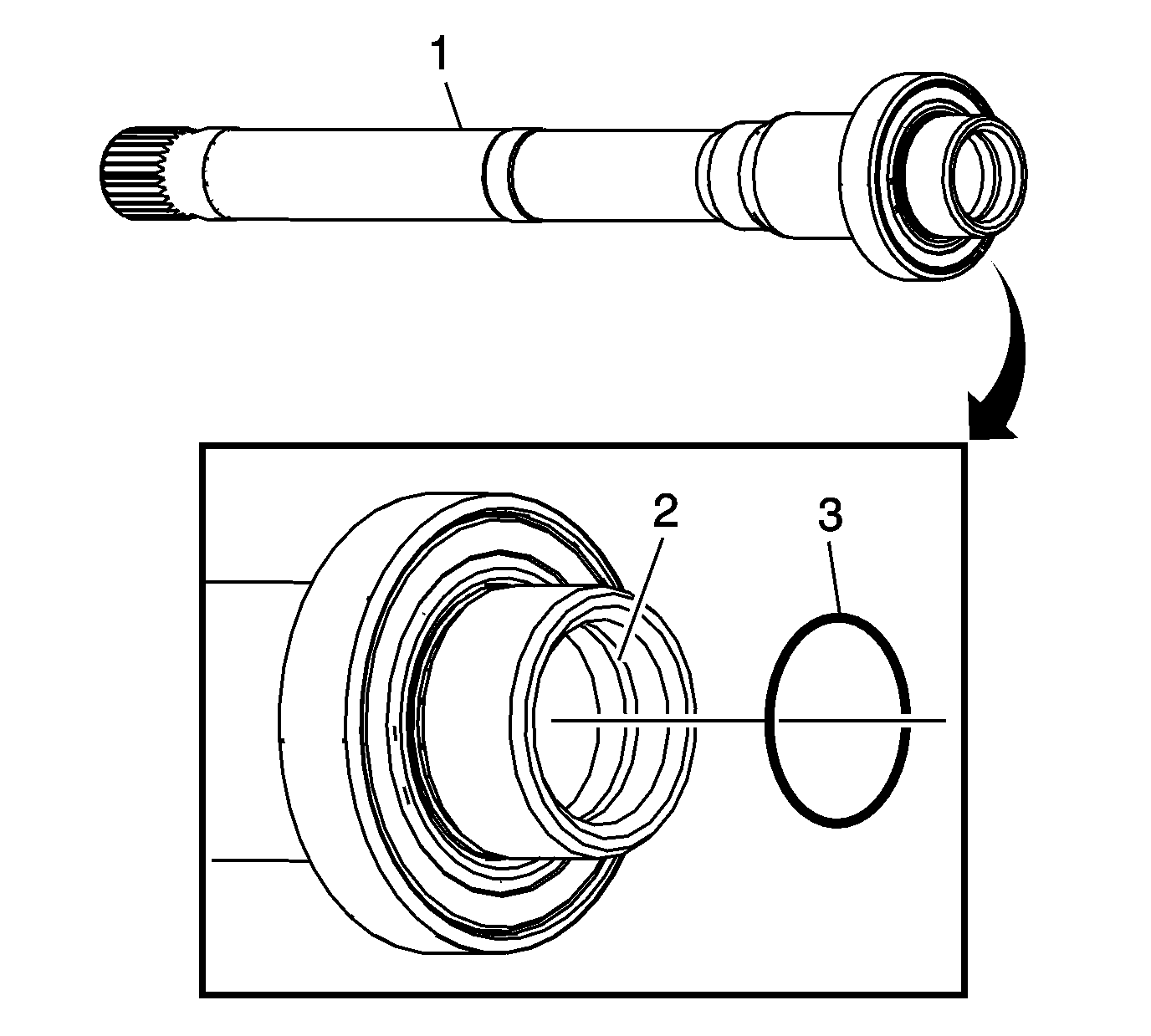

Fig 3: Intermediate Shaft O-Ring (Second Design)
Courtesy of GENERAL MOTORS COMPANY
3. Install intermediate shaft O-ring (3), as required.
