Control Valve Channel Upper Plate Assembly

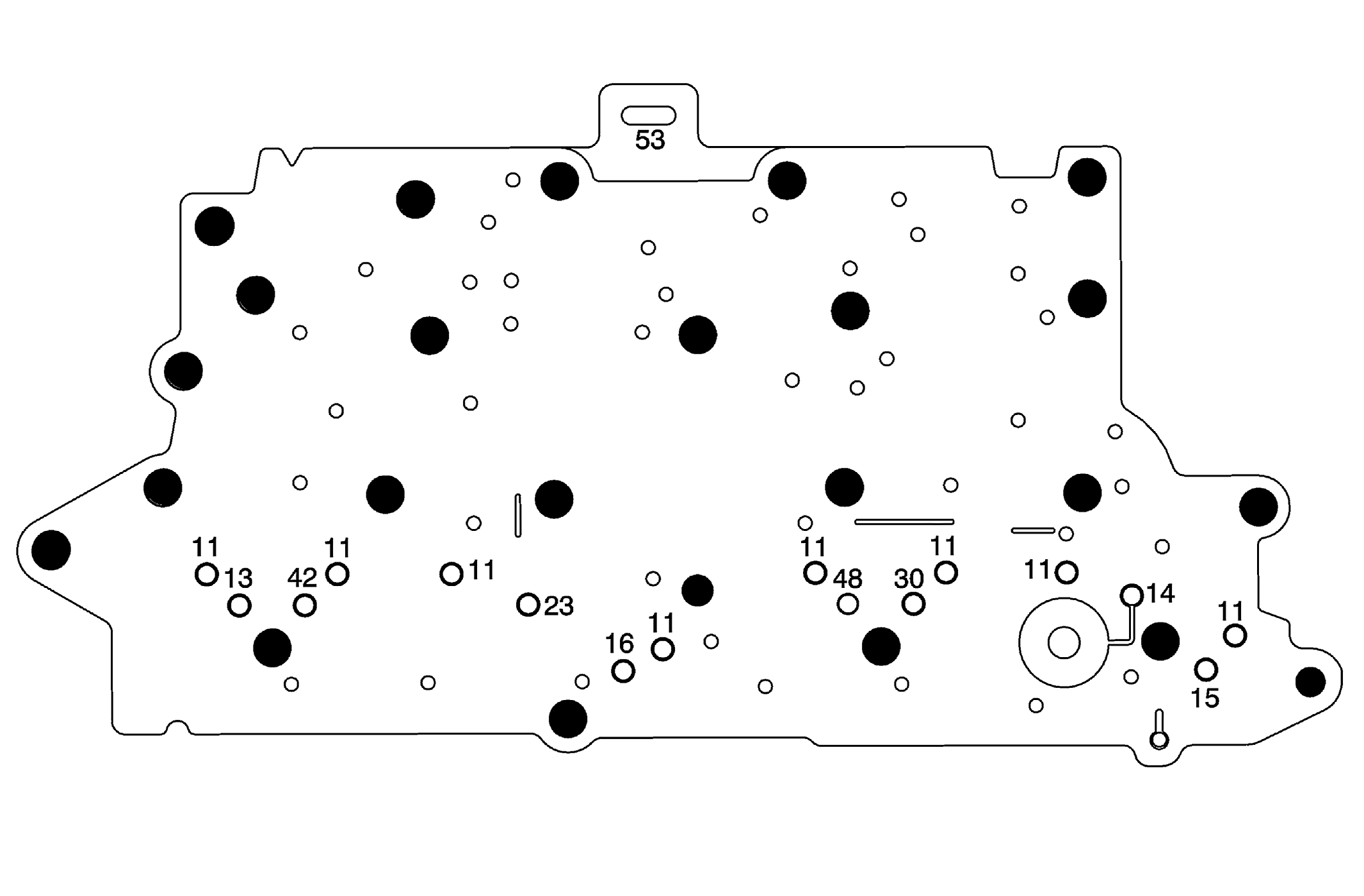

Fig 1: Control Valve Channel Upper Plate Assembly

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
11	Actuator Feed Limit
13	PCS Line
14	PCS R-1/4-5-6 Clutch
15	Solenoid 1
16	Solenoid 2
23	PCS 3-5 Reverse Clutch
30	PCS 1-2-3-4 Clutch
42	PCS 2-6 Clutch
48	PCS TCC
53	Void
