A/Trans Case Assembly Case Cover Side

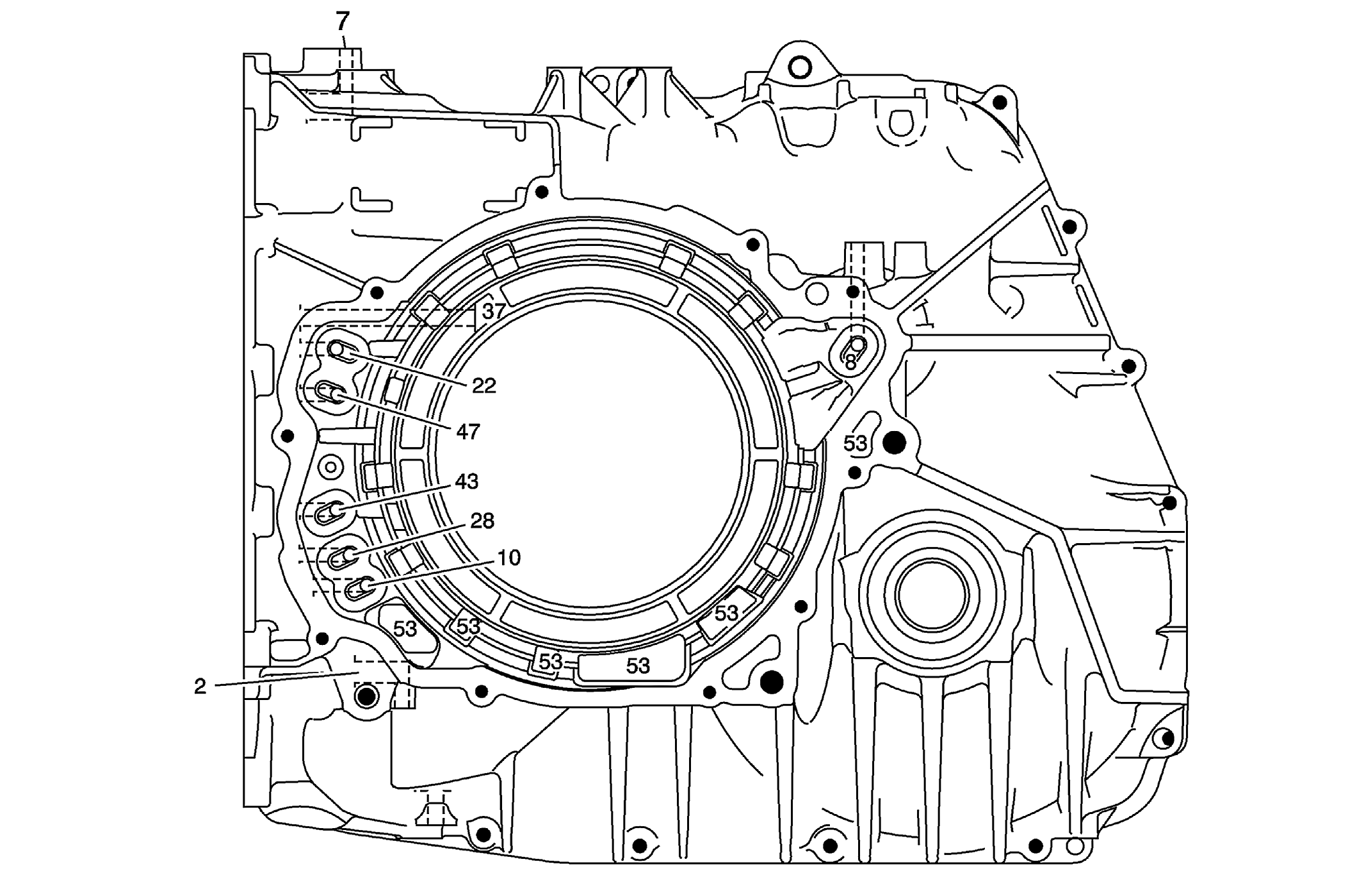

Fig 1: A/Trans Case Assembly Case Cover Side
GM2743955Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
2 Line (to valve body)
7 Cooler Feed
8 Lube
10 Compensator Feed
22 R-1
28 3-5 Reverse Clutch
37 1-2-3-4 Clutch
43 2-6 Clutch
47 4-5-6 Clutch
53 Void
