Installation Procedure

  1. Insert a new transmission cooler line seal into the case bore.

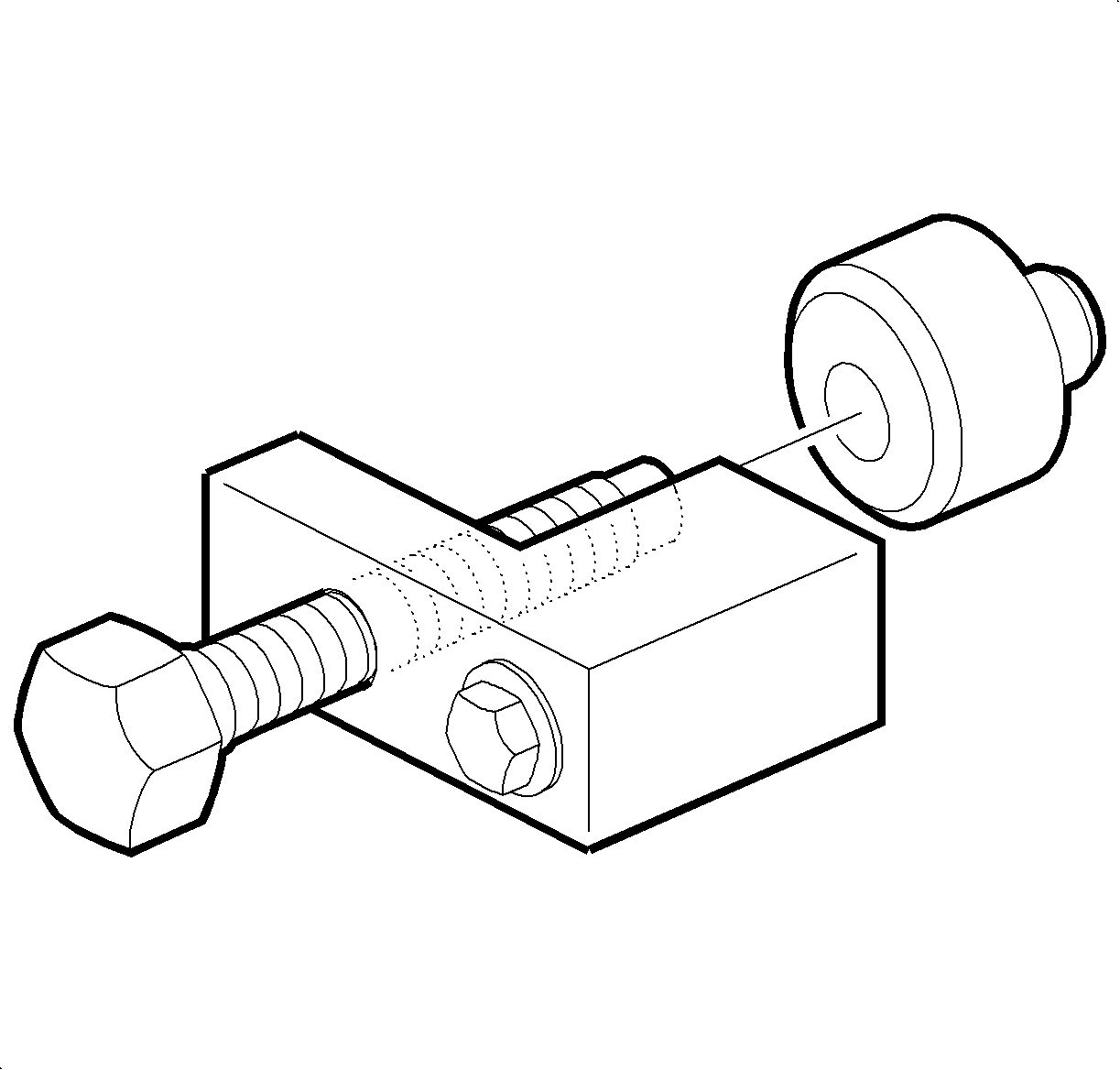

    2. Fig 1: View Of Nub And Cooler Line Seal Installer
    GM992891Courtesy of GENERAL MOTORS COMPANY
  2. Remove the nub from the DT-41239-1A  Cooler Line Seal Installer.

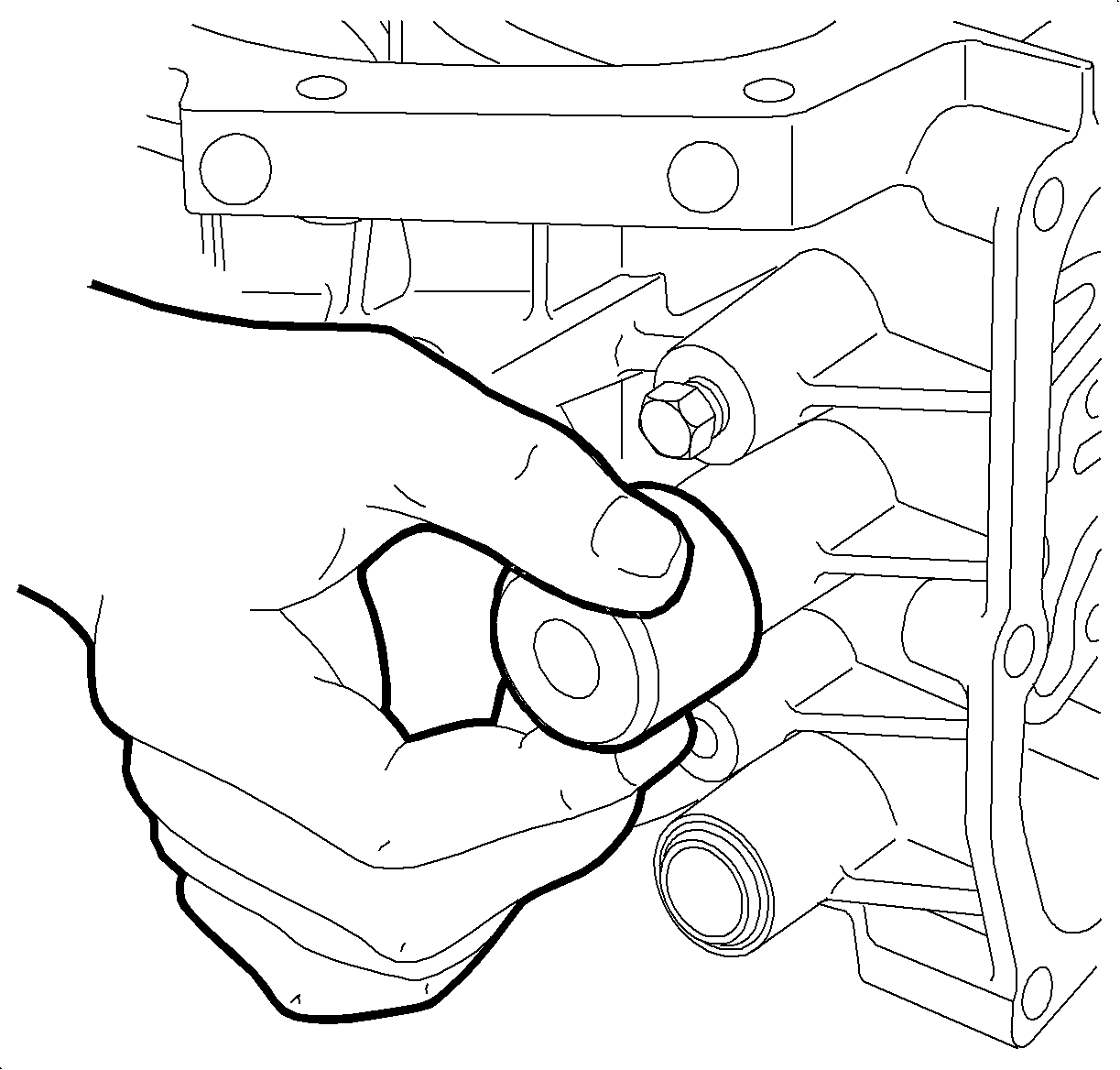

    3. Fig 2: View Of Nub Of Cooler Line Seal Installer & Transaxle Cooler Line Seal
    GM948673Courtesy of GENERAL MOTORS COMPANY
  3. Install the nub of the DT-41239-1A  Cooler Line Seal Installer on the transmission cooler line seal.
  4. Tap the new transmission cooler line seal into the case bore.
    5. Fig 3: View Of Transaxle Oil Cooler Line Assembly
    GM945444Courtesy of GENERAL MOTORS COMPANY
  5. Install the transmission oil cooler line assembly to the transmission.
    6. CAUTION:

    Refer to Fastener Caution .

  6. Install the transmission oil cooler line assembly nut and tighten to 9 N.m (80 lb in).
  7. Lower the vehicle.
  8. Check and adjust transmission fluid level as necessary.
  9. Start the engine and check for leaks.
