Removal Procedure

Remove the plastic cap from the quick connect fitting by pulling the cap back along the pipe.

Fig 1: Generator Cooling Inlet Pipe

Courtesy of GENERAL MOTORS COMPANY

Install the DT-41623-B 3/8 inch line quick release tool onto the transmission oil cooler (TOC) pipe, or use the DT-28585 universal snap ring remover for the 5/8 inch line.

Fig 2: Sliding Special Tool Toward TOC Pipe Fitting

Courtesy of GENERAL MOTORS COMPANY

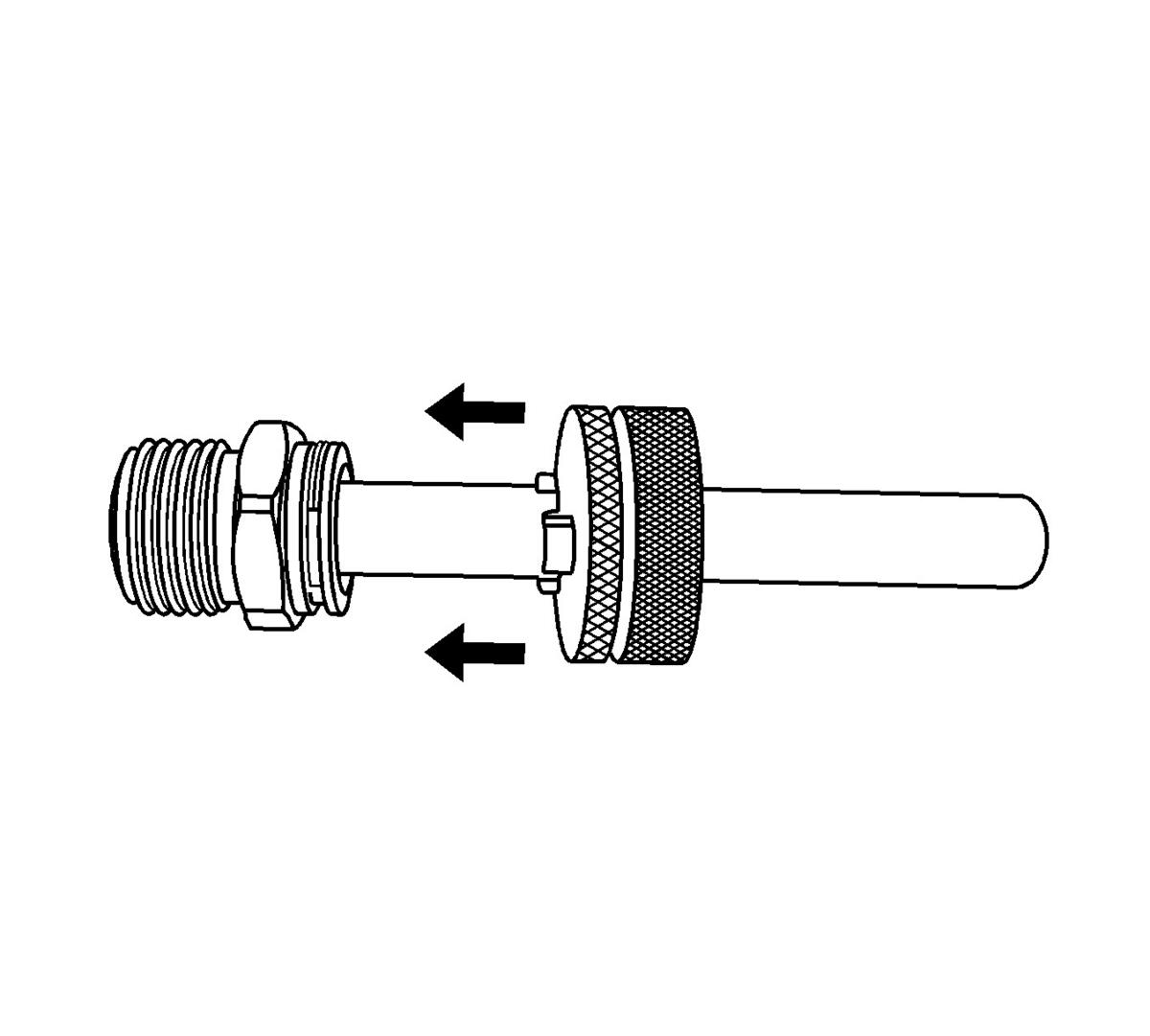

Slide the DT-41623-B 3/8 inch line quick release tool toward the TOC pipe fitting, or use the DT-28585 universal snap ring remover for the 5/8 inch line.

Fig 3: Rotating Special Tool On Pipe

Courtesy of GENERAL MOTORS COMPANY

NOTE:

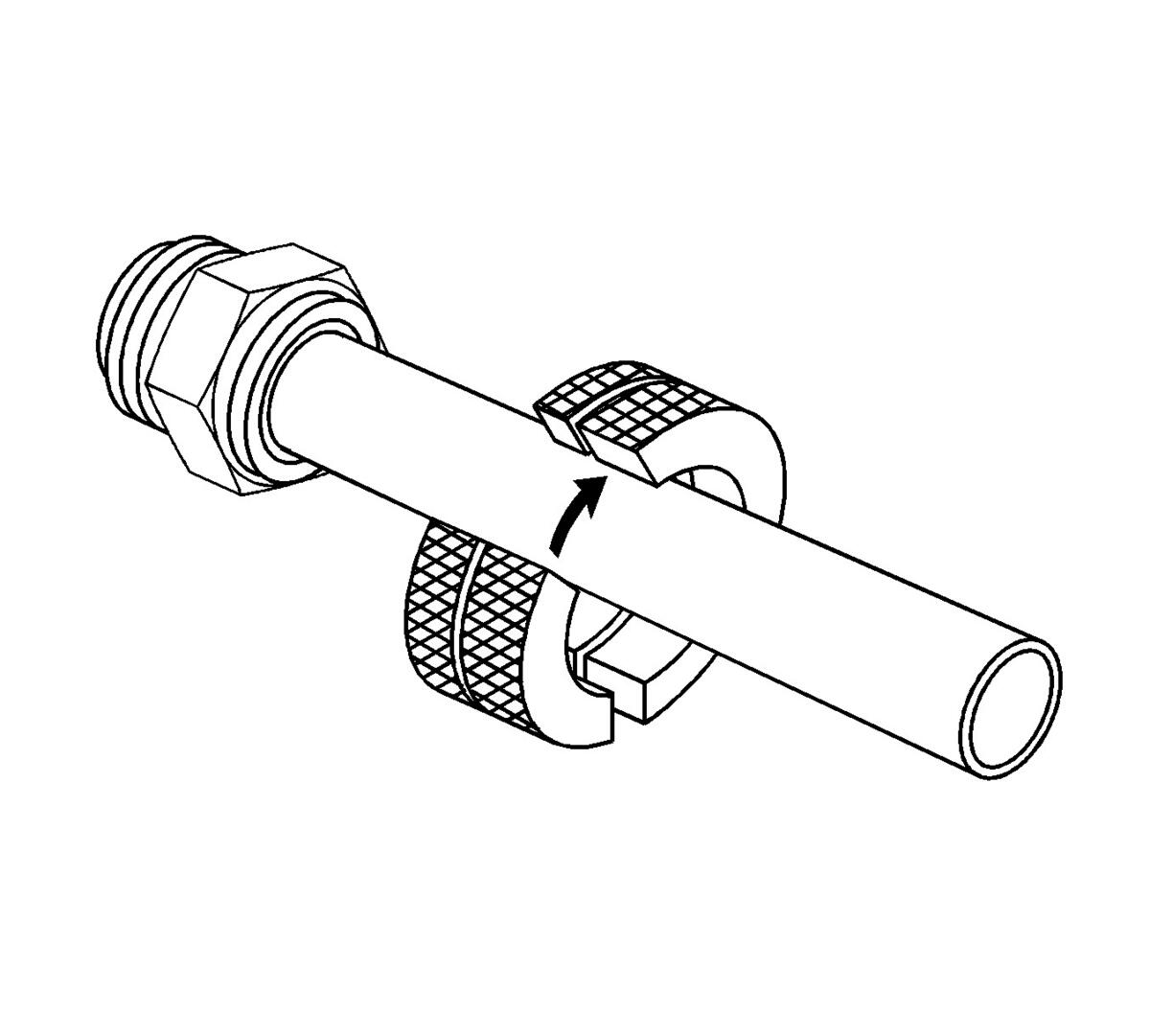

Rotate the DT-41623-B 3/8 inch line quick release tool to engage the TOC pipe fitting's retainer slots.

The DT-41623-B 3/8 inch line quick release tool should be nearly flush with the fitting.

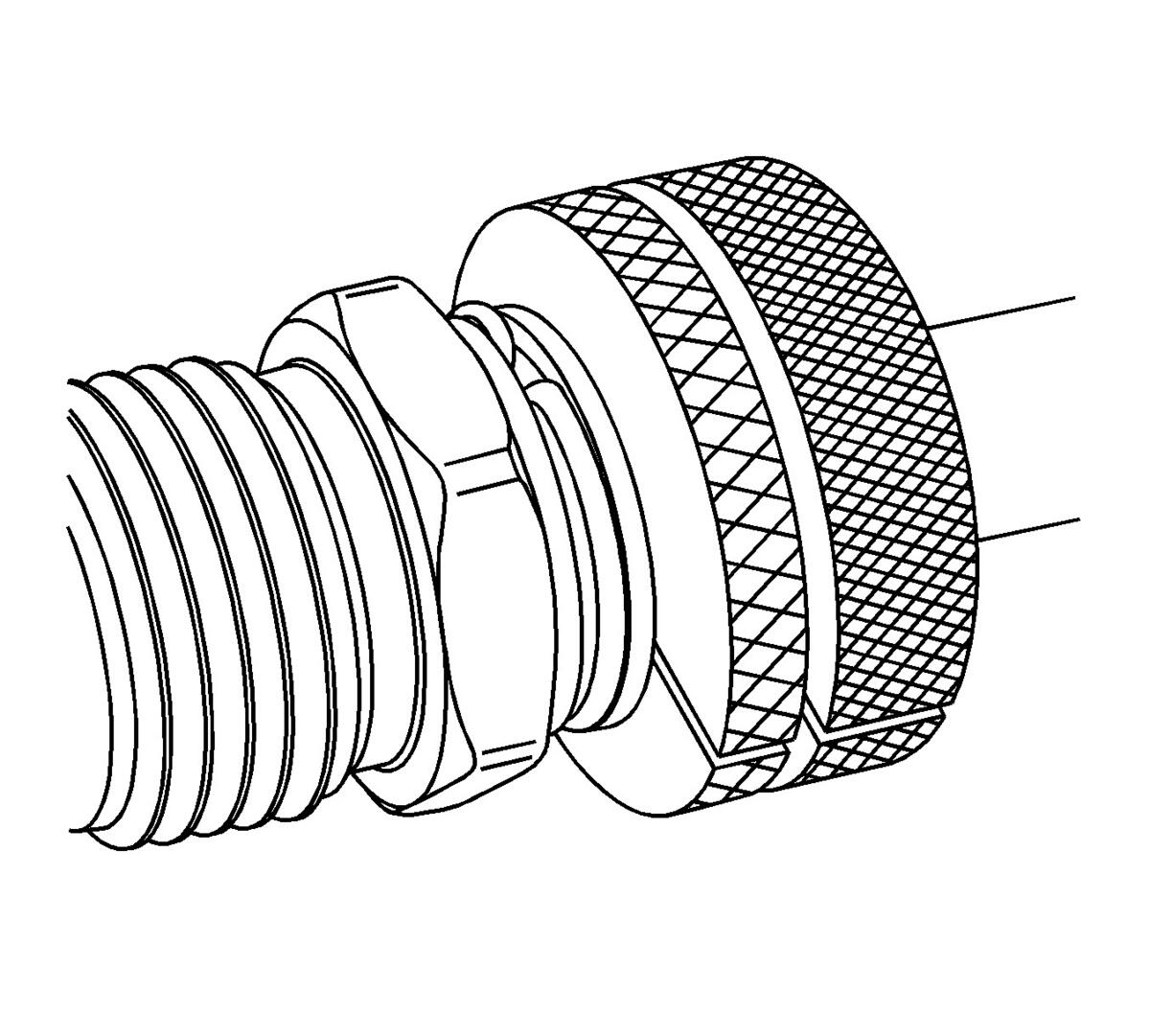

Connect the DT-41623-B 3/8 inch line quick release tool onto the TOC pipe fitting.

Fig 4: Identifying Retainer Clip

Courtesy of GENERAL MOTORS COMPANY

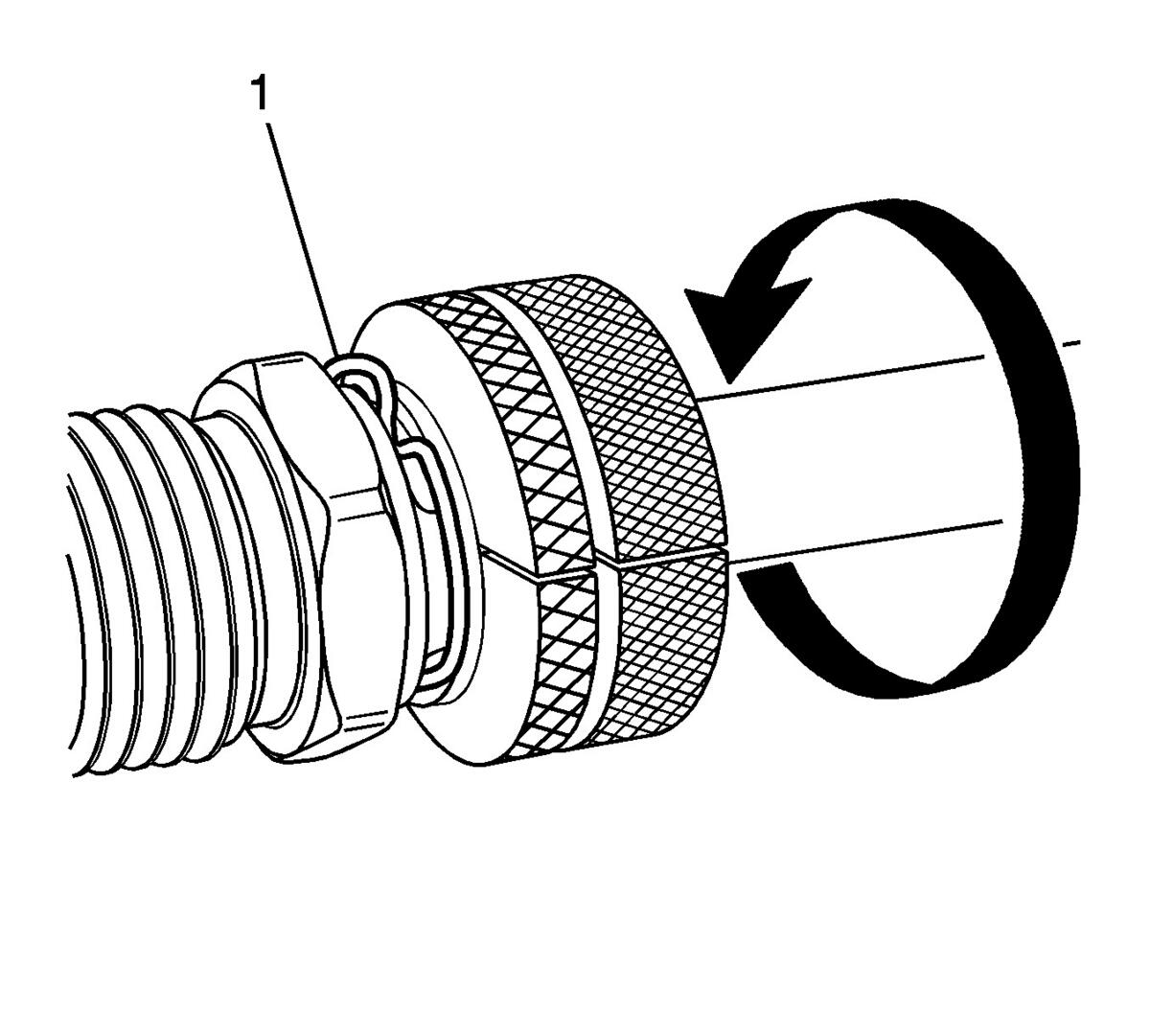

Rotate the DT-41623-B 3/8 inch line quick release tool or use the DT-28585 universal snap ring remover for the 5/8 inch line until the retainer clip (1) rises above the fitting retainer seat.

Fig 5: Generator Cooling Inlet Pipe

Courtesy of GENERAL MOTORS COMPANY

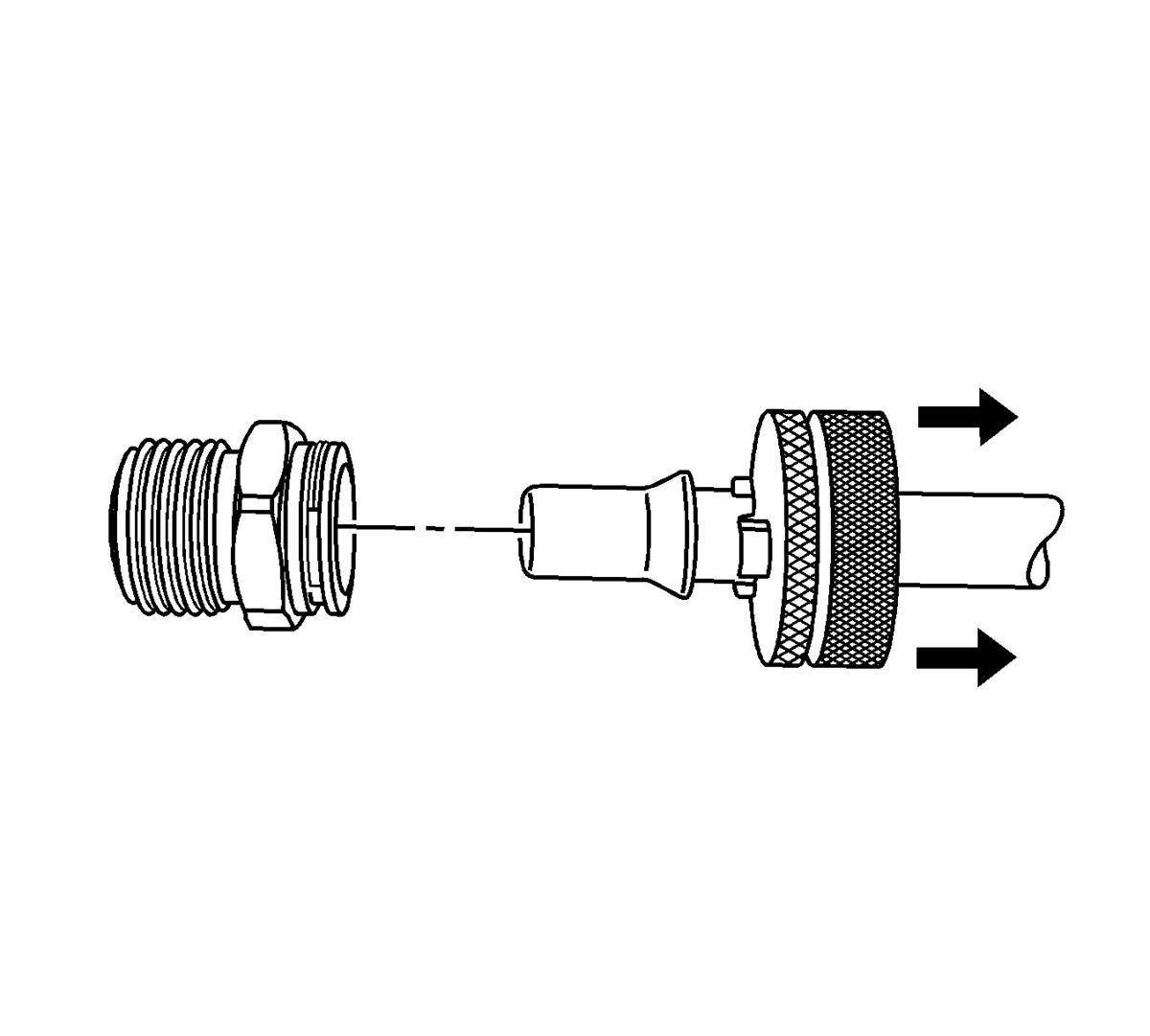

Pull back on the TOC pipe to disengage the pipe from the TOC pipe fitting.
Remove the DT-41623-B 3/8 inch line quick release tool or the DT-28585 universal snap ring remover for the 5/8 inch line from the TOC pipe.
