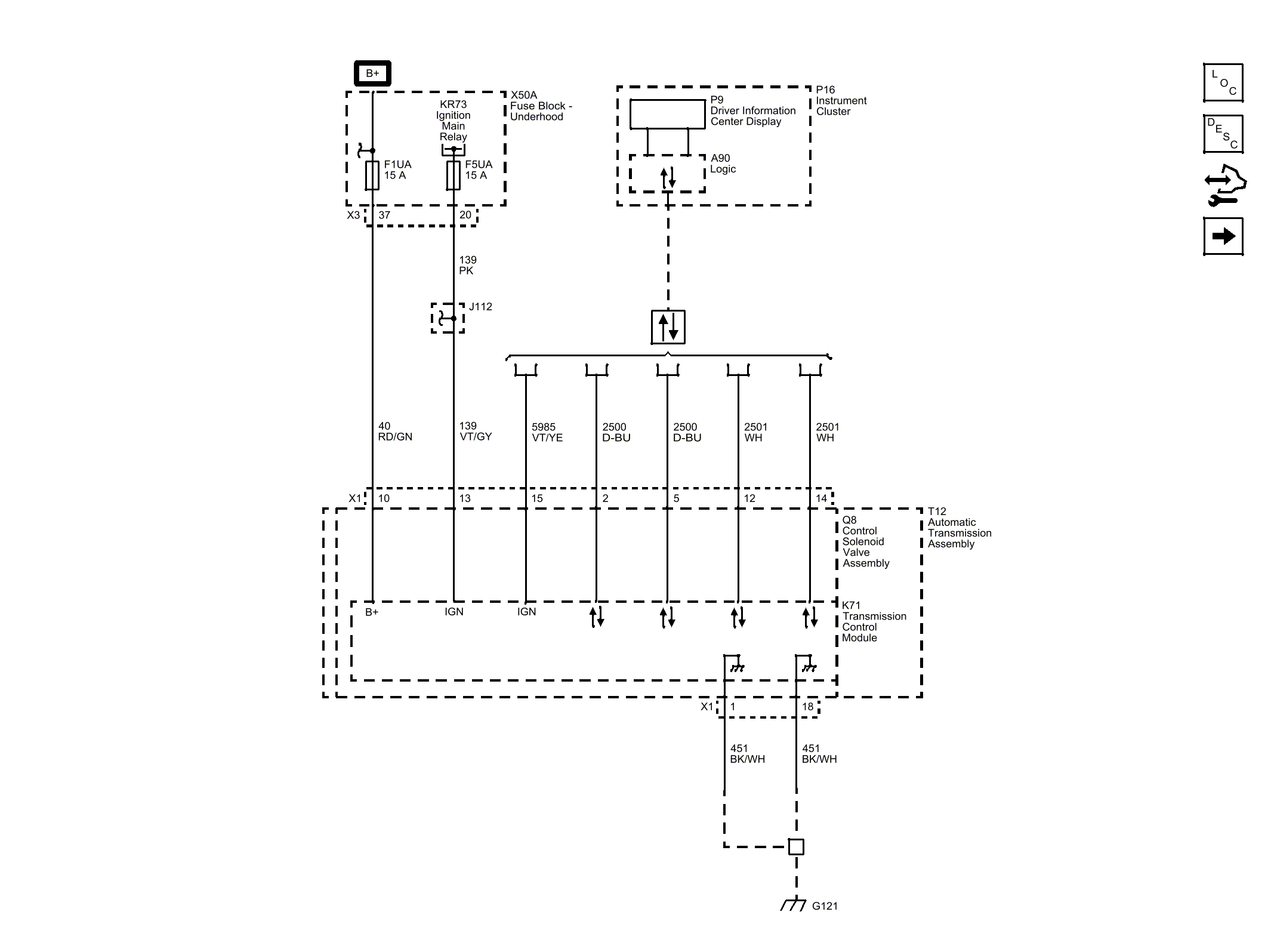

Home >> Buick >> 2015 >> Regal GS, AWD >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Automatic Transmission - 6T70 - Wiring Schematic Diagrams >> Schematic Wiring Diagrams >> Automatic Transmission Controls Wiring Schematics >> Power, Ground, Serial Data, and MIL
