Internal Mode Switch and Manual Shift Controls

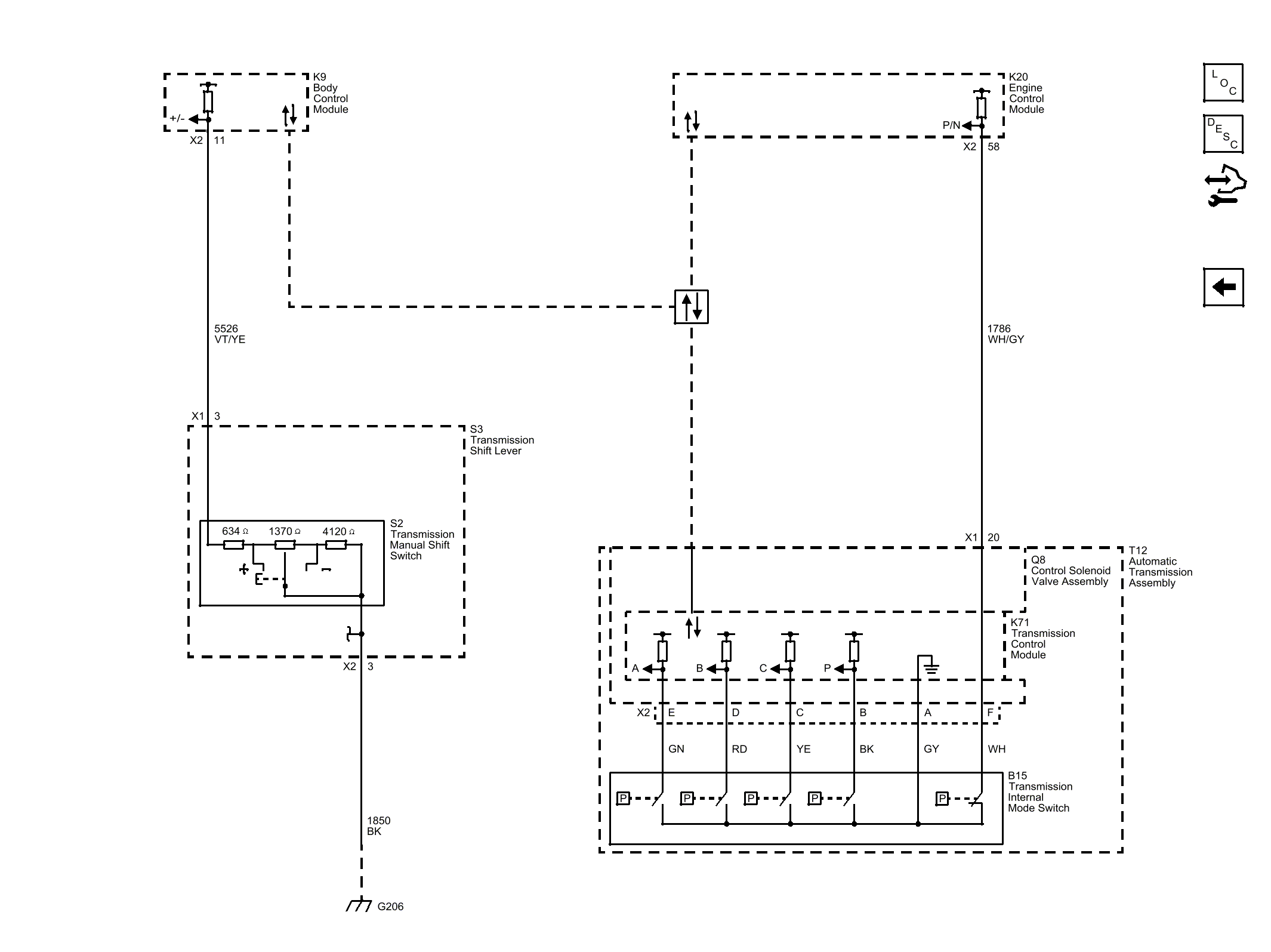

Fig 1: Internal Mode Switch and Manual Shift Controls

GM3770331

Courtesy of GENERAL MOTORS COMPANY
