Installation Procedure

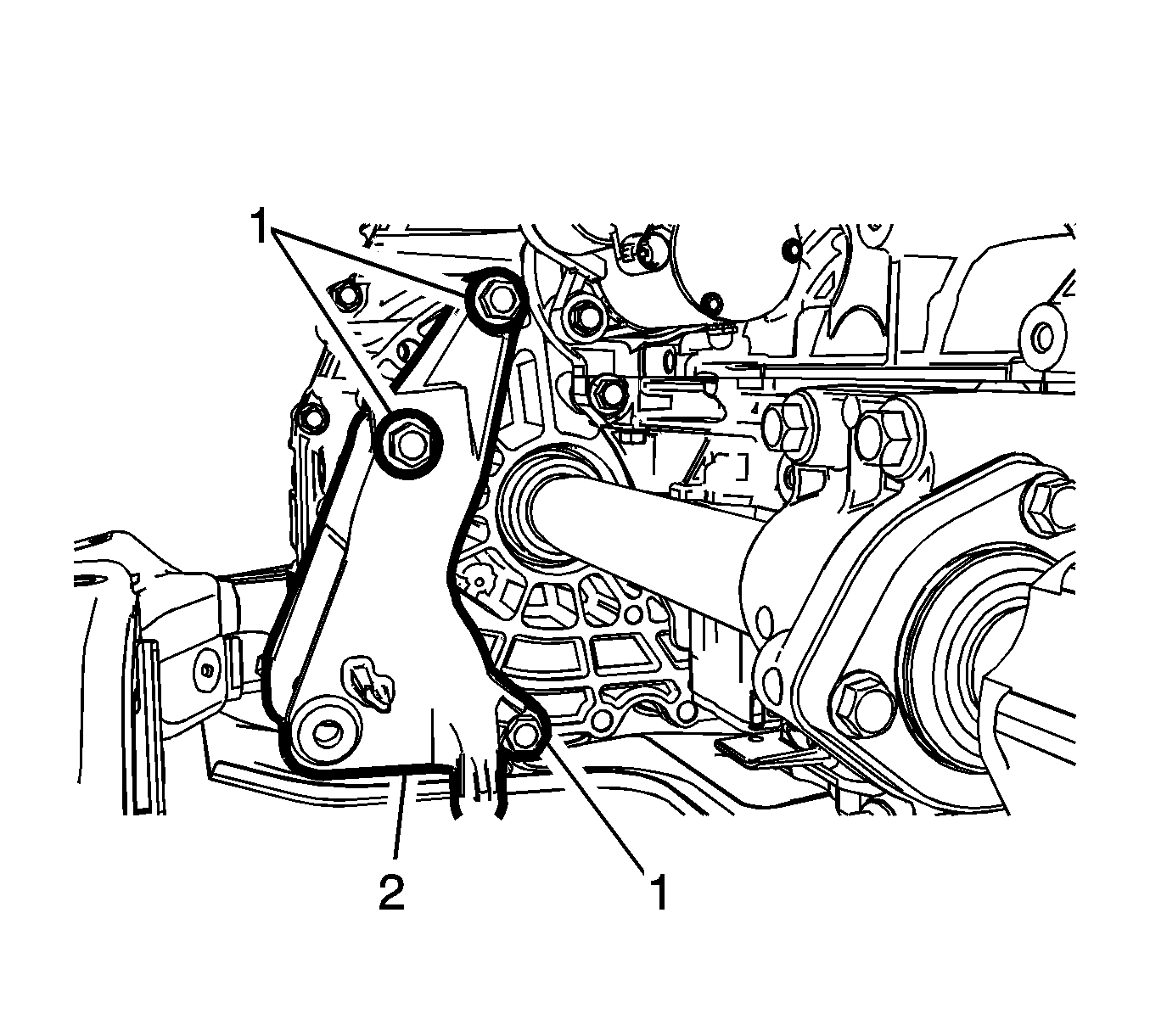

    Fig 1: Transmission Mount To Transmission Bolts
    GM3416795Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the three transmission mount bracket to transmission fasteners and tighten to 100 N.m (74 lb ft)
    2. Fig 2: Rear Transmission Mount Through Bolt
    GM2199347Courtesy of GENERAL MOTORS COMPANY
  2. Install the transmission mount to bracket through bolt (1) and tighten to 105 N.m (77 lb ft).
    3. Fig 3: Rear Mount To Frame Fasteners
    GM2199358Courtesy of GENERAL MOTORS COMPANY
  3. Install the rear mount to frame fasteners (1,2) and tighten to 110 N.m (81 lb ft) plus 120-130 degrees.
  4. Remove the jack stand.
  5. Install the left tire and wheel. Refer to Tire and Wheel Removal and Installation .
  6. Lower the vehicle.
