Installation Procedure

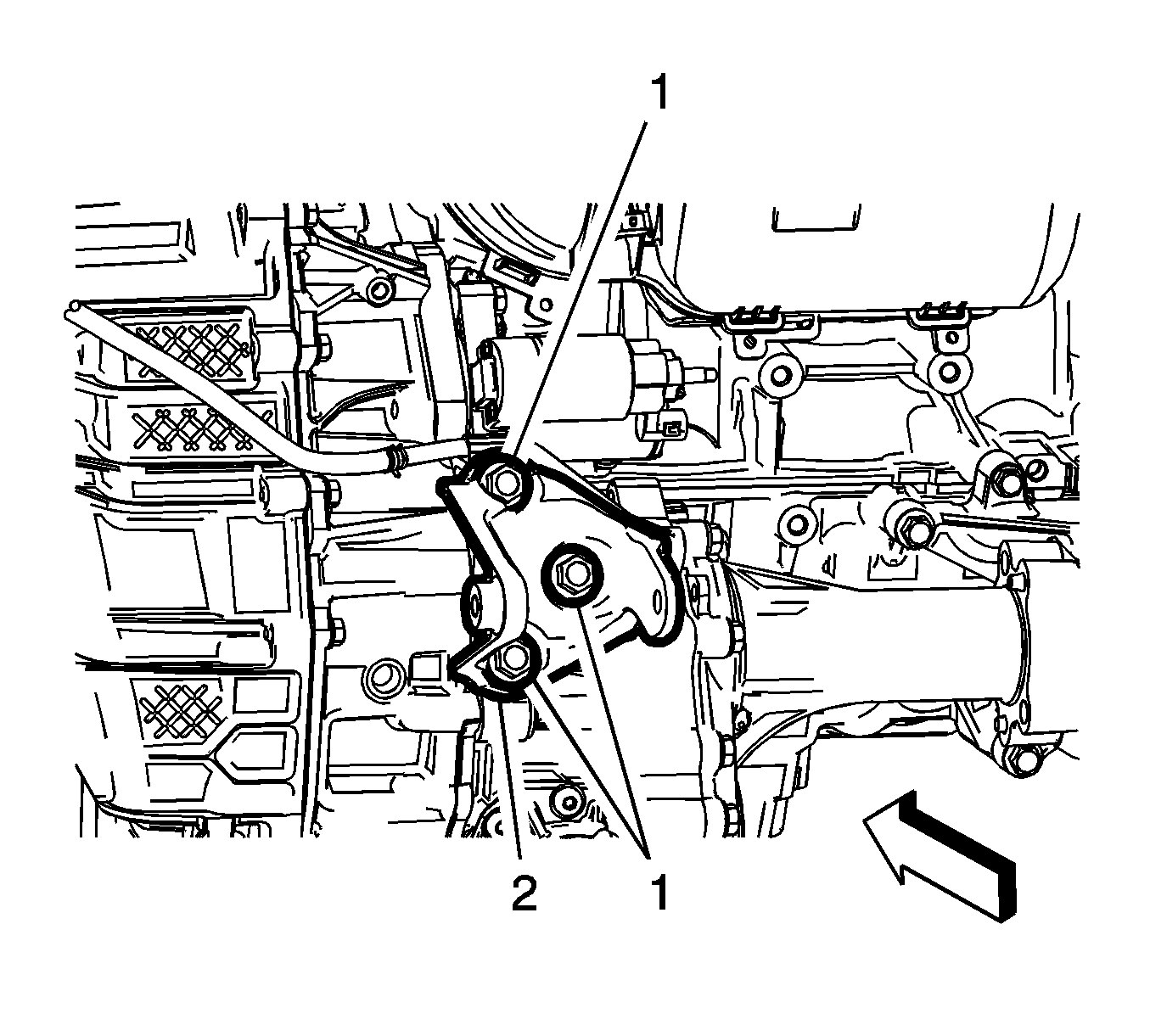

    Fig 1: Transmission Mount To Transmission Bolts
    GM3416740Courtesy of GENERAL MOTORS COMPANY
  1. Position the transmission mount bracket (2) to the transmission.
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the three transmission mount bracket to transmission fasteners (1) and tighten to 100 N.m (74 lb ft)

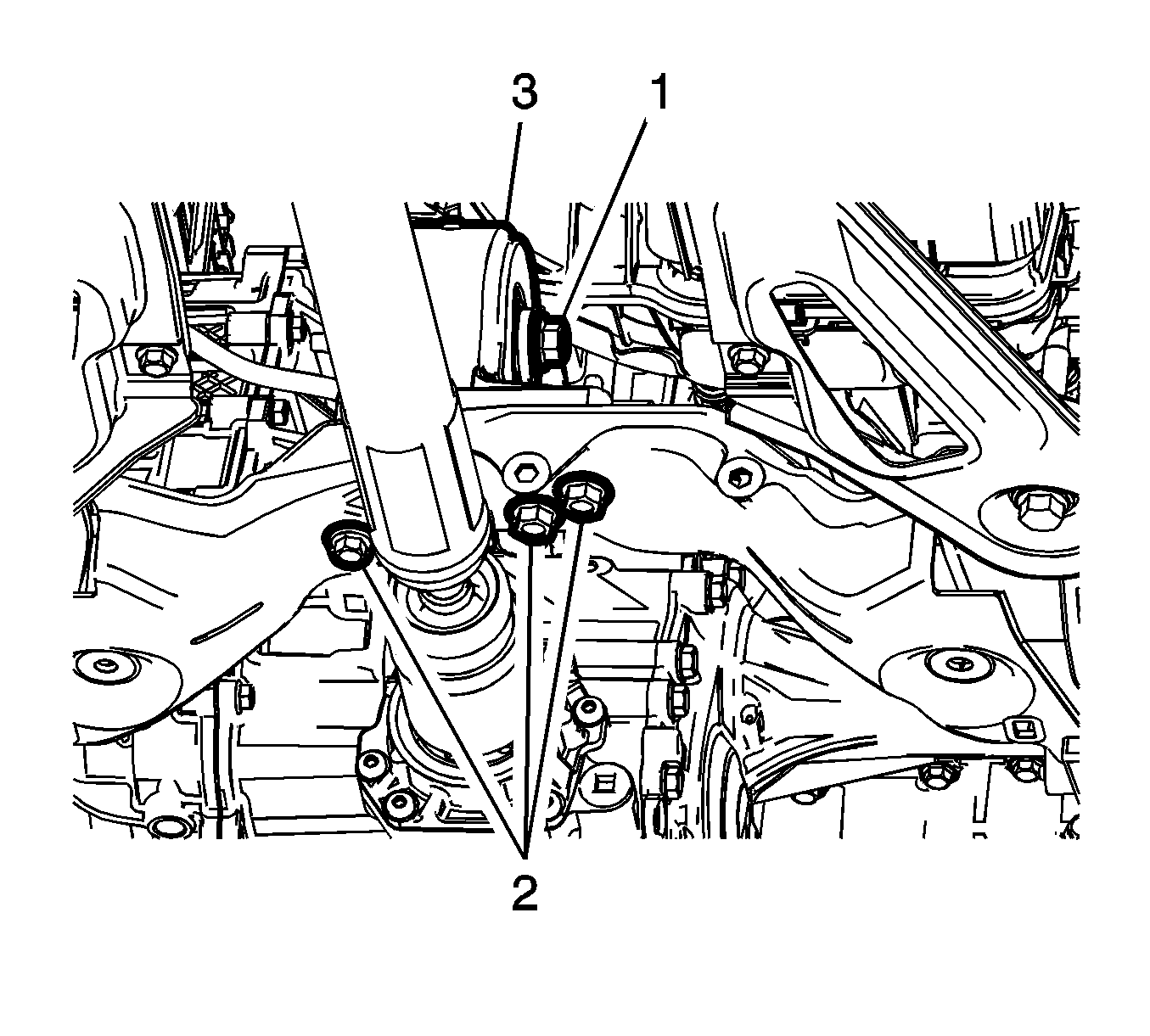

    3. Fig 2: Transmission Mount To Bracket Through Bolt
    GM3416743Courtesy of GENERAL MOTORS COMPANY
  3. Position the transmission mount (3) in the vehicle.
  4. Install the rear mount to frame fasteners (2) and tighten to 110 N.m (81 lb ft) plus 120-130 degrees.
  5. Install the transmission mount to bracket through bolt (1) and tighten to 105 N.m (77 lb ft).
  6. Remove the jack stand.
  7. Install the left tire and wheel. Refer to Tire and Wheel Removal and Installation .
  8. Lower the vehicle.
