Installation Procedure

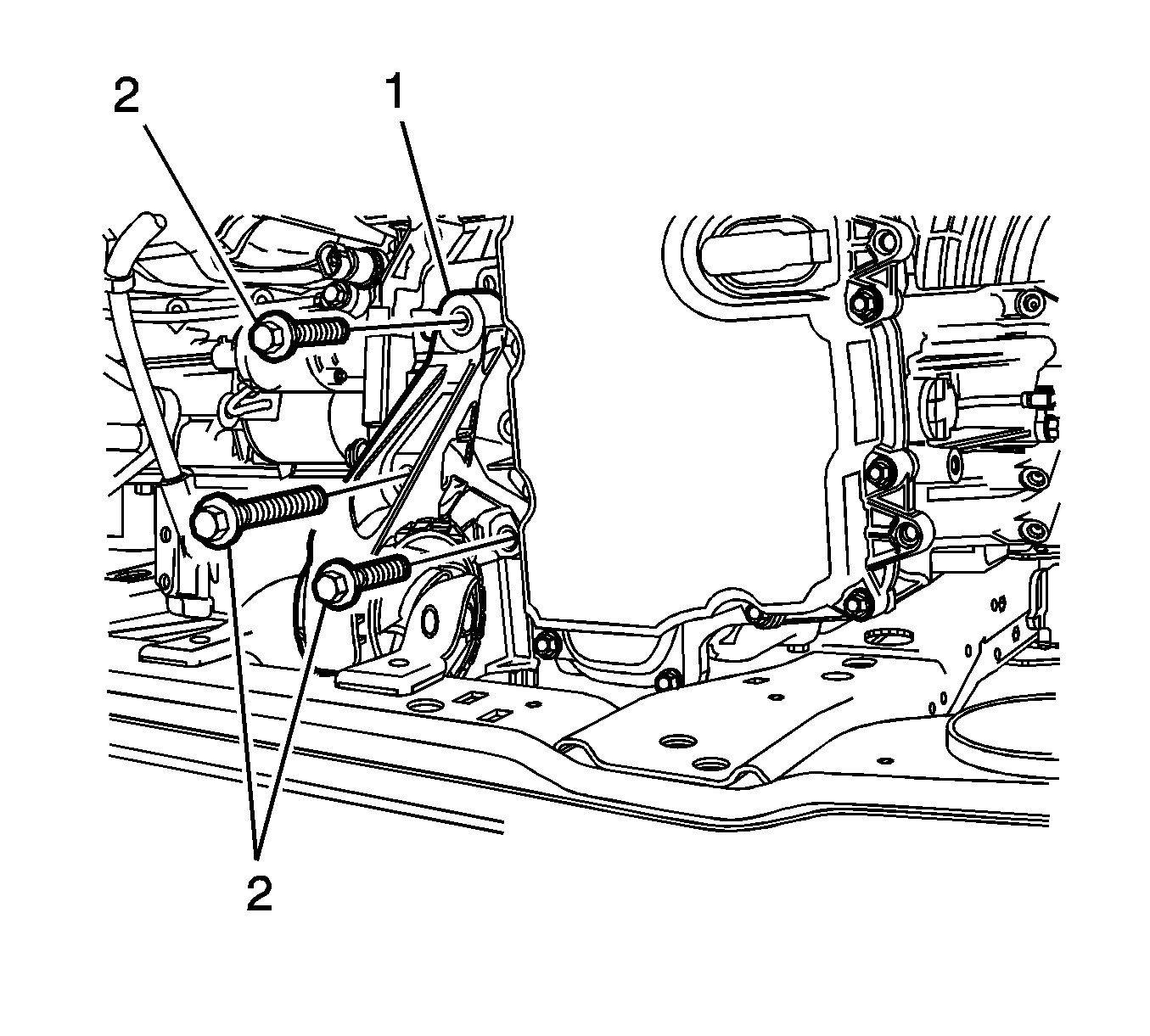

    Fig 1: Transaxle Mount & Attachment Bolts
    GM2199370Courtesy of GENERAL MOTORS COMPANY
  1. Install the transaxle mount (1).
    2. CAUTION:

    Refer to Fastener Caution .

  2. Install the NEW transaxle mount bolts (2) and tighten to 62 N.m (46 lb ft).
    3. Fig 2: Identifying Front Transmission Mount Through Bolt
    GM2199369Courtesy of GENERAL MOTORS COMPANY
  3. Install the transaxle mount through bolt (1) and tighten to 105 N.m (77 lb ft).
  4. Remove the jack from the transmission.
  5. Lower the vehicle.
