Transmission Control Replacement

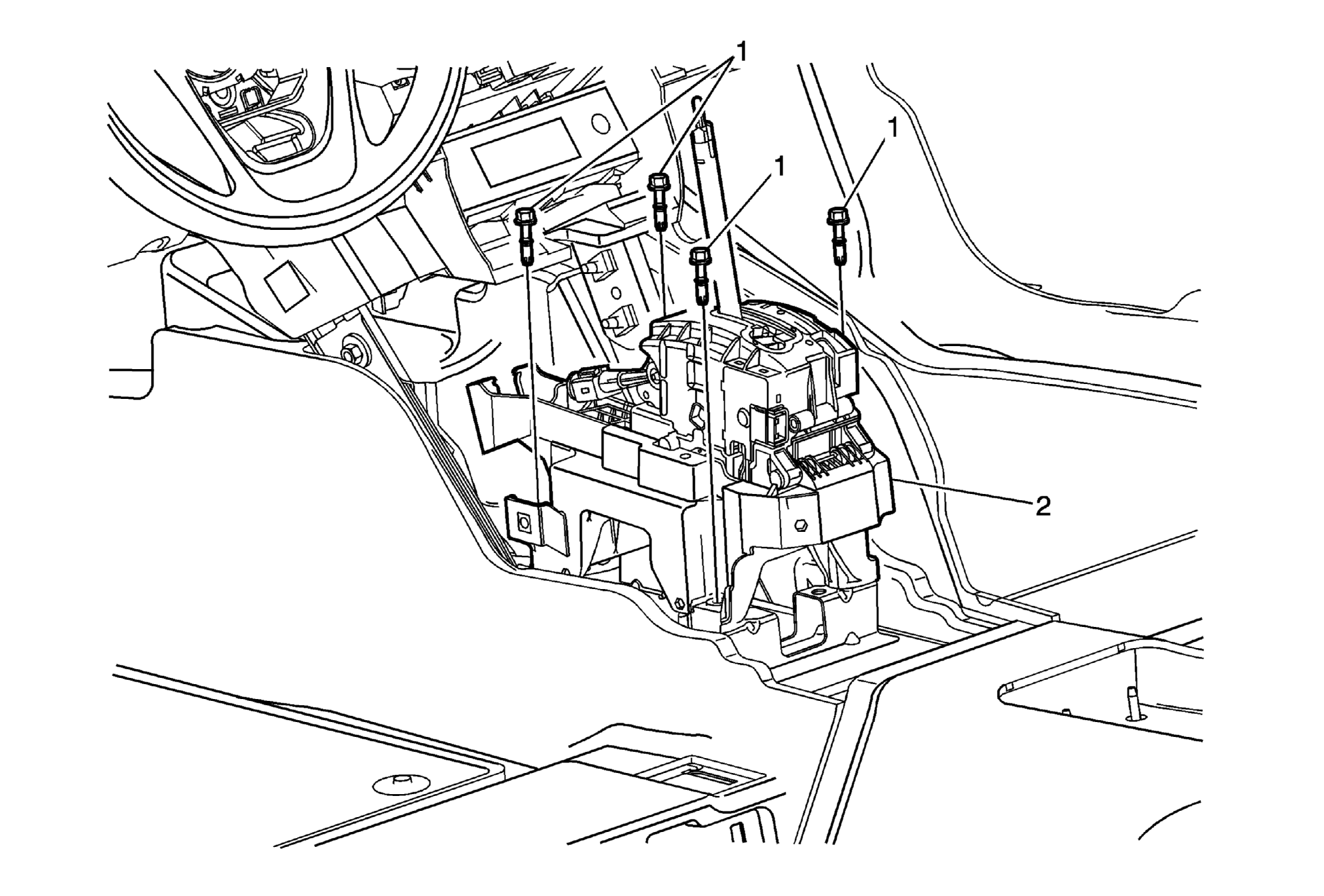

Fig 1: Transmission Control Module & Fasteners
GM2201052Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Remove the control lever boot. Refer to Transmission Control Lever Boot Replacement .
  2. Remove floor console. Refer to Front Floor Console Replacement .
1 Transmission Control Fastener (Qty:4)
CAUTION:

Refer to Fastener Caution .

Procedure

  1. Remove the clips on the wiring harness and disconnect the shift control electrical connector
  2. Disconnect the shift control cable.

Tighten
9 N.m (80 lb in)
2 Transmission Control
