Transmission Control Lever Boot Replacement

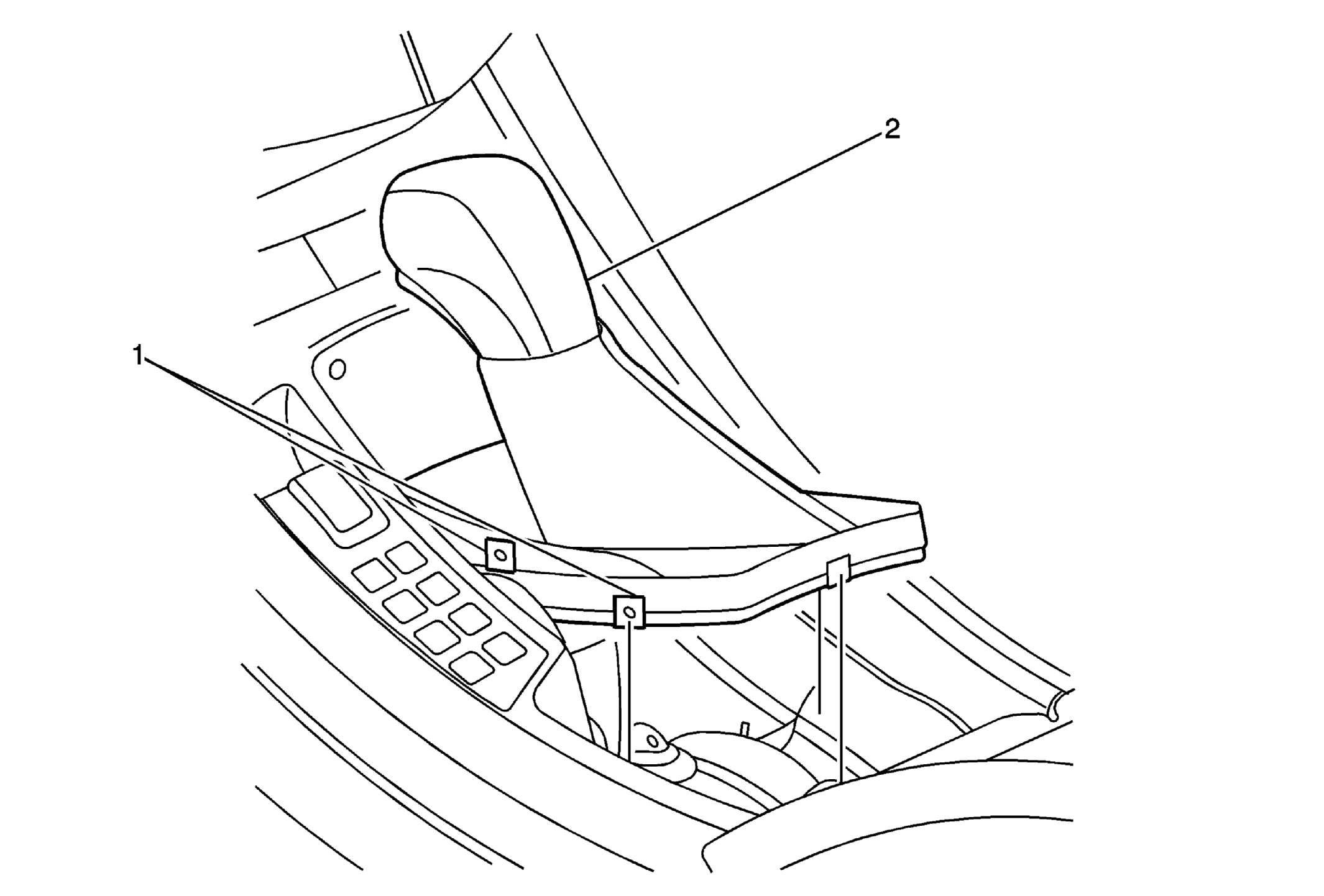

Fig 1: Transmission Control Lever Knob, Boot & Retainers
GM2306830Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Transmission Control Lever Knob Retainer (Qty:12)
Procedure
Use a flat-bladed plastic trim tool in order to release the retainer clips securing the control lever boot.
2 Transmission Control Lever Knob
NOTE:
  • The control lever boot and knob are replaced as an assembly.
  • To remove the knob, pull upward and twist.
