Torque Converter and Differential Housing, Front Differential Transfer Drive Gear, and Front Differential Carrier Removal

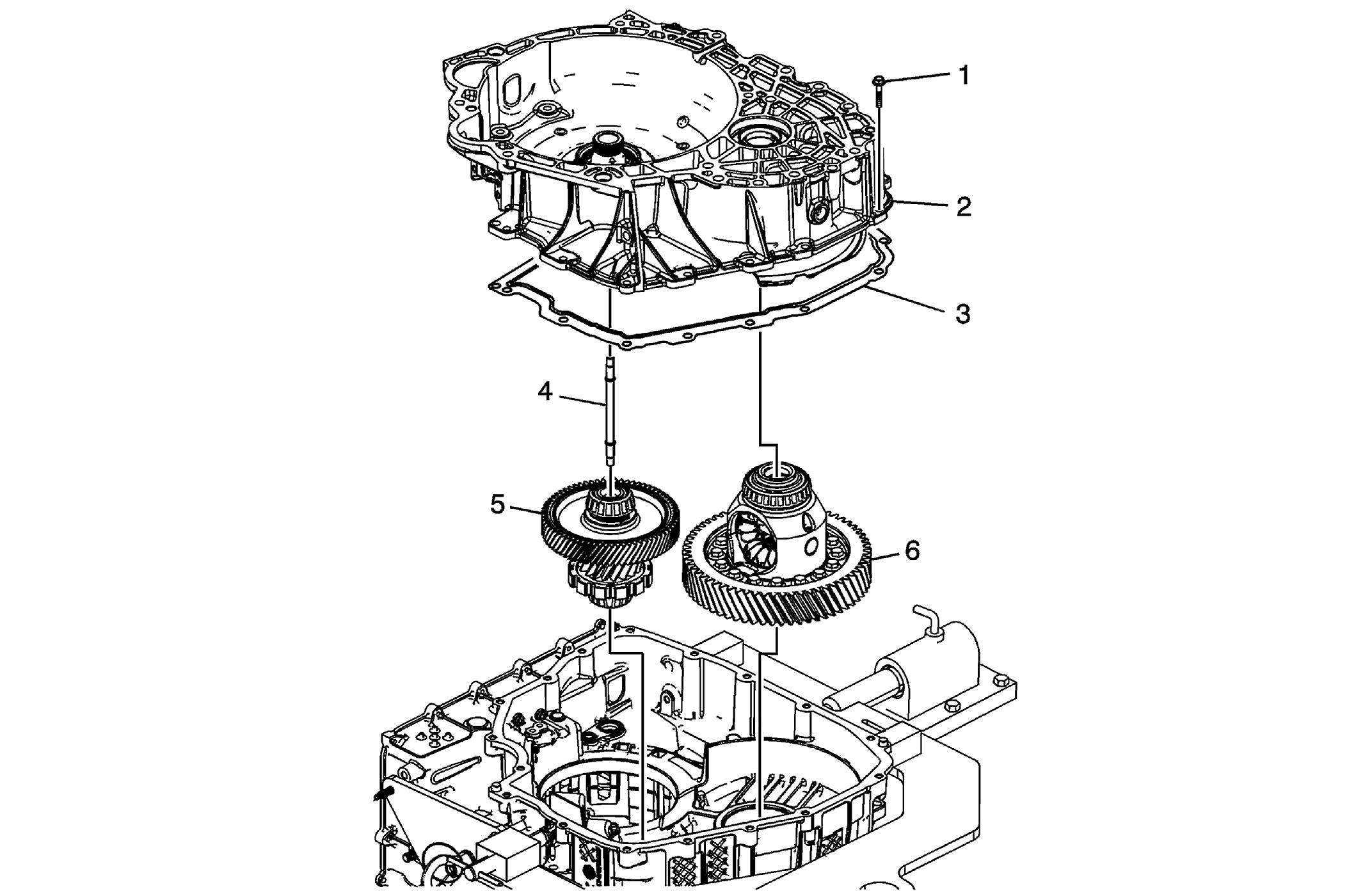

Fig 1: Identifying Torque Converter, Differential Housing, Front Differential Transfer Drive Gear & Front Differential Carrier
| Callout | Component Name |
|---|---|
| 1 | Torque Converter and Differential Housing Bolt M8x35 (Qty: 17) |
| 2 | Torque Converter, Support and A/Trans Fluid Pump Housing Assembly |
| 3 | Torque Converter Housing Outer Seal
NOTE:
The seal is not reusable. |
| 4 | Front Differential Drive Pinion Gear Lube Tube |
| 5 | Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly |
| 6 | Front Differential Carrier Assembly |
