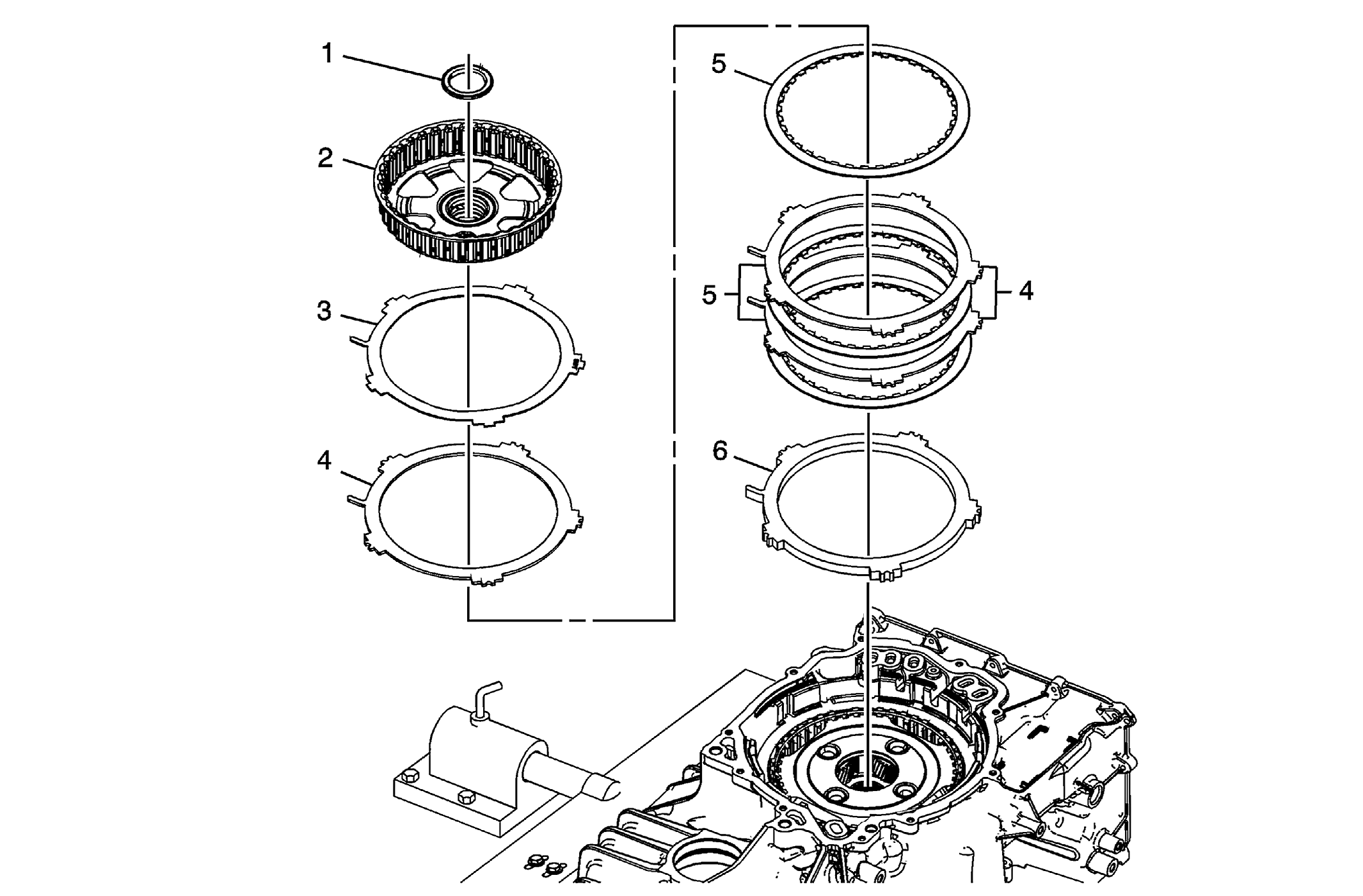

Reaction Carrier Hub and 2-6 Clutch Plate Removal
| Callout | Component Name |
|---|---|
| 1 | 2-6 Clutch Hub Thrust Bearing Assembly
NOTE:
The 2-6 clutch hub thrust bearing assembly may be stuck to the reaction carrier hub assembly. |
| 2 | Reaction Sun Gear Assembly |
| 3 | 2-6 Clutch Cushion Spring |
| 4 | 2-6 Clutch Plate (Qty: 3) |
| 5 | 2-6 Clutch (w/Friction Material) Plate Assembly (Qty: 3) |
| 6 | 2-6 Clutch Backing Plate |
