Reaction Carrier Cleaning and Inspection

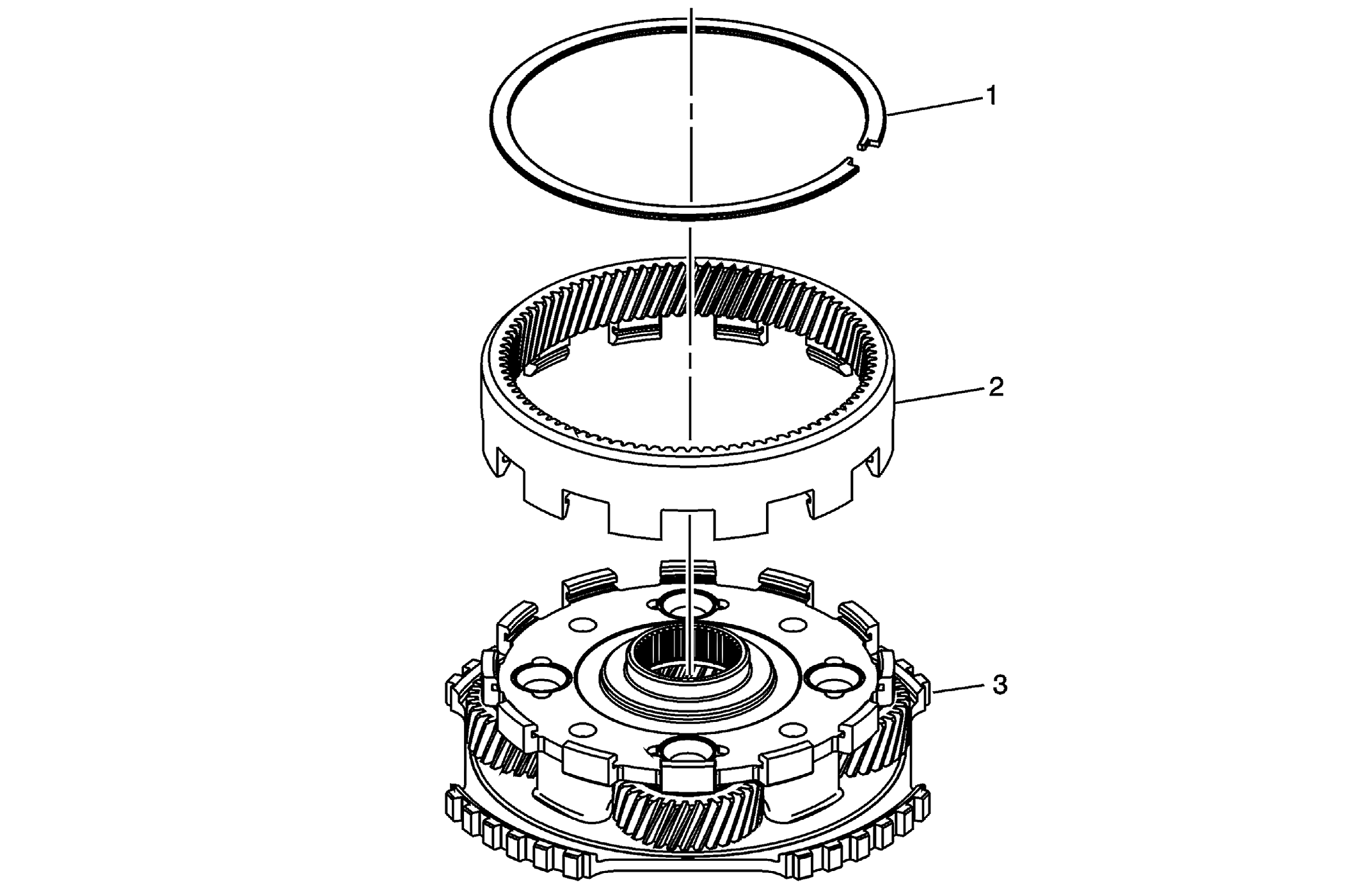

Fig 1: View Of Reaction Carrier Assembly & Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Clean and Inspect the carrier as an assembly. If wear or damage is found disassemble to replace the affected component.
1	Input Internal Gear Retaining Ring
2	Input Internal Gear
3	Reaction Carrier Assembly
