Output Carrier Cleaning and Inspection

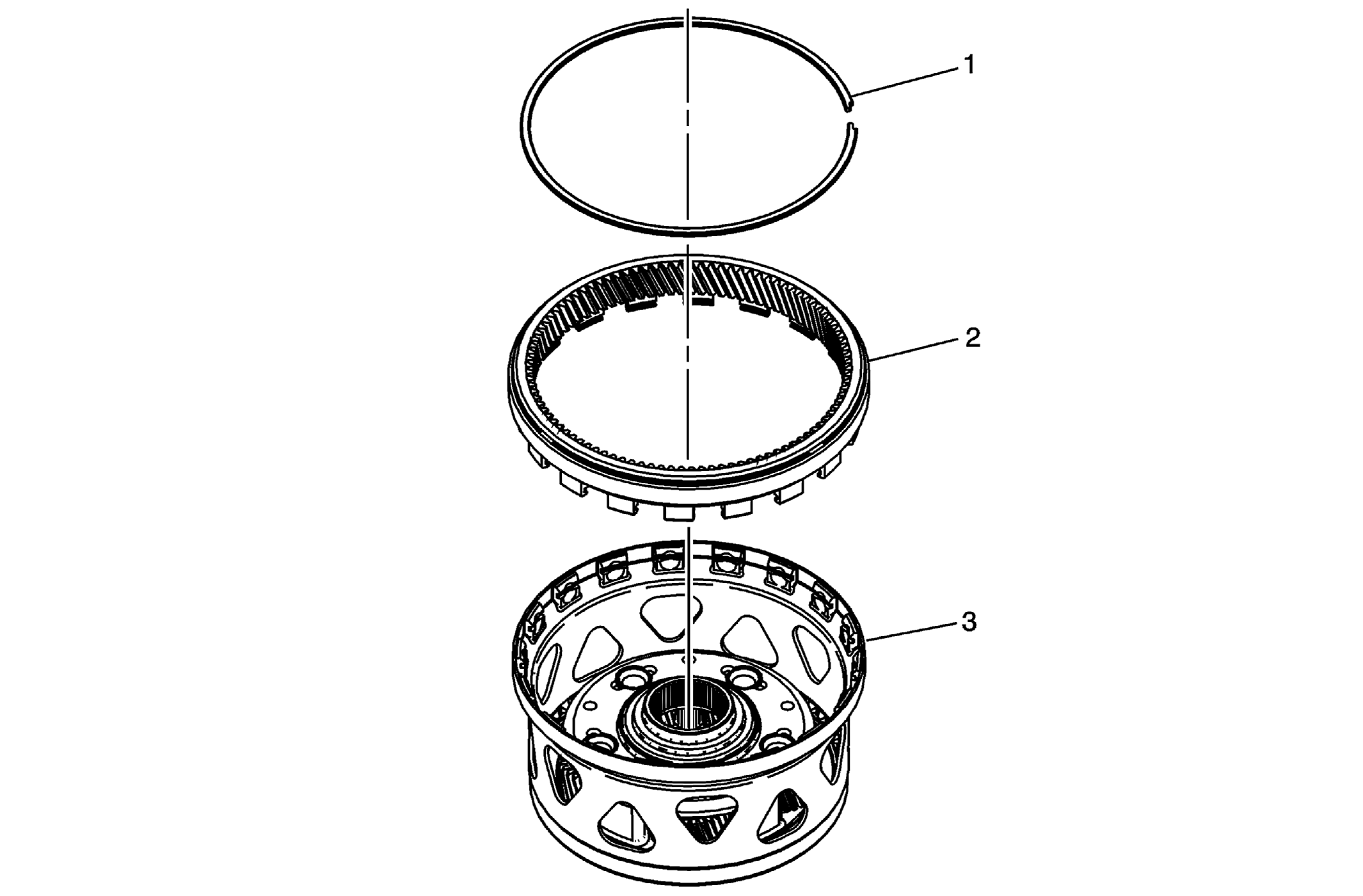

Fig 1: View Of Output Carrier Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures  Clean and Inspect the carrier as an assembly. If wear or damage is found disassemble to replace the affected component.
1	Reaction Internal Gear Retaining Ring
2	Reaction Carrier Internal Gear
3	Output Carrier Assembly
