Low and Reverse Clutch and 1-2-3-4 Clutch Plate Removal

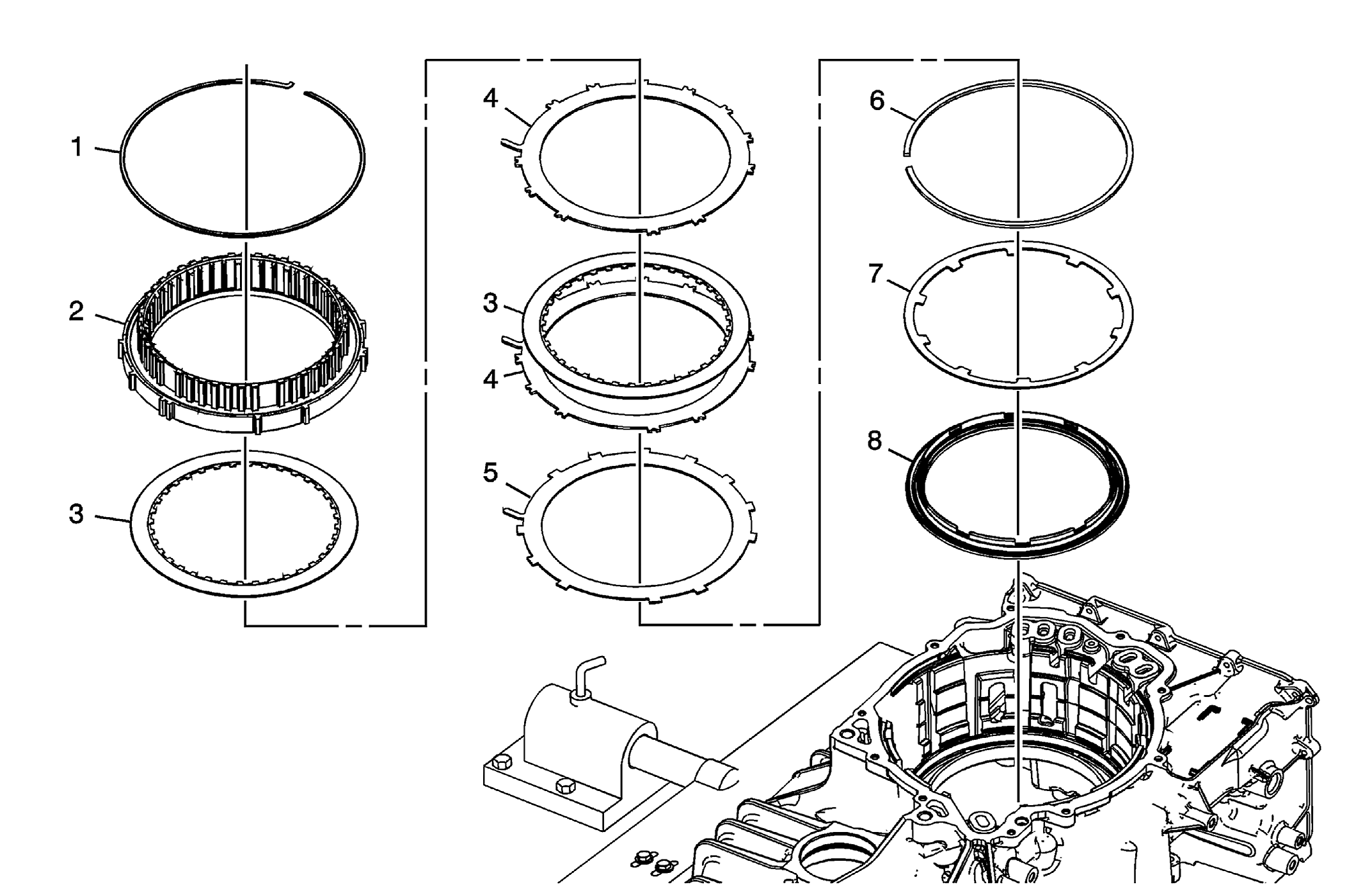

Fig 1: Identifying Low, Reverse Clutch & 1-2-3-4 Clutch Plates

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Low and Reverse Clutch Retainer Ring
2	Low and Reverse Clutch Assembly
3	1-2-3-4 Clutch (w/Friction Material) Plate Assembly (Qty: 2)
4	1-2-3-4 Clutch Plate (Qty: 2)
5	1-2-3-4 Clutch (Waved) Plate
6	1-2-3-4 Clutch Spring Retainer Ring
7	1-2-3-4 Clutch Spring
8	1-2-3-4 Clutch Piston NOTE: Use pliers to remove the piston. Inspect the piston seals for damage and/or wear. The piston is reusable.
