Low and Reverse Clutch Plate Removal

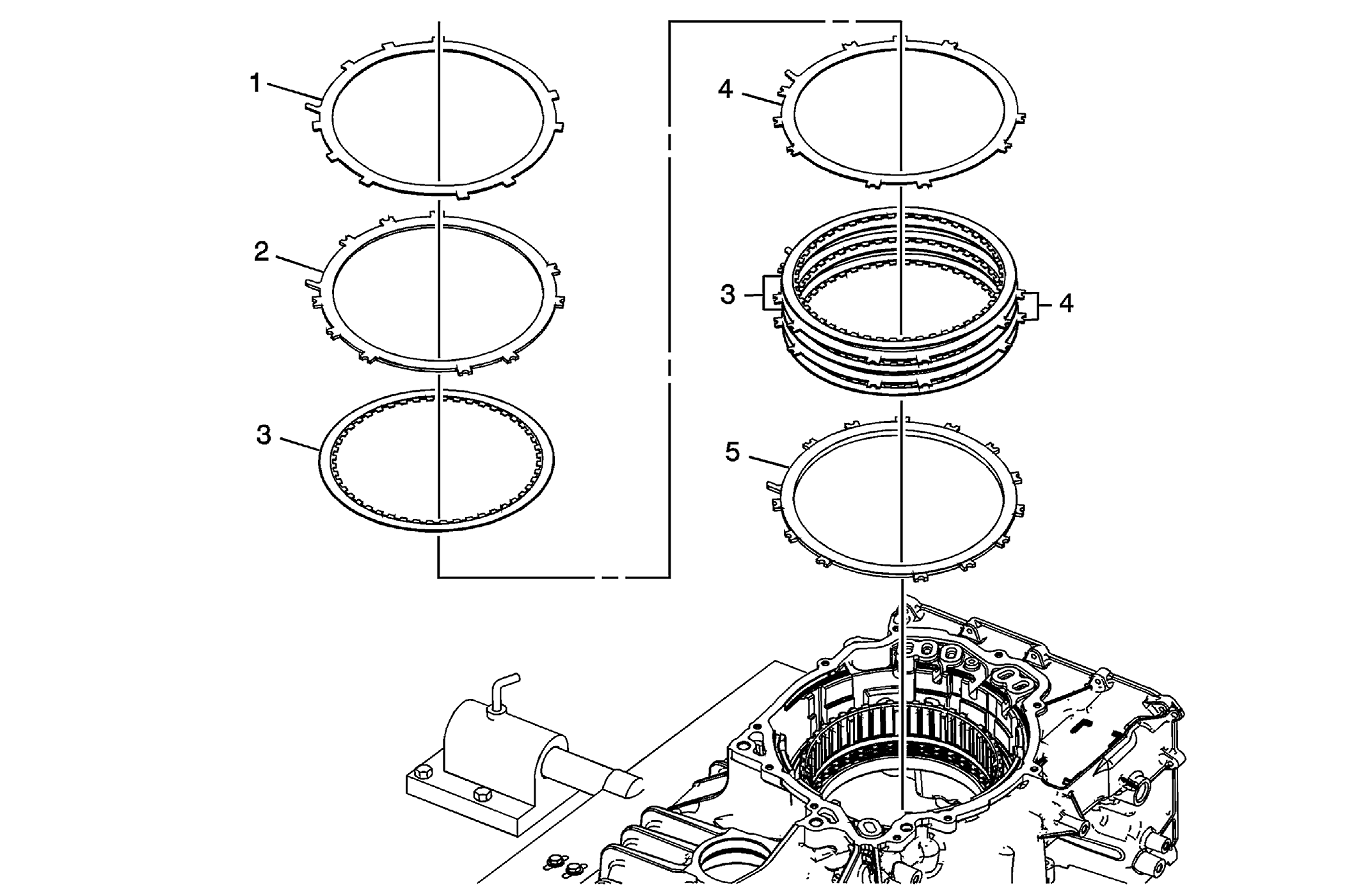

Fig 1: Identifying Low & Reverse Clutch Plate

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Low and Reverse Clutch Cushion (Waved) Spring
2	Low and Reverse Clutch Apply Plate
3	Low and Reverse Clutch (w/Friction Material) Plate Assembly (Qty: 4)
4	Low and Reverse Clutch Plate (Qty: 3)
5	Low and Reverse Clutch Backing Plate
