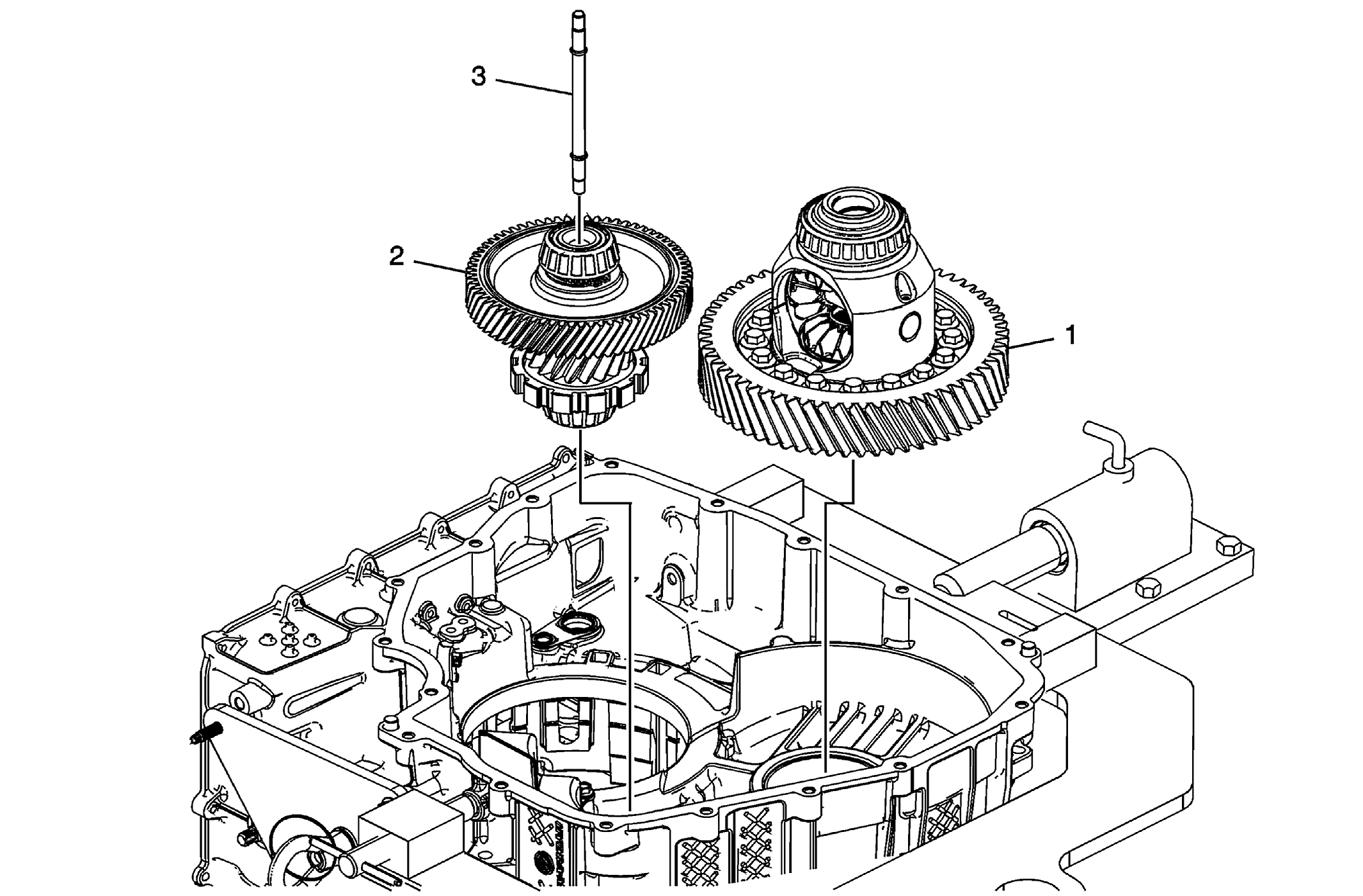

Front Differential Drive Pinion Gear and Carrier Installation
| Callout | Component Name |
|---|---|
| 1 | Front Differential Carrier Assembly
NOTE:
Install the differential assembly and the pinion gear assembly together to avoid interference with the gears during installasion. |
| 2 | Front Differential Drive Pinion (w/Transfer Gear) Gear Assembly |
| 3 | Front Differential Drive Pinion Gear Lube Tube |
