Control Valve Body Cover Removal
Control Valve Body Cover Removal

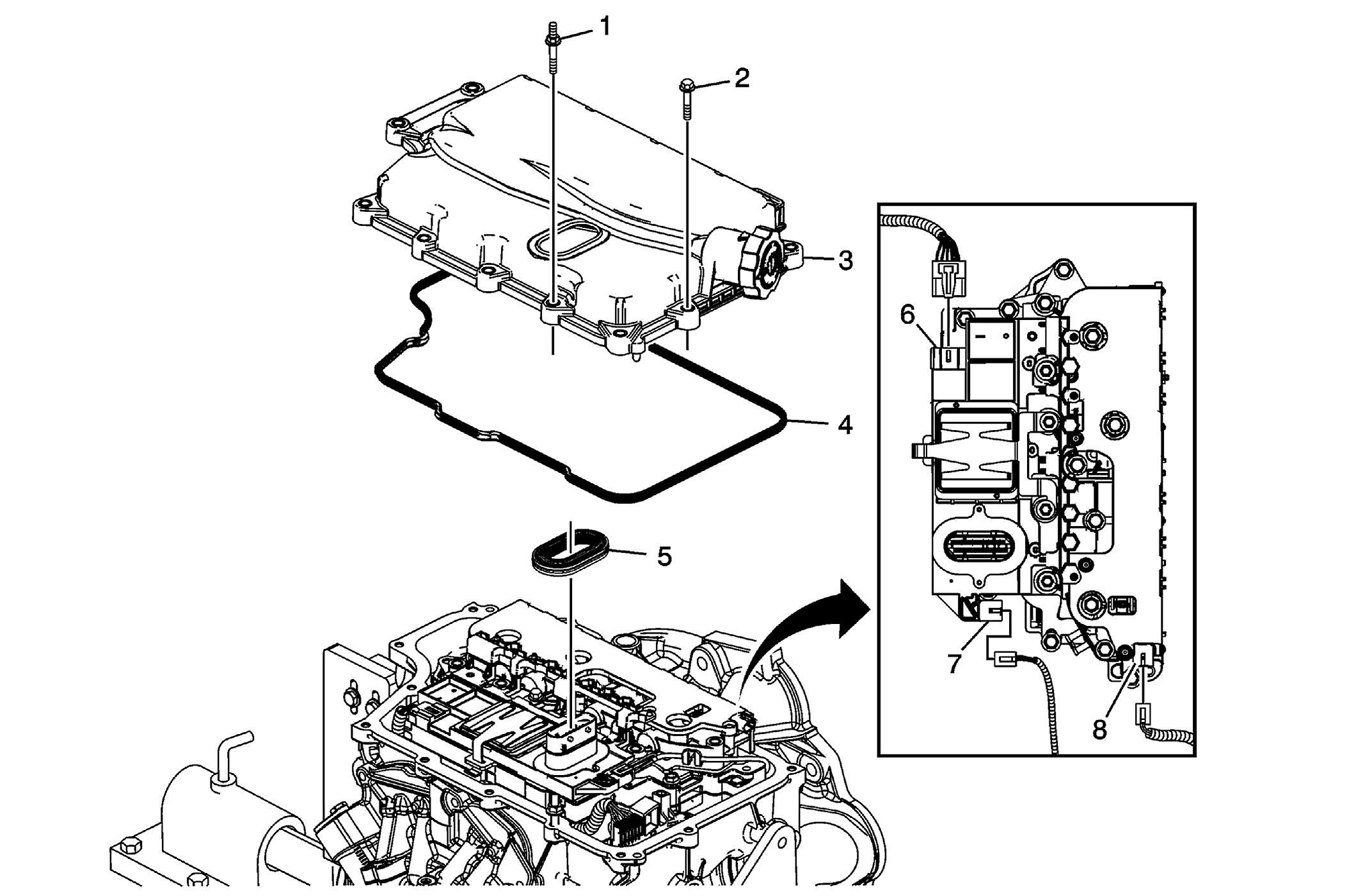

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Cover Stud M6x30 (Qty: 3) |
| 2 | Control Valve Body Cover Bolt M6x30 (Qty: 11) |
| 3 | Control Valve Body Cover |
| 4 | Control Valve Body Cover Gasket
NOTE:
Do not re-use the valve body cover gasket. |
| 5 | Control Valve Body Cover Wiring Connector Hole Seal
CAUTION:
Support the control solenoid valve assembly around the connector when removing the seal. Excessive pulling force can damage the internal electrical connections. |
| 6 | Shift Position Switch Connector |
| 7 | Output Speed Sensor Connector |
| 8 | Input Speed Sensor Connector |
