Control Solenoid (w/Body and TCM) Valve Assembly Removal
Control Solenoid (w/Body and TCM) Valve Assembly Removal

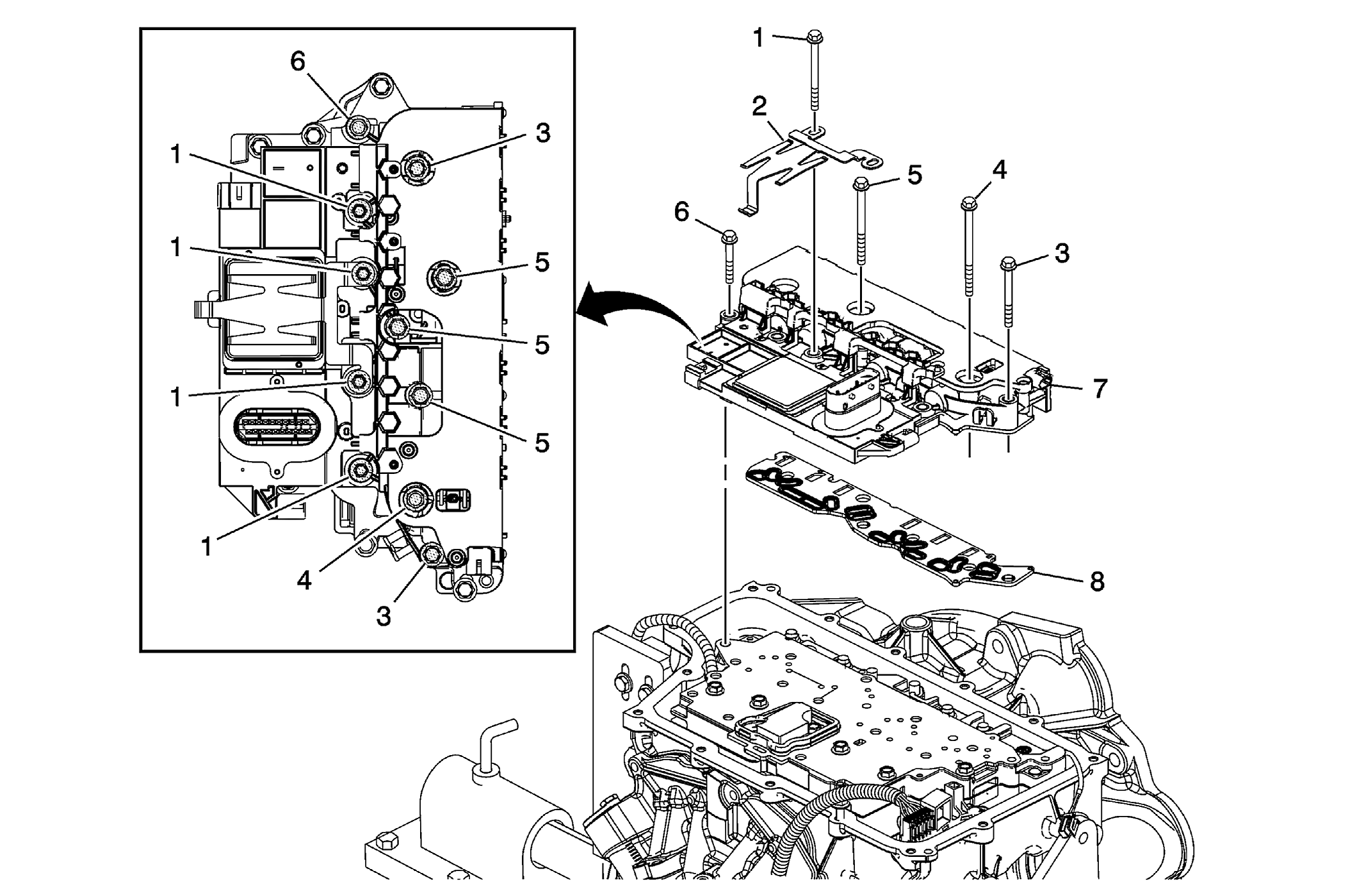

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Bolt M6x80 (Qty: 4) |
| 2 | Control Solenoid Valve Spring |
| 3 | Control Valve Body Bolt M6x65 (Qty: 2) |
| 4 | Control Valve Body Bolt M6x42 (Qty: 1) |
| 5 | Control Valve Body Bolt M6x95 (Qty: 3) |
| 6 | Control Valve Body Bolt M6x55 (Qty: 1) |
| 7 | Control Solenoid (w/Body and TCM) Valve Assembly |
| 8 | Control Solenoid Valve Assembly Filter Plate
CAUTION:
Use care when removing or installing the filter plate assembly. A broken or missing retaining tab may not adequately secure the filter plate to the control solenoid valve assembly, resulting in possible damage or contamination.
NOTE:
Discard the filter plate, it is not reusable. |
