Lower and Upper Body Assemble
Lower and Upper Body Assemble

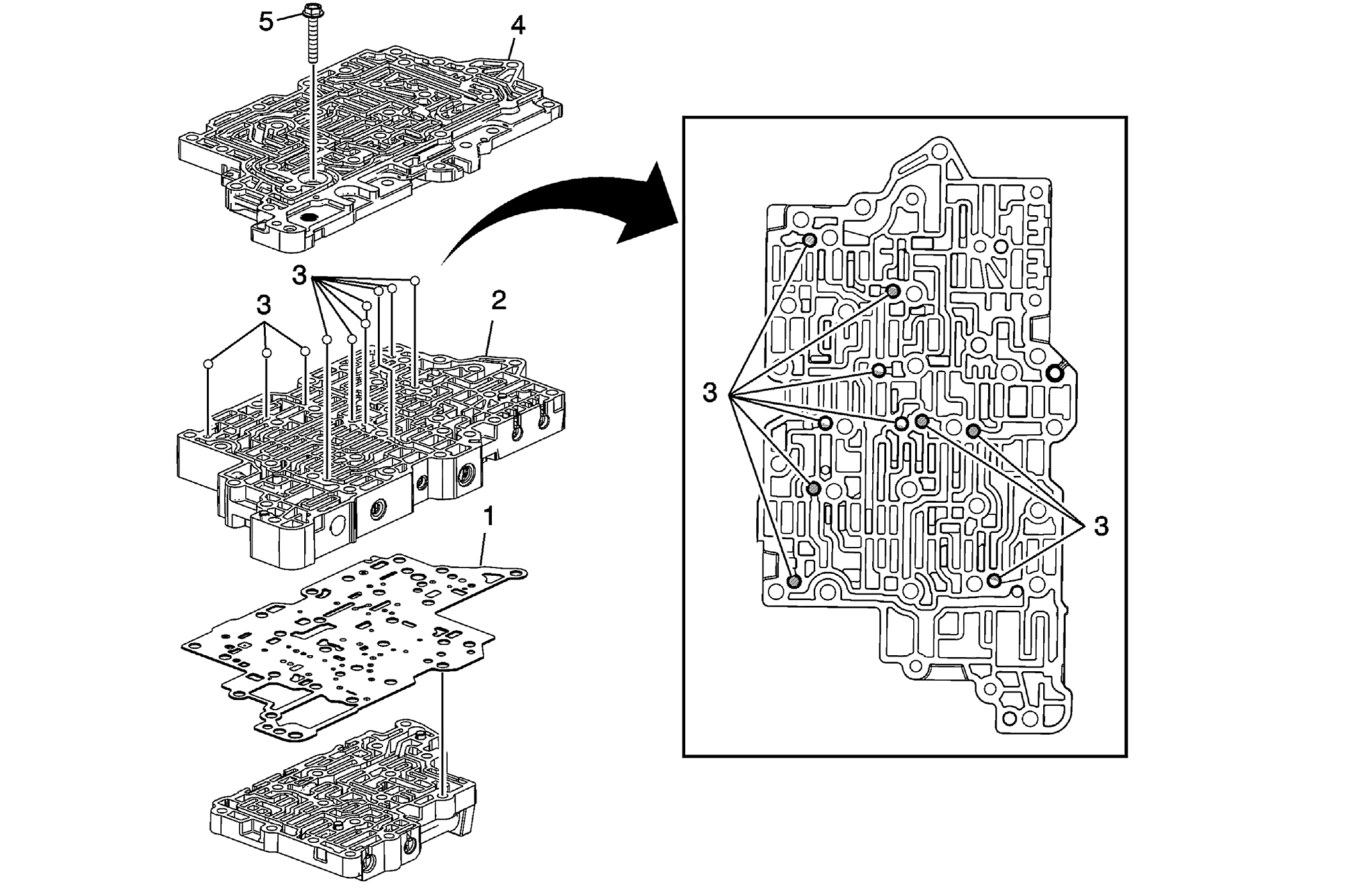

| Callout | Component Name |
|---|---|
| 1 | Control Valve Lower Body Spacer Plate Assembly
CAUTION:
Do not use the old spacer plate. Install a NEW spacer plate. Reusing an old spacer plate may cause internal transmission leaks and transmission damage.
NOTE:
Inspect the upper channel plate bolt through holes for damage or brinelling. Any damage around the PCS switch feed holes could cause leakage around the PCS switch seals. Replace as necessary. |
| 2 | Control Valve Upper Body Assembly |
| 3 | Control Valve Body Ball Check Valve (Qty: 10)
CAUTION:
Do not use any type of grease or other material to hold the check ball valves in place during assembly. Grease will cause the valves to not operate properly, resulting in damage to the transmission. |
| 4 | Control Valve Channel Plate Assembly |
| 5 | Control Valve Body Bolt 6x55 (Qty: 1)
CAUTION:
Refer to Fastener Caution . Tighten 12 N.m (9 lb ft) |
