Case Cover and 3-5-Reverse and 4-5-6 Clutch Housing Removal

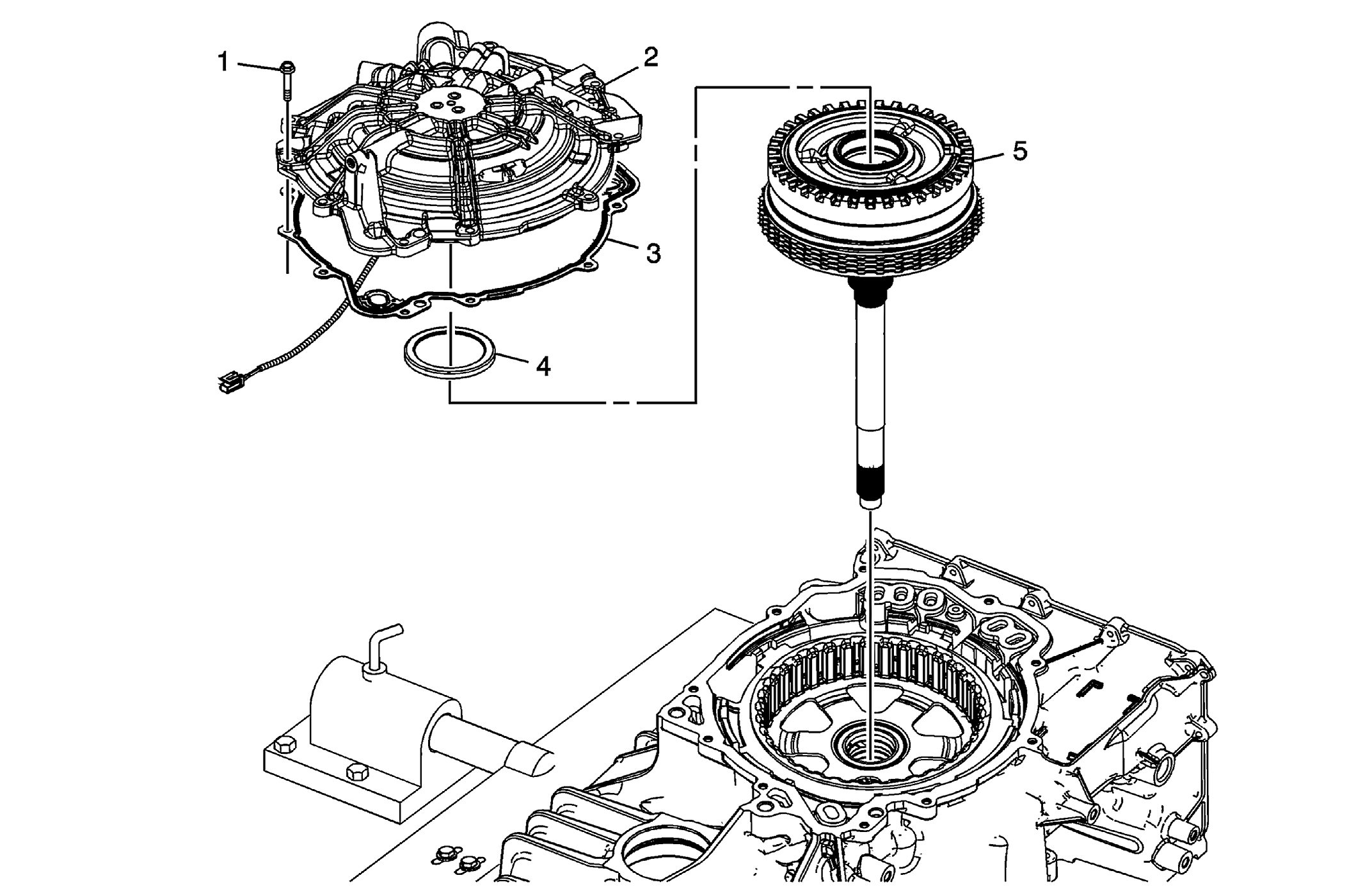

Fig 1: Identifying Case Cover, 3-5-Reverse & 4-5-6 Clutch Housing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	A/Trans Case Cover Assembly Bolt M6x30 (Qty:10)
2	A/Trans Case Cover Assembly CAUTION: Use care when pulling the input speed sensor wire harness through the case to avoid damaging the harness.
3	A/Trans Case Cover Gasket NOTE: The gasket is not reusable.
4	Input Shaft Thrust Bearing Assembly NOTE: The bearing may be stuck to the case cover.
5	3-5-Rev/4-5-6 Clutch Housing Assembly
