Low and Reverse Clutch Piston Removal

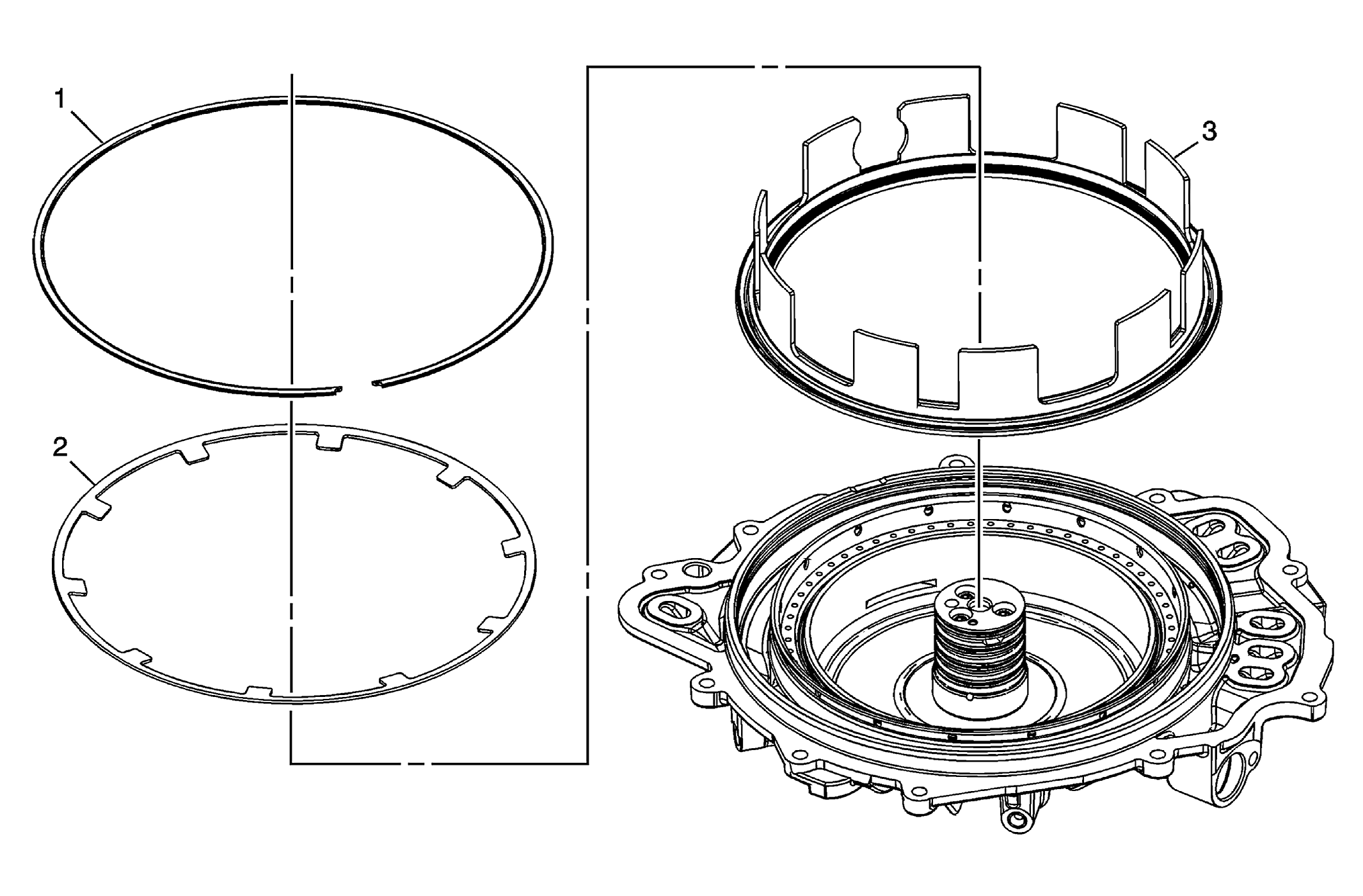

Courtesy of GENERAL MOTORS COMPANY Low and Reverse Clutch Piston Removal
| Callout |
Component Name |
| 1 |
Low and Reverse Clutch Spring Retaining Ring |
| 2 |
Low and Reverse Clutch Spring |
| 3 |
Low and Reverse Clutch Piston Assembly
NOTE:
Inspect piston seals for damage and/or wear. Piston is reusable.
|
