Automatic Transmission - 6T70 - Repair Instructions - Off Vehicle
>>
Repair Instructions - Off Vehicle
>>
3-5-Reverse and 4-5-6 Clutch Housing Disassemble
>>
Clutch Plate Removal
Clutch Plate Removal

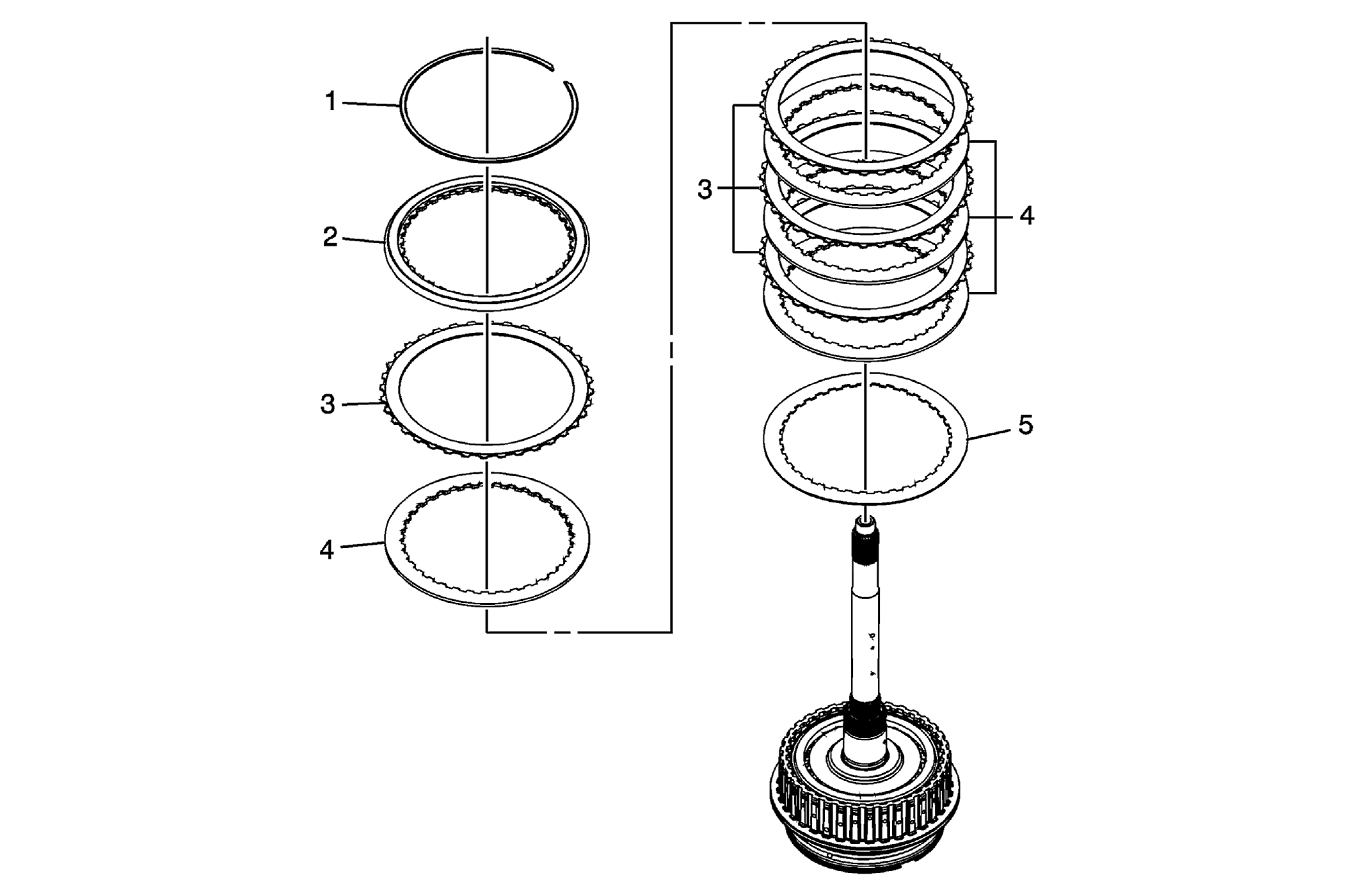

Fig 1: View Of 3-5 Reverse Clutch Plates
Courtesy of GENERAL MOTORS COMPANY
Clutch Plate Removal
Callout
Component Name
1
3-5-Reverse Clutch Backing Plate Retaining Ring
2
3-5-Reverse Clutch Backing Plate
3
3-5-Reverse Clutch (w/Friction Material) Plate Assembly (Qty: 4)
4
3-5-Reverse Clutch Plate (Qty: 4)
5
3-5-Reverse Clutch (Waved) Plate
