4-5-6 Clutch Hub Removal
4-5-6 Clutch Hub Removal

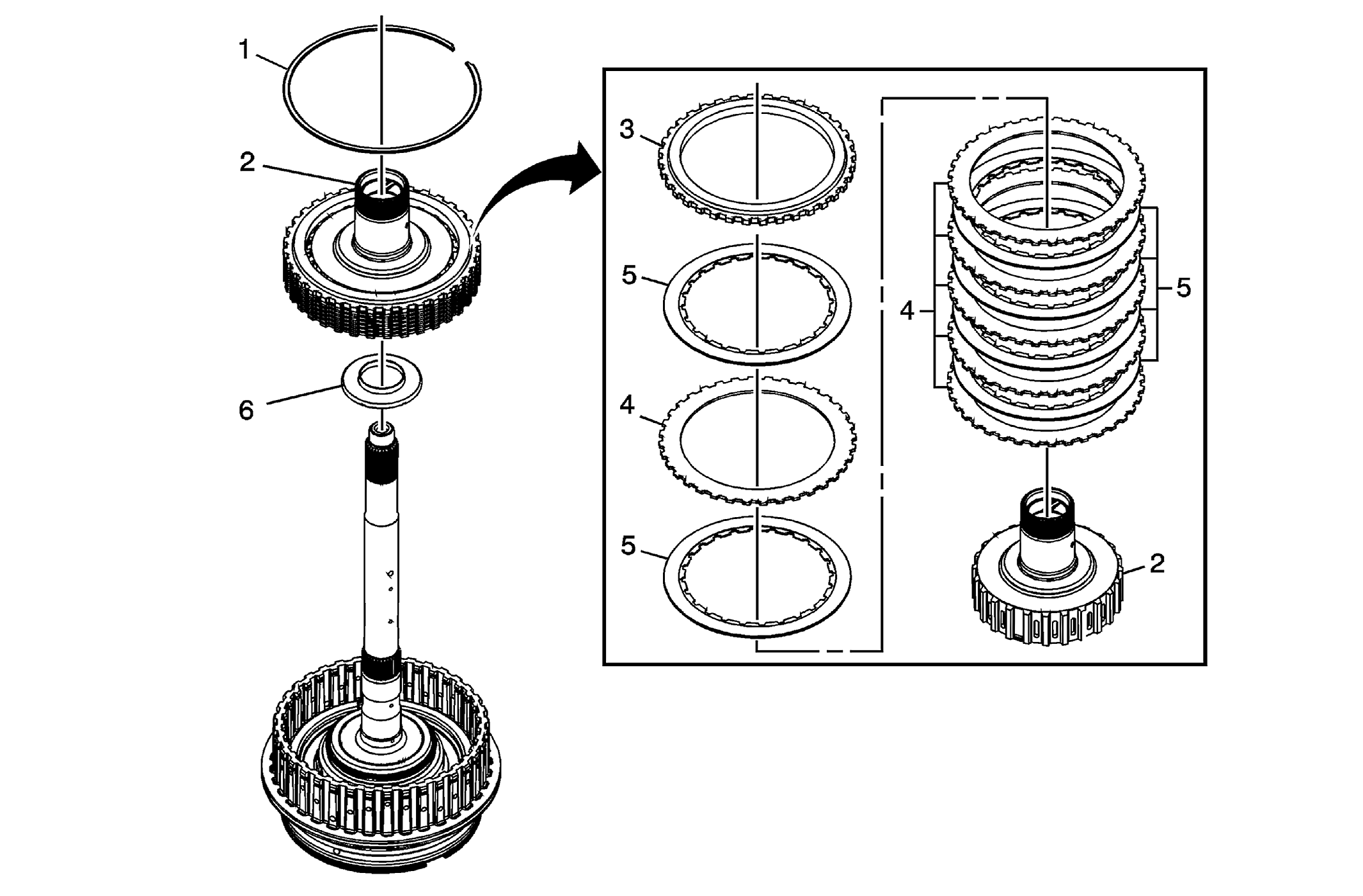

| Callout | Component Name |
|---|---|
| 1 | 4-5-6 Backing Plate Retaining Ring
NOTE:
Gently push down on the backing plate to get enough clearance between the backing plate and retainer. |
| 2 | Reaction Carrier Hub Assembly
NOTE:
The clutch plates will come out of the housing with the hub assembly. |
| 3 | 4-5-6 Clutch Backing Plate |
| 4 | 4-5-6 Clutch Plate (Qty: 6) |
| 5 | 4-5-6 Clutch (w/Friction Material) Plate Assembly (Qty:6) |
| 6 | 4-5-6 Clutch Hub Thrust Bearing Assembly
NOTE:
The bearing may stick to the reaction carrier hub. |
