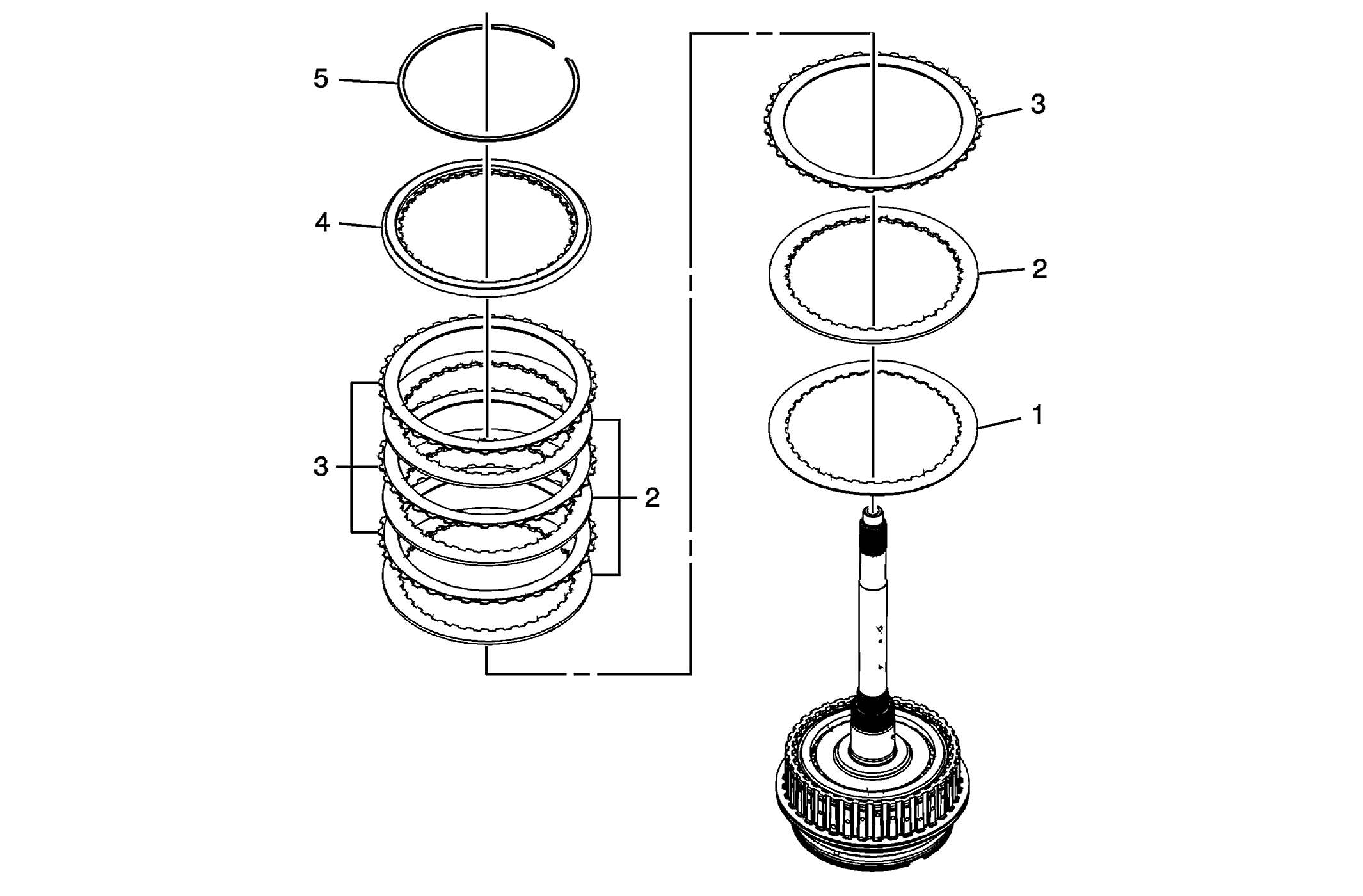

3-5 Reverse Clutch Plates Installation
Courtesy of GENERAL MOTORS COMPANY 3-5 Reverse Clutch Plates Installation
| Callout |
Component Name |
| 1 |
3-5 Reverse Clutch (Waved) Plate |
| 2 |
3-5 Reverse Clutch Plate (Qty:4) |
| 3 |
3-5 Reverse Clutch (w/Friction Material) Plate Assembly (Qty:4) |
| 4 |
3-5 Reverse Clutch Backing Plate |
| 5 |
3-5 Reverse Clutch Backing Plate Retaining Ring |
