Rear Toe Adjustment (GNE)

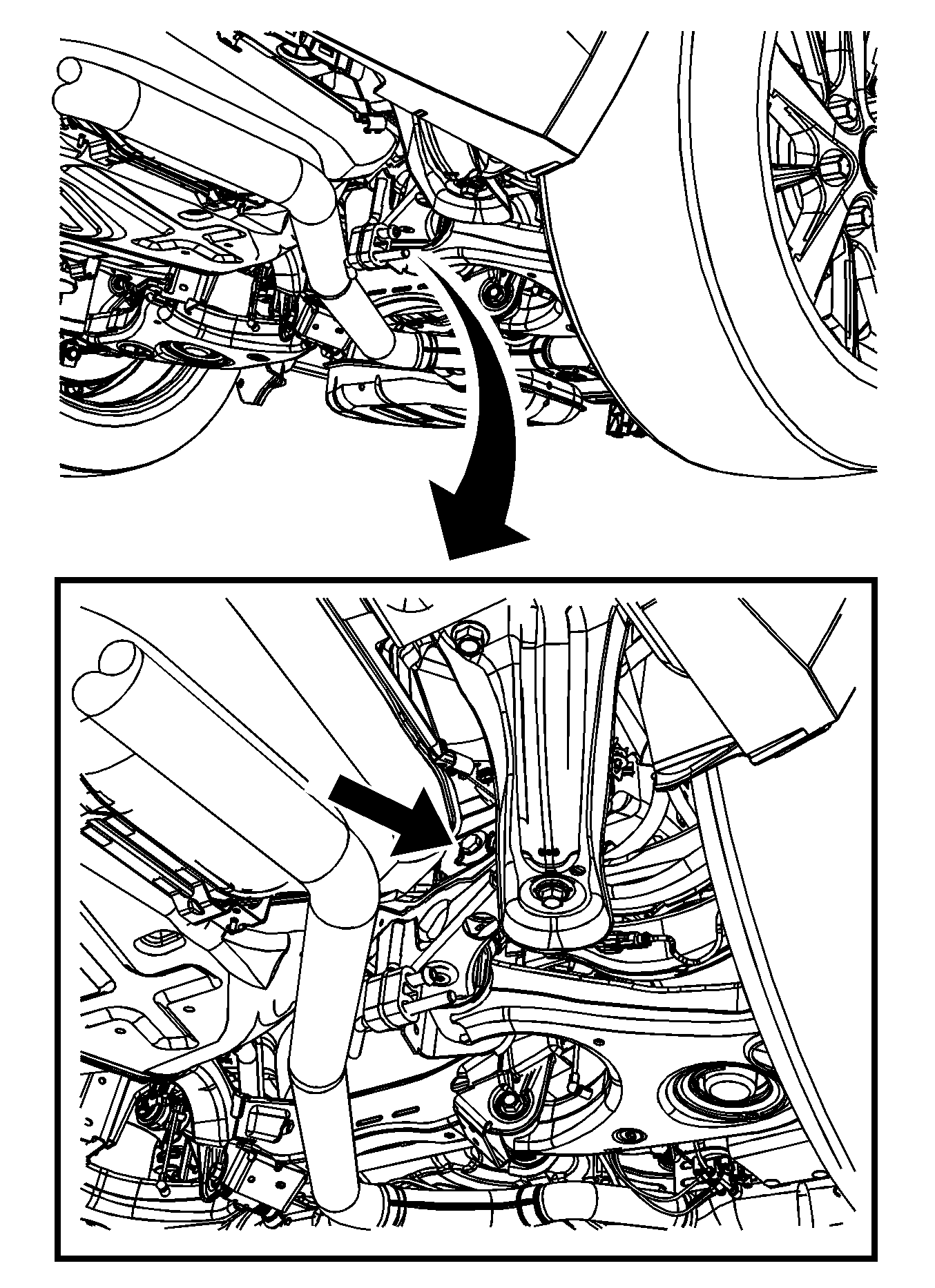

    Fig 1: Rear Toe Angle Adjustment
    GM2966161Courtesy of GENERAL MOTORS COMPANY
  1. Measure the alignment on an alignment rack. Refer to Wheel Alignment Measurement .
  2. If adjustment is necessary, loosen rear cam bolt and nut.
  3. Rotate the cam bolt in order to adjust the toe angle. Refer to Wheel Alignment Specifications .
  4. Hand tighten the cam nut, but do not tighten the nut to the specification yet.
  5. Re-inspect the rear toe angle and adjust as necessary.
  6. Hold the cam bolt in position and tighten the nut.

    Tighten

    150 N.m (111 lb ft)

  7. Repeat the procedure for the other rear wheel.
  8. Lower the vehicle.
