Measuring the Z Dimension

Measurement Definitions

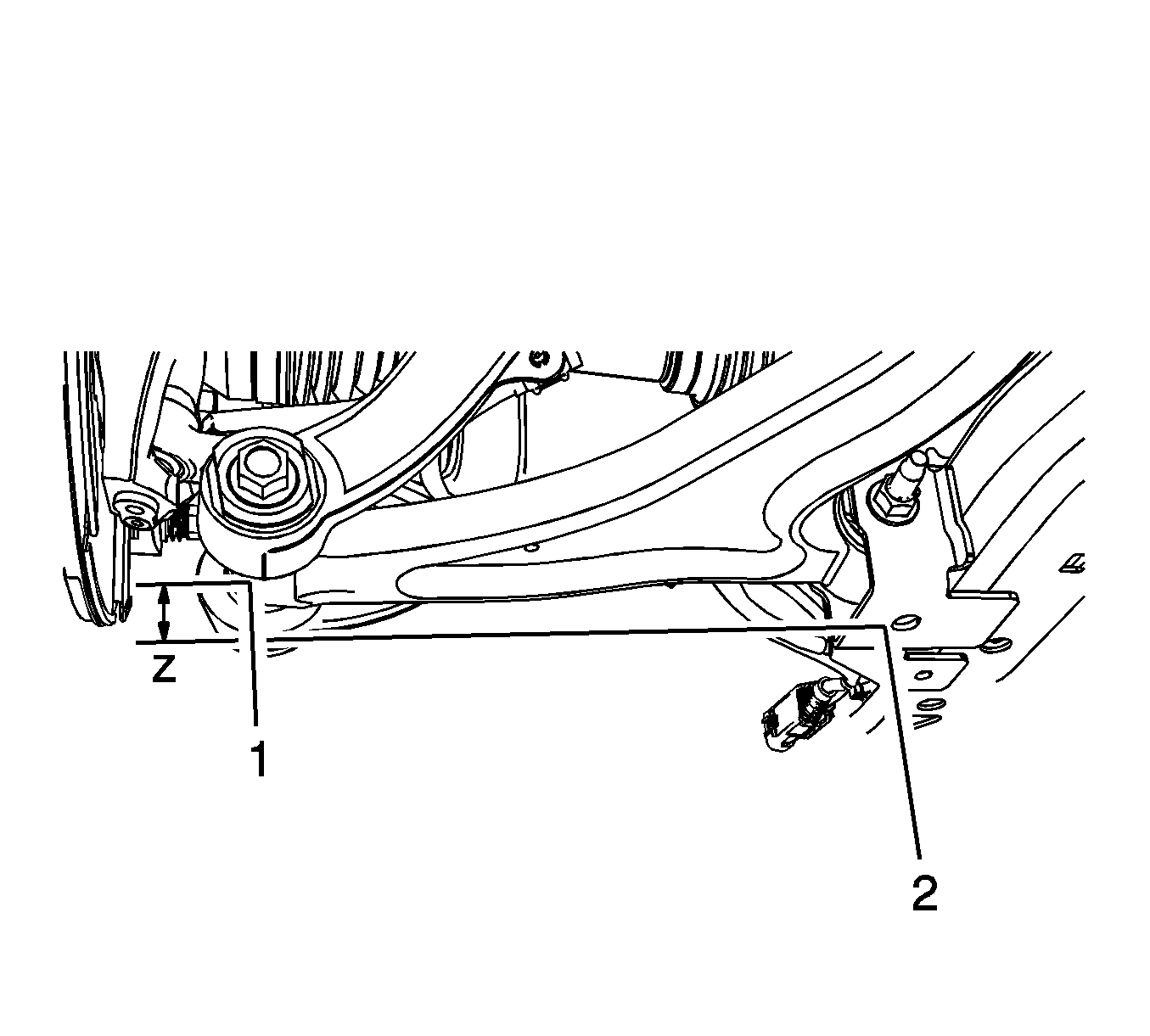

Fig 1: Z Dimension

Courtesy of GENERAL MOTORS COMPANY

Z Height: The vertical distance between the bottom surface of the cradle bracket (2) in line with the outer measurement and the lowest point on the surface of the lower control arm at the knuckle (1).

Use the following procedures to measure the Z dimensions:

NOTE:

The left and right Z height differences should be no more than 10 mm (.39 in).

1. Push the front bumper down a minimum of 25 mm (1 in). Perform this step three times.
2. Measure and record the trim height per the "Measurement Definitions" above.
3. Lift the front bumper a minimum of 25 mm (1 in). Perform this step three times.
4. Measure and record the trim height per the "Measurement Definitions" above.
5. The true Z height dimension is the average of the measurements taken in steps 2 & 4. Refer to Trim Height Specifications .
6. If these measurements are out of specifications, inspect for the following conditions:
   • Worn or damaged suspension components
   • Collision damage
