Rear Suspension Control Arm Bushing Replacement

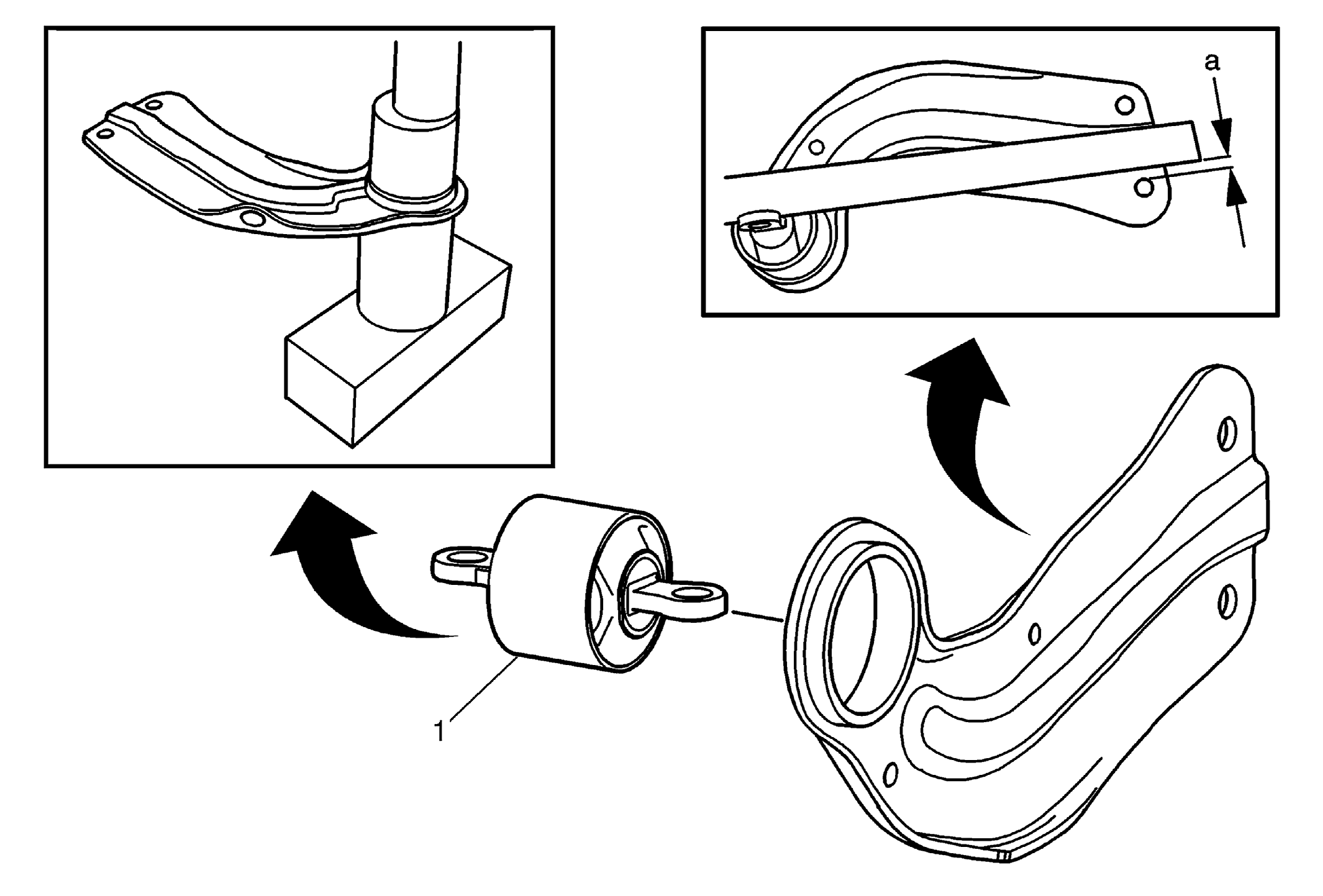

Fig 1: Rear Suspension Control Arm Bushing

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle . Remove the rear suspension control arm. Refer to Rear Suspension Control Arm Replacement .
1	Rear Suspension Control Arm Bushing Procedure Using the CH-21474 kit , install the rear suspension control arm bushing. Adjust the rear suspension control arm bushing 18.7 mm from center of hole, when parallel to bushing console with the J-21474 kit. Special Tools CH-21474 Remover/Installer Kit For equivalent regional tools, refer to Special Tools .

Callout

Component Name

Preliminary Procedures

Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle .
Remove the rear suspension control arm. Refer to Rear Suspension Control Arm Replacement .

Rear Suspension Control Arm Bushing

Procedure

Using the CH-21474 kit , install the rear suspension control arm bushing.
Adjust the rear suspension control arm bushing 18.7 mm from center of hole, when parallel to bushing console with the J-21474 kit.

Special Tools
CH-21474 Remover/Installer Kit
For equivalent regional tools, refer to Special Tools .
