Installation Procedure

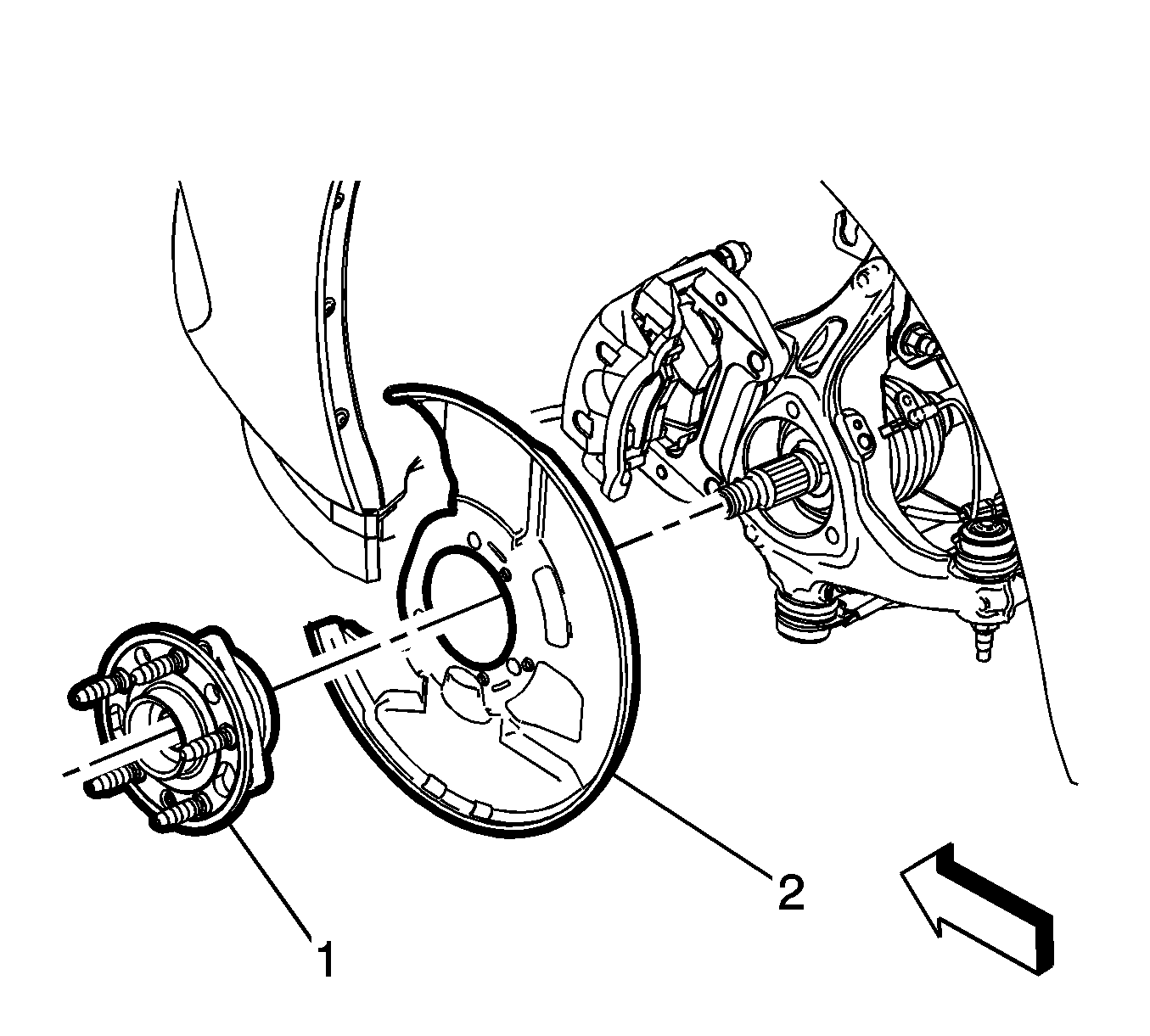

    Fig 1: Front Wheel Bearing And Hub Assembly With Front Brake Shield
    GM2911109Courtesy of GENERAL MOTORS COMPANY
  1. Position the front brake shield (2) and wheel bearing and hub assembly (1) on the steering knuckle.

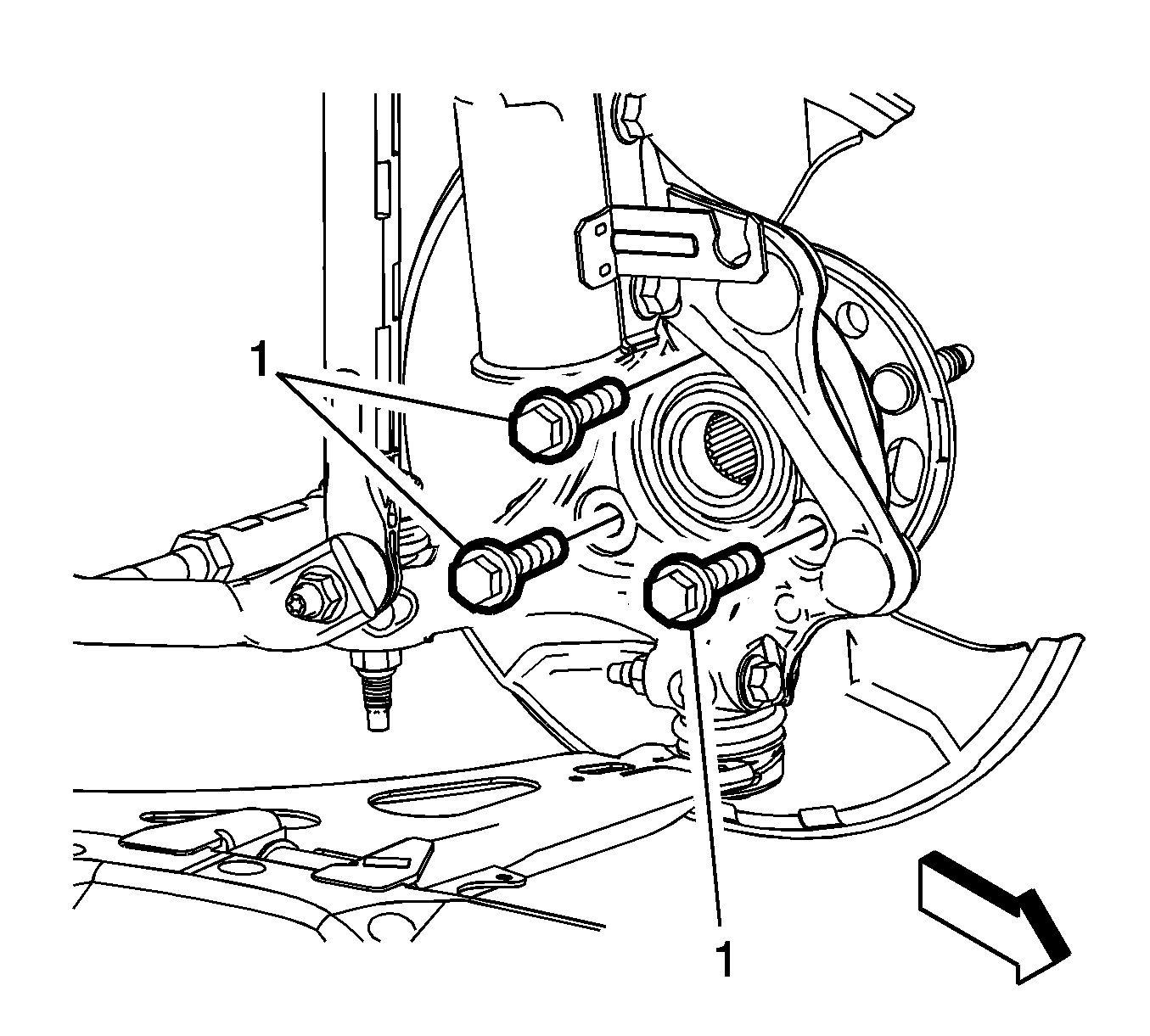

    2. Fig 2: Front Wheel Bearing And Hub Assembly
    GM2911108Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the front wheel bearing and hub assembly bolts (1) and tighten to 100 N.m (74 lb ft) +75 degrees.
  3. Install the front wheel speed sensor. Refer to Front Wheel Speed Sensor Replacement (Without F45) or Front Wheel Speed Sensor Replacement (With F45) .
  4. Install the front brake rotor. Refer to Front Brake Rotor Replacement (J60, J61) Or Front Brake Rotor Replacement (J64) .
  5. Connect the front wheel drive shaft to the front wheel bearing and hub assembly. Refer to Front Wheel Drive Shaft Replacement - Left Side , or Front Wheel Drive Shaft Replacement - Right Side .
  6. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
