Electronic Suspension Control Wiring Schematics: Sensors

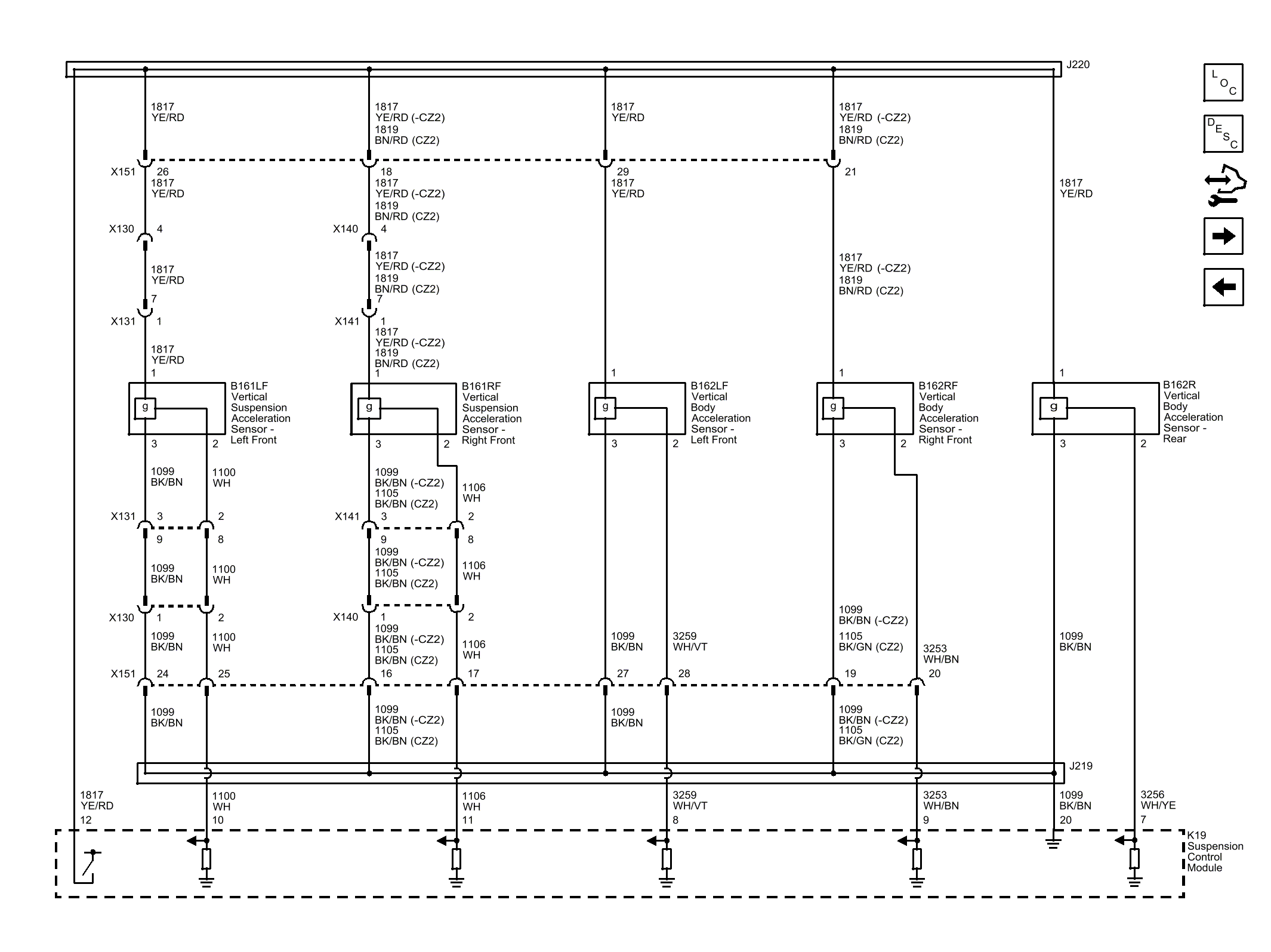

Fig 1: Sensors

GM3770300

Courtesy of GENERAL MOTORS COMPANY
